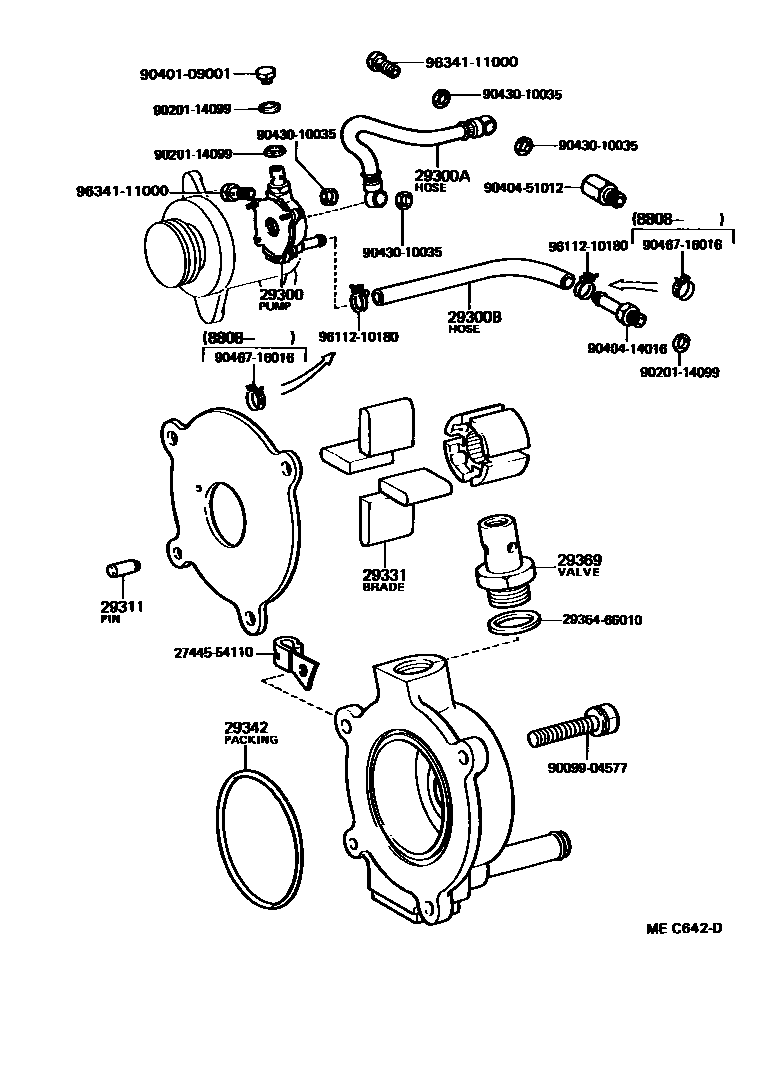

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54050i2L..LH8#198508-198910

main29300-54051i2L..LH80;2L..LH85..D199101-199505

main29300-54070i2L..LH85..N198910-199101

main29300-54071i2L..LH85..N199101-199505

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LH8#198508-198910

L=245

main90923-02111i2L..LH85..N198910-198911

L=255

main90923-02112i2L..LH85..N198911-199505

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LH8#198808-199505

main90923-02076i2L..LH8#198508-198808

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LH8#198804-199505

main90099-08082i2L..LH8#198508-198804

29331BLADE, VACUUM PUMP, A

main29331-56070×4i2L..LH80;2L..LH85..D198910-199505

main29331-78010×4i2L..LH85..N198910-199505

29342PACKING, VACUUM PUMP

main96740-02063i2L..LH8#198508-199505

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LH8#198508-199505

2744554110

main27445-54110

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040414016

main90404-14016

9040451012

main90404-51012

9043010035

main90430-10035

9046716016

main90467-16016

9611210180

main96112-10180

9634111000

main96341-11000

18 parts on this diagram · 1 diagram in section
