STARTER

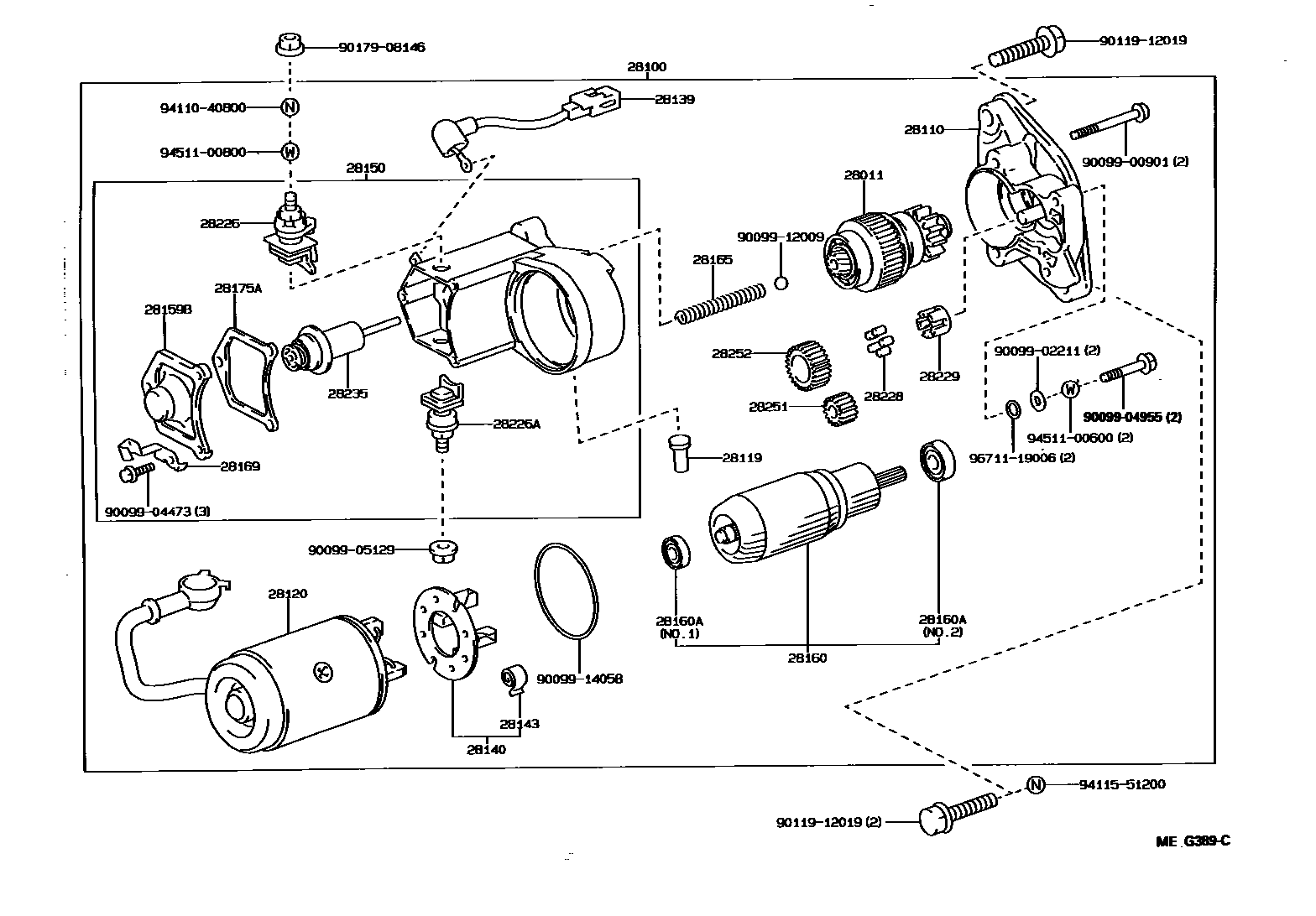

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-54010i198508-198804

12V 2.5KW

main28011-54070i198508-198804

12V 2.0KW

main28011-54380i199309-199505

28100STARTER ASSY

main28100-54110i198508-198804

main28100-54120i198804-198808

main28100-54160i198808-198910

main28100-54290i199109-199309

main28100-54300i199109-199309

main28100-54400i199309-199505

main28100-54430i199309-199505

28110HOUSING ASSY, STARTER DRIVE

main28110-54380i199309-199505

main28115-54011i198508-198804

12V 2.5KW

main28115-54070i198508-198804

12V 2.0KW

28119COVER, STARTER END FRAME

main28119-47070i198808-199109

main28119-54070i198804-198806

main28199-54190i199109-199505

main28199-74110i199309-199505

main28199-77090i198508-198804

12V 2.5KW

28120YOKE ASSY, STARTER

main28120-54070i198508-198804

12V 2.0KW

main28120-54380i199309-199505

main28120-56081i198804-199309

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54070i198804-199309

main28139-54380i199309-199505

main28139-77110i198804-198808

28140HOLDER ASSY, STARTER BRUSH

main28140-54070i198804-199309

main28140-54380i199309-199505

main28140-77090i198804-199309

28143SPRING, STARTER BRUSH

main28143-54380×4i199309-199505

main90099-17115×4i198508-198804

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-54110i198508-198804

12V 2.0KW

main28150-54120i198808-198910

main28150-54160i198910-199309

main28150-54400i199309-199505

main28150-54430i199309-199505

28159BCOVER, MAGNET SWITCH

main28159-54170i198804-199309

main28159-54380i199309-199505

main28159-56310i198808-198910

28160ARMATURE ASSY, STARTER

main28160-54070i198804-198908

main28160-54071i198908-199309

main28160-54120i198804-198808

main28160-54160i198808-199505

main28160-54380i199309-199505

28160ABEARING, STARTER ARMATURE

main28253-54070i198508-198804

12V 2.0KW,NO.1

main90099-10131i198508-198804

12V 2.0KW,NO.2; 12V 2.5KW,NO.1

main90099-10197i199309-199505

main90099-10208i199309-199505

main90099-54120i199309-199505

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i198804-199309

main28165-76070i199309-199505

main28165-77090i198804-199505

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-54070i198804-199309

main28169-54380i199309-199505

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i198804-199309

main28175-54380i199309-199505

main28175-56310i198808-199505

28226STARTER KIT, BATTERY TERMINAL

main28226-54300i198910-199109

main28226-54360i198804-199309

main28226-54400i199309-199505

main28226-56270i199109-199309

main28226-56330i199309-199505

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54100i198804-199101

main28226-54220i199109-199505

main28226-72010i199101-199505

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i198508-198804

12V 2.0KW

main28228-56080×5i198804-199505

28229RETAINER, STARTER IDLE GEAR

main28229-26040i198508-198804

12V 2.0KW

main28229-56080i198804-199505

main28229-74070i199309-199505

28235PLUNGER, MAGNET SWITCH

main28235-17030i198808-198910

main28235-35080i198804-199309

main28235-54380i199309-199505

28251PINION, STARTER DRIVE

main28251-54070i198508-198804

12V 2.0KW

main28254-54380i199309-199505

28252GEAR, STARTER IDLE

main28254-54070i198508-198804

12V 2.0KW

main28254-64130i199309-199505

main28254-77090i198804-199505

9009900901

main90099-00901

9009902211

main90099-02211

9009904473

main90099-04473

9009904955

main90099-04955

9009905129

main90099-05129

9009912009

main90099-12009

9009914058

main90099-14058

9011912019

main90119-12019

9017908146

main90179-08146

9411040800

main94110-40800

9411551200

main94115-51200

9451100600

main94511-00600

9451100800

main94511-00800

9671119006

main96711-19006

36 parts on this diagram · 4 diagrams in section
