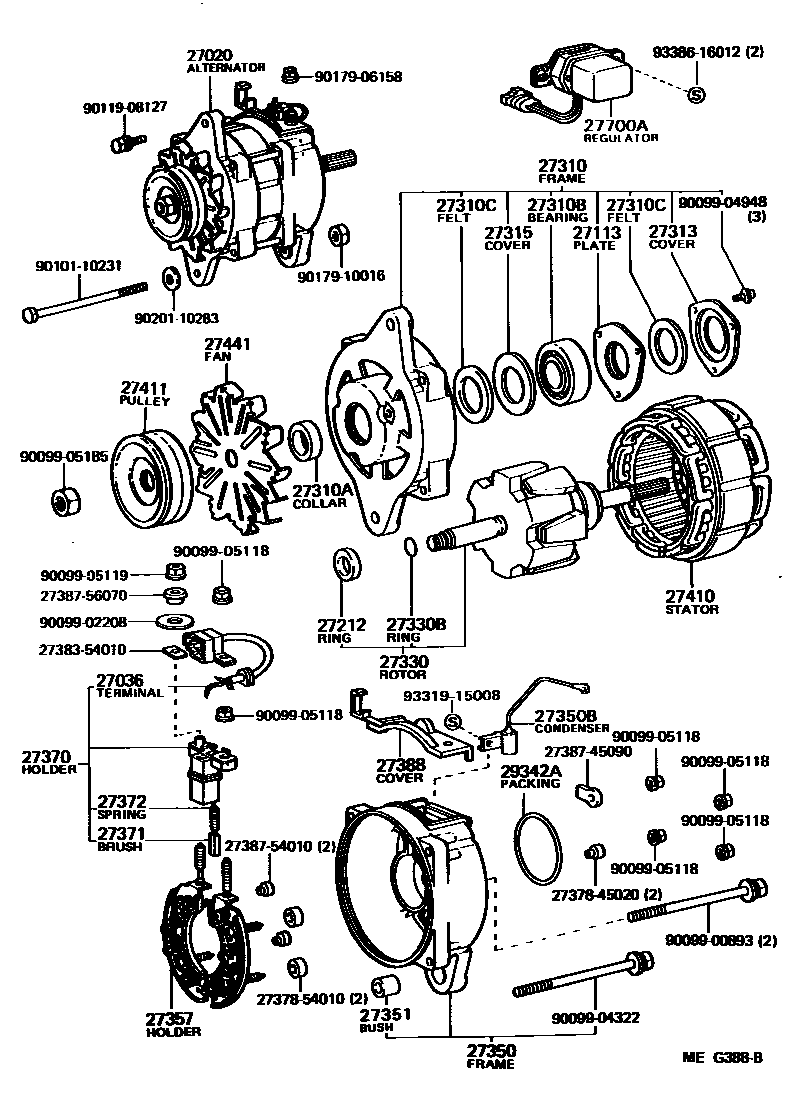

ALTERNATOR

0001 112V 45A 0004 112V 45A 0005 112V 60A

27020ALTERNATOR ASSY

main27020-54200i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

main27020-54320i2L..LH80..5H..N198804-198808

main27020-54380i2L..LH80..4HC;2L..LH80..5H..D198808-198910

main27020-54381i2L..LH80..4HC;2L..LH8#..5H..D199101-199106

main27020-54382i2L..LH80..4HC;2L..LH8#..5H..D199106-199202

main27020-54383i2L..LH80..4HC;2L..LH8#..5H..D199202-199505

main27020-54390i2L..LH85..N198910-199101

main27020-54391i2L..LH85..N199101-199106

main27020-54392i2L..LH85..N199106-199202

main27020-54393i2L..LH85..N199202-199505

main27020-54410i2L..LH80..5H..N198808-198908

main27020-54411i2L..LH80..5H..N198908-199101

main27020-54412i2L..LH80..5H..N199101-199202

main27020-54413i2L..LH80..5H..N199202-199505

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-54010i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

main27036-54320×2i2L..LH80..5H..N198804-198808

main27036-54410i2L..LH80..5H..N198908-199505

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-57060i2L..LH8#198804-199505

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2L..LH8#198508-198804

12V 45A,60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54110i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

main27310-54111i2L..LH80..4HC;2L..LH8#..5H..D199202-199505

main27310-54130i2L..LH80..5H..N198804-198910

main27310-54131i2L..LH80..5H..N199202-199505

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-57060i2L..LH8#198508-198804

12V 45A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2L..LH85;2L..LH80..5H..N198808-198910

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02209×2i2L..LH8#198508-198804

12V 45A,60A

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-57060i2L..LH8#198508-198804

12V 45A,60A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-57060i2L..LH8#198508-198804

12V 45A,60A

27330ROTOR ASSY, ALTERNATOR

main27330-54200i2L..LH85;2L..LH80..4HC;2L..LH80..5H..D198804-198808

main27330-54201i2L..LH80..4HC;2L..LH8#..5H..D199101-199202

main27330-54202i2L..LH80..4HC;2L..LH8#..5H..D199202-199505

main27330-54260i2L..LH85..N198910-199101

main27330-54261i2L..LH85..N199101-199505

main27330-54270i2L..LH80..5H..N199202-199505

main27330-64170i2L..LH80..5H..N198804-199101

main27330-64171i2L..LH80..5H..N199101-199202

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103i2L..LH8#198508-198804

12V 45A,60A

27350FRAME ASSY, RECTIFIER END

main27350-54130i2L..LH8#..5H..N198910-199505

main27350-54190i2L..LH85;2L..LH80..4HC;2L..LH80..5H..D198804-198910

27350BCONDENSER, ALTERNATOR

main90099-52082i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-56013i2L..LH8#198508-198804

12V 45A,60A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-54190i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-54010i2L..LH80198508-198708

12V 45A

main27370-54250i2L..LH85;2L..LH80..4HC;2L..LH80..5H..D198804-198910

27371BRUSH, ALTERNATOR

main27371-56070×2i2L..LH8#198508-198804

12V 45A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i2L..LH8#198508-198804

12V 45A,60A

27388COVER, ALTERNATOR BRUSH

main27388-54200i2L..LH85;2L..LH80..4HC;2L..LH80..5H..D198804-198910

main27388-54320i2L..LH80..5H..N198804-198908

main27388-54341i2L..LH80..4HC;2L..LH8#..5H..D199106-199505

main27388-54410i2L..LH80..5H..N198908-199505

main27388-64010i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

27410STATOR ASSY, ALTERNATOR

main27410-43040i2L..LH80..5H..N198708-198804

12V 60A

main27410-64090i2L..LH80..4HC; 2L..LH80..5H..D198708-198804

12V 45A

27411PULLEY, ALTERNATOR

main27411-54170i2L..LH8#198804-198808

main27411-54350i2L..LH8#198910-199202

main27411-54351i2L..LH80;2L..LH85..D199202-199505

27441FAN, ALTERNATOR

main27441-56090i2L..LH80198508-198708

12V 45A

main27441-64030i2L..LH80..5H..N198708-198804

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-35030i2L..LH80198508-198708

main27700-64040i2L..LH80..5H..N198708-198910

29342APACKING, VACUUM PUMP

main90099-14055×2i2L..LH8#198804-198808

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-54010

2738745090INSULATOR, TERMINAL

main27387-45090

2738754010INSULATOR, TERMINAL

main27387-54010

2738756070INSULATOR, TERMINAL

main27387-56070

9009900893

main90099-00893

9009902208

main90099-02208

9009904322

main90099-04322

9009904948

main90099-04948

9009905118

main90099-05118

9009905119

main90099-05119

9009905185

main90099-05185

9010110231

main90101-10231

9011908127

main90119-08127

9017906158

main90179-06158

9017910016

main90179-10016

9020110283

main90201-10283

9331915008

main93319-15008

9338616012

main93386-16012

45 parts on this diagram · 3 diagrams in section
