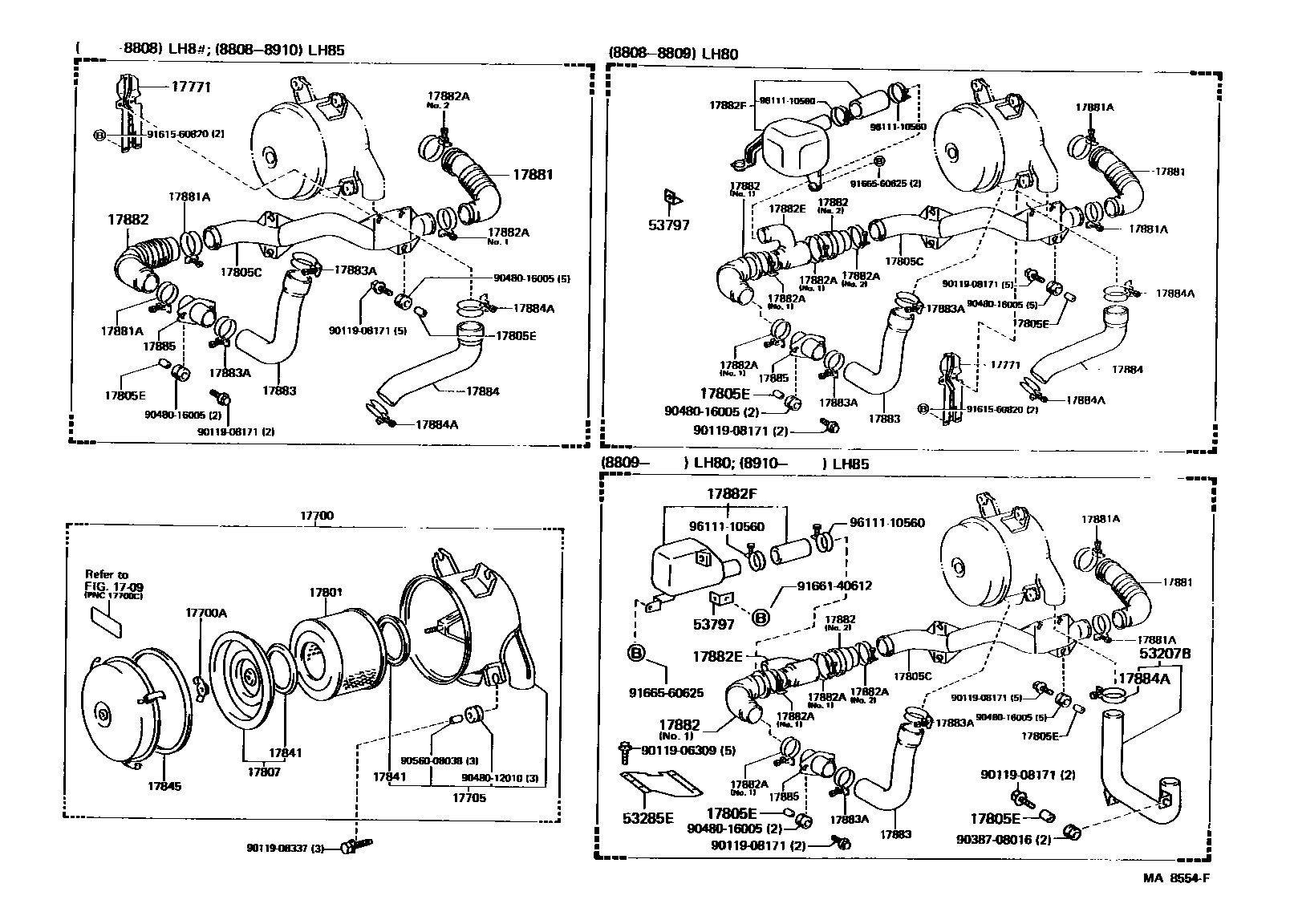

AIR CLEANER

1709

17700CLEANER ASSY, AIR

main17700-54410i2L..LH8#198508-199505

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2L..LH8#198508-199505

17705CAP SUB-ASSY, AIR CLEANER

main17701-54210i2L..LH80198808-198910

main17705-54190i2L..LH8#198508-198804

17771BRACKET, AIR CLEANER INLET DUCT

main17771-54020i2L..LH80198508-198804

main17771-54030i2L..LH85198804-199505

main17771-54040i2L..LH80198808-199301

main17771-54041i2L..LH80199301-199505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i2L..LH8#198508-199505

17805CPIPE SUB-ASSY, AIR CLEANER, NO.1

main59111-90D00i2L..LH80198508-198808

main59111-90D01i2L..LH85198711-198910

main59111-90D02i2L..LH80198808-199505

main59111-90D03i2L..LH85198910-199505

17805ECOLLAR(FOR INTAKE AIR CONNECTOR)

main90387-08016×7i2L..LH8#198508-198809

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i2L..LH8#198508-199505

17841GASKET, FILTER ELEMENT

main17841-44030×2i2L..LH8#198508-199505

17845GASKET, AIR CLEANER CAP

main17845-56020i2L..LH8#198508-199505

17881HOSE, AIR CLEANER, NO.1

main17881-54290i2L..LH8#198508-198808

main17881-54390i2L..LH8#198910-199011

main17881-54391i2L..LH8#199011-199505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i2L..LH8#198508-198804

ENGINE SIDE

main96111-10710i2L..LH8#198804-198808

PIPE SIDE

main96111-10830i2L..LH80198808-198910

main96111-10850i2L..LH80198808-199505

PIPE SIDE

17882HOSE, AIR CLEANER, NO.2

main17881-56060i2L..LH8#198508-198808

main59133-90D00i2L..LH80198808-199505

main59134-90D00i2L..LH80198808-199505

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10710×2i2L..LH85198808-198811

main96111-10750i2L..LH80198808-198809

main96111-10780i2L..LH80198809-199505

main96111-10800i2L..LH80..5H198508-198611

NO.1

main96111-10850i2L..LH85198910-199505

17882EPIPE, COOL AIR INTAKE, NO.2

main59112-90D00i2L..LH80198808-199505

17882FSILENCER SUB-ASSY, COOL AIR INTAKE

main53205-90D00i2L..LH80198808-198910

17883HOSE, AIR CLEANER, NO.3

main59131-90D00i2L..LH8#198508-198912

main59131-90D01i2L..LH8#198912-199505

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10730i2L..LH8#198508-198804

PIPE SIDE

main96111-10750i2L..LH8#198912-199505

PIPE SIDE

main96111-10780i2L..LH8#198804-198912

AIR CLEANER SIDE

main96111-10800i2L..LH8#198912-199505

AIR CLEANER SIDE

17884HOSE, AIR CLEANER, NO.4

main59132-90D00i2L..LH8#198508-198809

17884ACLAMP(FOR AIR CLEANER HOSE, NO.4)

main96111-10710i2L..LH8#198508-198804

BODY SIDE

main96111-10750i2L..LH8#198809-199505

main96111-10780i2L..LH8#198804-198809

AIR CLEANER SIDE

main96111-10800i2L..LH80..5H198508-198611

AIR CLEANER SIDE

17885PIPE, AIR CLEANER

main53297-90D00i2L..LH8#198508-199505

53207BDUCT SUB-ASSY, COOL AIR

main53207-90D00iLH8#198809-199505

53285EGUARD, COOL AIR

main53285-26010iLH8#199309-199505

main53285-90D00iLH8#198809-198903

main53285-90D01iLH8#198903-199309

53797BRACKET, COOL AIR INTAKE SILENCER

main53797-90D00iLH80198808-198910

9011906309

main90119-06309

9011908171

main90119-08171

9011908337

main90119-08337

9038708016

main90387-08016

9048012010

main90480-12010

9048016005

main90480-16005

9056008038

main90560-08038

9161560820

main91615-60820

9166140612

main91661-40612

9166560625

main91665-60625

9611110560

main96111-10560

36 parts on this diagram · 1 diagram in section
