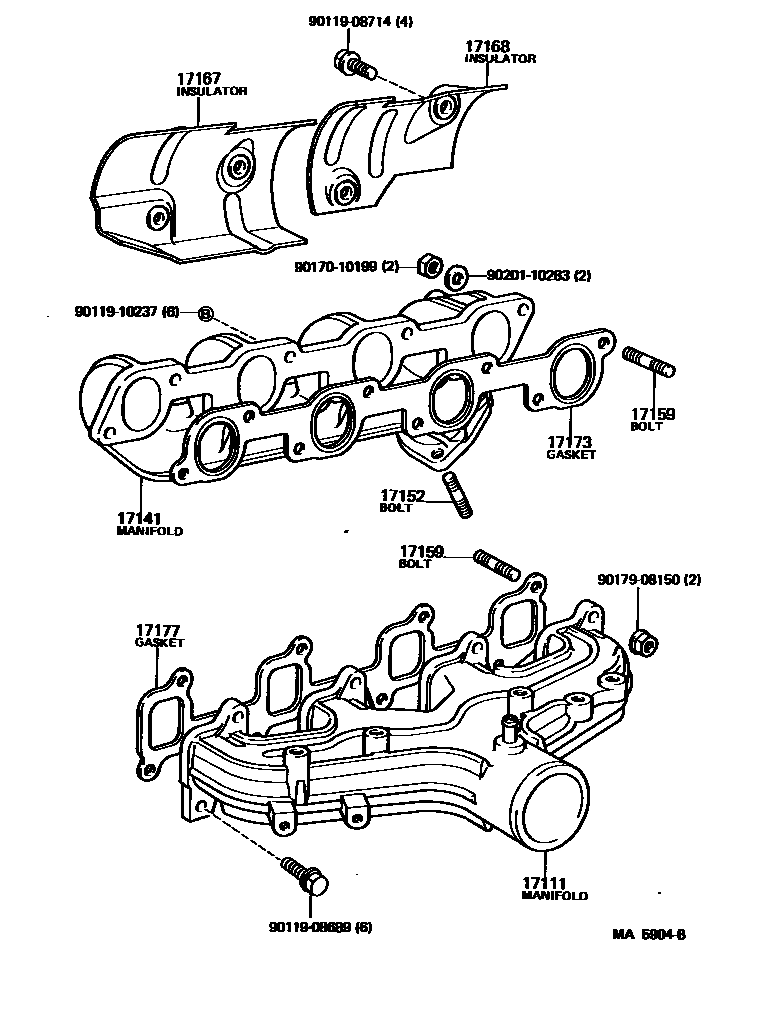

MANIFOLD

0001 1 0003 1

17111MANIFOLD, INTAKE

main17101-54030i2L..LH8#198508-198910

main17101-54110i2L..LH80198808-199505

17141MANIFOLD, EXHAUST

main17141-54040i2L..LH8#198508-198910

main17141-54110i2L..LH80198808-199505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i2L..LH8#198508-199505

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i2L..LH8#198508-199505

INTAKE MANIFOLD

main90116-10091i2L..LH80..5H198508-198706

EXHAUST MANIFOLD

sub90116-10141

main90116-10141i2L..LH8#198706-199505

EXHAUST MANIFOLD

main92132-60820i2L..LH8#199204-199301

INTAKE MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54041i2L..LH8#198508-198910

sub17167-54042

main17167-54070i2L..LH80198808-199505

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-54011i2L..LH85198508-198910

sub17168-54012

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54011i2L..LH8#198508-198910

sub17173-54012

main17173-54030i2L..LH80198808-199505

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54012i2L..LH8#198508-198910

main17177-54020i2L..LH80198808-199505

sub17177-54021

9011908689

main90119-08689

9011908714

main90119-08714

9011910237

main90119-10237

9017010199

main90170-10199

9017908150

main90179-08150

9020110283

main90201-10283

14 parts on this diagram · 2 diagrams in section
