V-BELT

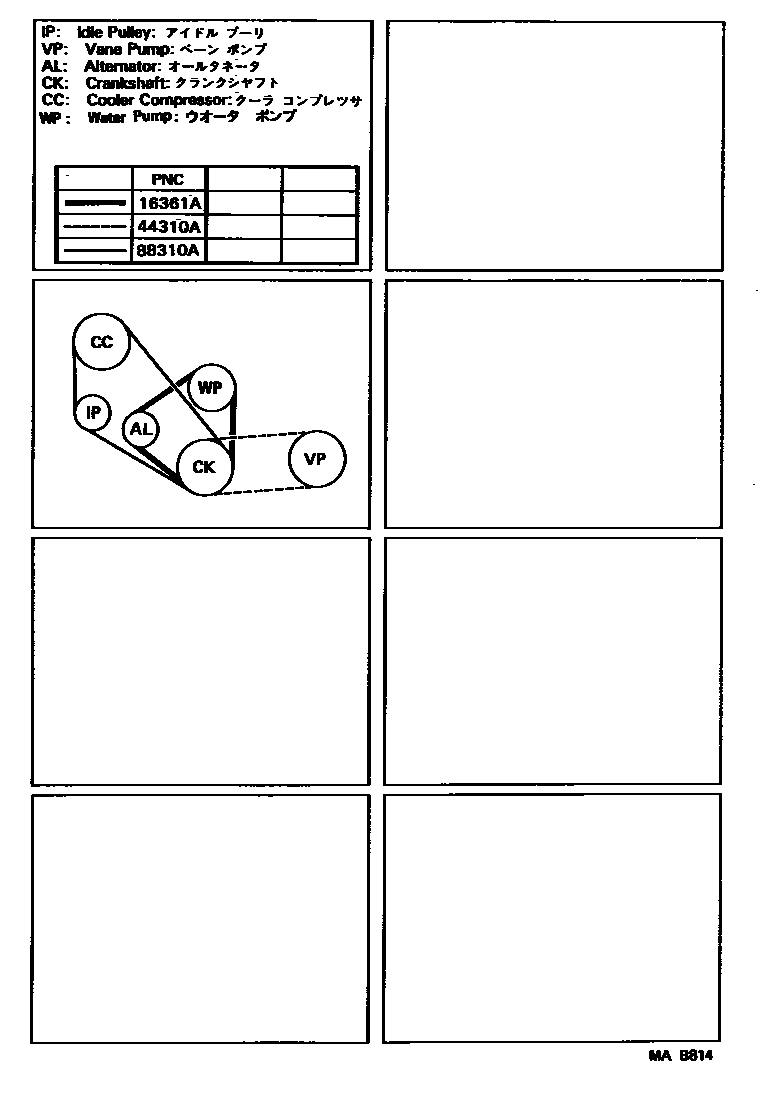

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i198804-198808

main90916-02162i198804-198909

main90916-02209i198808-199505

main90916-02235i198910-199505

main90916-02283i198909-198910

44310ABELT, V(FOR VANE PUMP)

main99332-00850i198508-199505

main99332-00885i198804-199505

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-01240i198711-198910

main99332-01255i198910-199201

main99332-01260i198508-198808

main99332-11255i199201-199505

main99332-11265i198808-199505

3 parts on this diagram · 1 diagram in section
