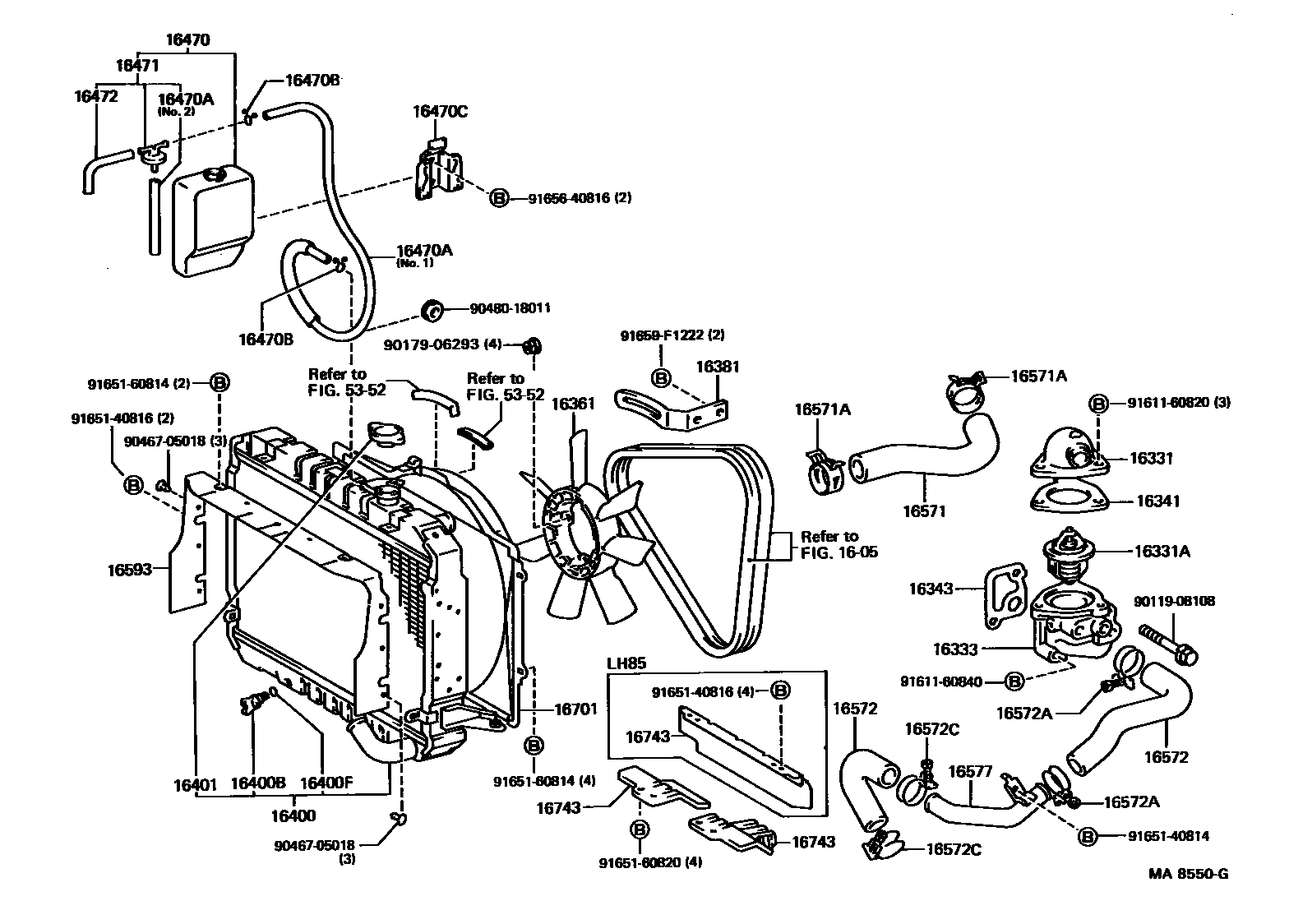

RADIATOR & WATER OUTLET
1605
16361FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
sub16401-54750
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37003
16572HOSE, RADIATOR, OUTLET
PUMP SIDE
WATER PUMP SIDE
WATER PUMP SIDE
PUMP SIDE
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
PUMP SIDE
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
PIPE SIDE
PUMP SIDE
16577PIPE, RADIATOR, NO.7
16593GUIDE, RADIATOR AIR, NO.1
16701SHROUD SUB-ASSY, FAN
16743PROTECTOR, FAN SHROUD
RH
LH
5352
9011908108
main90119-08108
9017906293
main90179-06293
9046705018
main90467-05018
9048018011
main90480-18011
9161160820
main91611-60820
9161160840
main91611-60840
9165140814
main91651-40814
9165140816
main91651-40816
9165160814
main91651-60814
9165160820
main91651-60820
9165640816
main91656-40816
91659F1222
main91659-F1222
40 parts on this diagram · 2 diagrams in section
