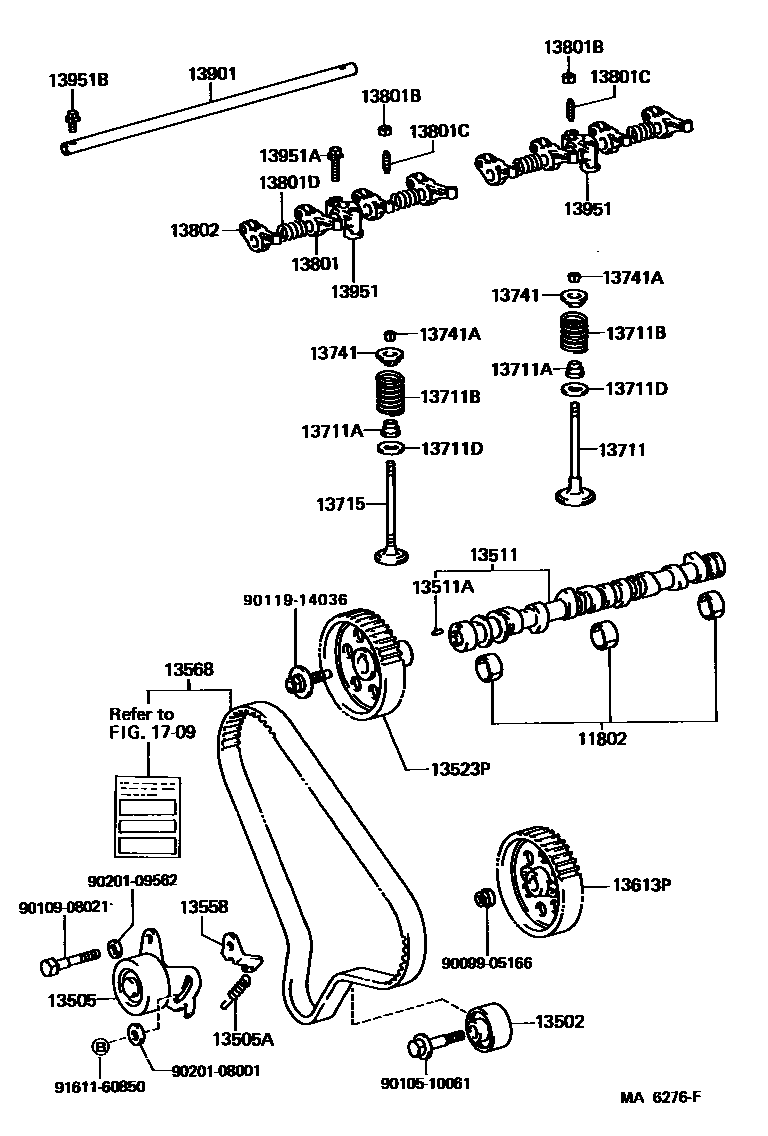

CAMSHAFT & VALVE

0001 1 0003 1

11802BEARING SET, CAMSHAFT

main11802-54010i2L..LH8#198508-198804

main11802-54020i2L..LH80198808-198910

main11803-54010i2L..LH85198808-198910

main11803-54020i2L..LH8#198910-199505

main11804-54010i2L..LH8#198508-198804

main11804-54020i2L..LH80198808-198910

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54020i2L..LH8#198508-198808

main13503-54030i2L..LH80198808-198910

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010i2L..LH8#198508-198808

main13505-54020i2L..LH80198808-198910

main13505-54021i2L..LH8#199111-199505

13505ASPRING, TENSION(FOR IDLER)

main90506-14038i2L..LH8#198508-198808

main90506-18060i2L..LH80198808-198910

13511CAMSHAFT

main13501-54020i2L..LH8#198508-198808

main13501-54050i2L..LH80198808-198910

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2L..LH8#198508-198804

13523PPULLEY, CAMSHAFT TIMING

main13523-54020i2L..LH8#198508-198808

main13523-54040i2L..LH80198808-198910

13558BRACKET, SPRING(FOR IDLER)

main13558-54010i2L..LH85198808-198910

main13558-54020i2L..LH80198808-198910

13568BELT, TIMING

main13568-54070i2L..LH8#198910-199205

main13568-59025i2L..LH8#198508-198808

main13568-59065i2L..LH8#199205-199505

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54020i2L..LH8#198508-198808

main13603-54030i2L..LH80198808-198910

13711VALVE, INTAKE

main13711-54010×4i2L..LH8#198508-198808

main13711-54020×4i2L..LH8#198910-199505

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053×8i2L..LH80198808-198910

main90913-02060×8i2L..LH8#198508-198808

13711BSPRING, COMPRESSION(FOR INNER)

main90501-44002×8i2L..LH85198808-198910

main90504-49001×8i2L..LH80198808-198910

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579×8i2L..LH8#198508-198808

main90201-23003×8i2L..LH80198808-198910

13715VALVE, EXHAUST

main13715-17010×4i2L..LH8#199003-199505

main13715-54010×4i2L..LH8#198508-198808

main13715-54040×4i2L..LH8#198910-199003

13741RETAINER, VALVE SPRING

main13741-54010×8i2L..LH8#198508-198808

main13741-54020×8i2L..LH80198808-198910

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i2L..LH8#198910-199505

main90913-03016×16i2L..LH85198808-198910

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-54020×4i2L..LH80198508-198708

main13801-54021×4i2L..LH8#198708-198808

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08005×8i2L..LH8#198508-198808

13801CSCREW, VALVE ADJUSTING

main90913-05019×8i2L..LH8#198508-198808

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16163×4i2L..LH8#198804-198808

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54020×4i2L..LH80198508-198708

main13802-54021×4i2L..LH8#198708-198808

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-54010i2L..LH8#198508-198808

13951SUPPORT, VALVE ROCKER, NO.1

main13951-54020×2i2L..LH8#198508-198808

13951ABOLT(FOR ROCKER SUPPORT SET)

main90119-08191×4i2L..LH8#198508-198804

*8-1.25PX55-30

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main91611-60620×2i2L..LH8#198508-198808

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9009905166

main90099-05166

9010510061

main90105-10061

9010908021

main90109-08021

9011914036

main90119-14036

9020108001

main90201-08001

9020109562

main90201-09562

9161160850

main91611-60850

34 parts on this diagram · 2 diagrams in section
