Toyota HIACE QUICK DELIVERY721 — MOUNTING

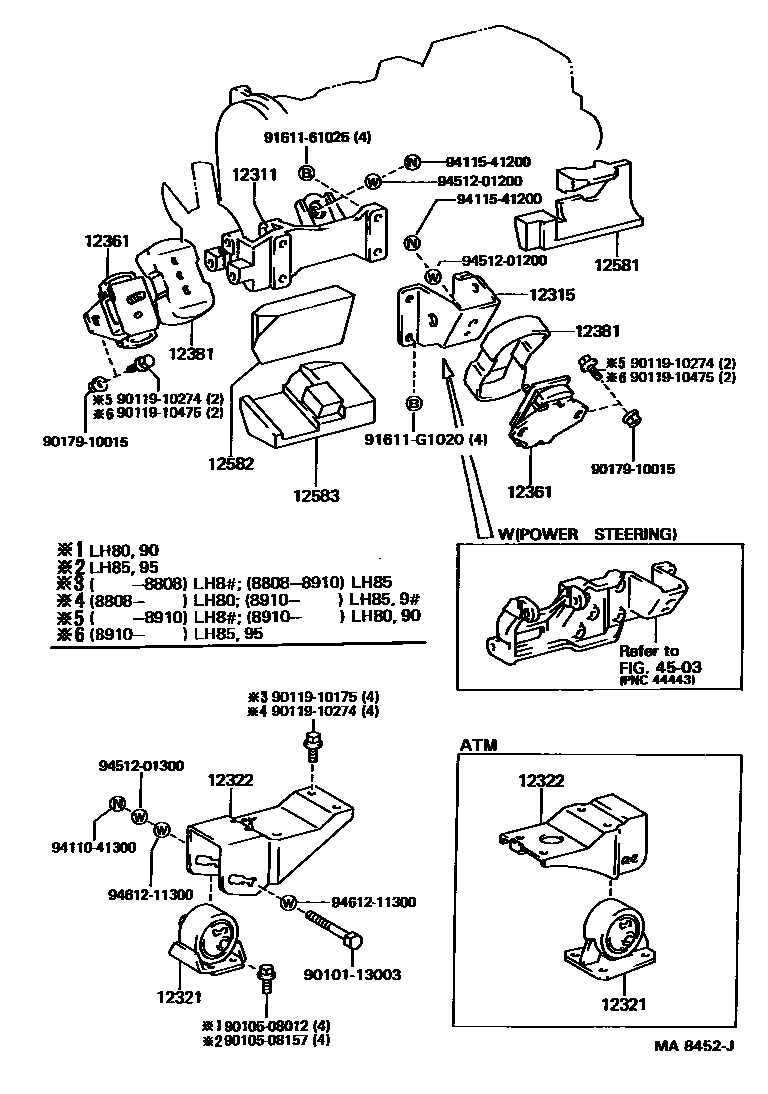

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

12322BRACKET, ENGINE MOUNTING, REAR NO.2

12361INSULATOR, ENGINE MOUNTING, FRONT

12381STABILIZER, ENGINE MOUNTING

12581INSULATOR, CYLINDER BLOCK, NO.1

12582INSULATOR, CYLINDER BLOCK, NO.2

12583INSULATOR, CYLINDER BLOCK, NO.3

4503POWER STEERING TUBE

→ Go to FIG 45-03

9010113003

9010508012

9010508157

9011910175

9011910274

9011910475

9017910015

9161161025

91611G1020

9411041300

9411541200

9451201200

9451201300

9461211300

24 parts on this diagram · 1 diagram in section

MOUNTING for Toyota HIACE QUICK DELIVERY721

This section contains 24 genuine Toyota parts for the MOUNTING system of the Toyota HIACE QUICK DELIVERY721. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, INSULATOR, ENGINE MOUNTING, FRONT.
