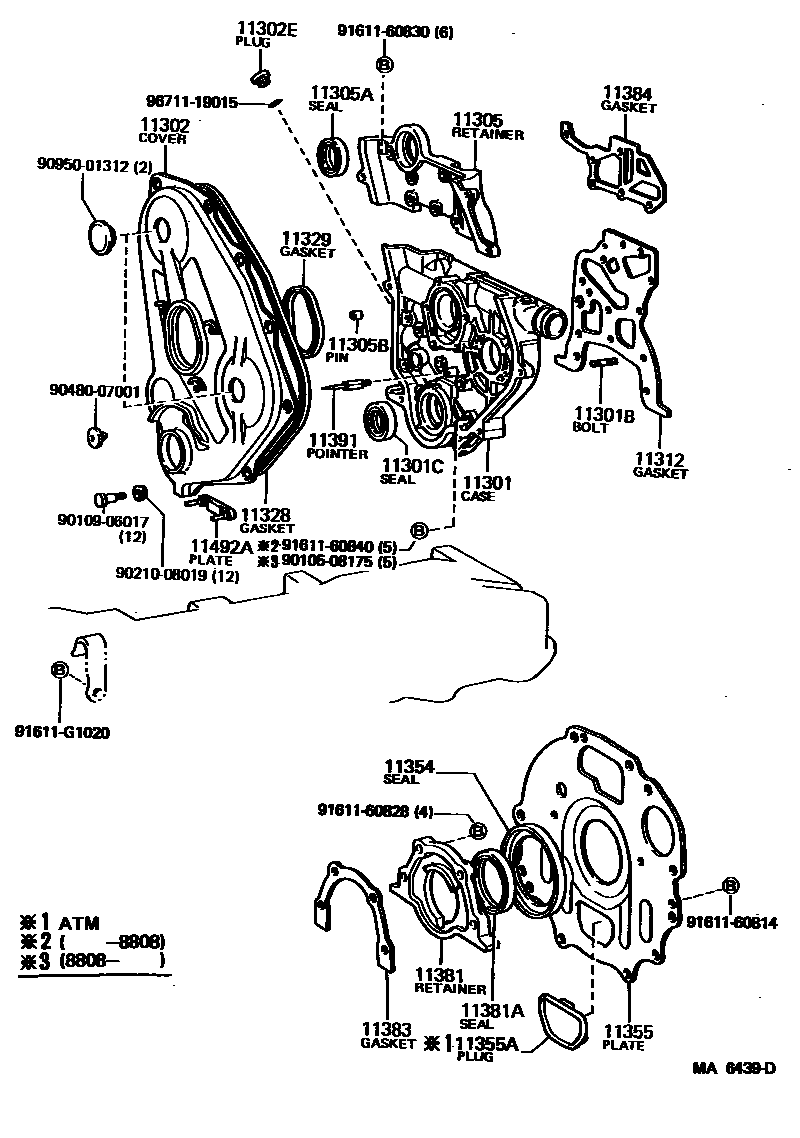

TIMING GEAR COVER & REAR END PLATE

0001 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54022i2L..LH8#198508-198808

main11311-54050i2L..LH80198808-198910

main11311-54051i2L..LH8#199108-199505

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i2L..LH8#198508-198804

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L..LH8#198508-199102

main90311-42026i2L..LH8#199102-199401

main90311-42030i2L..LH8#199401-199505

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54014i2L..LH8#198508-198808

main11321-54020i2L..LH80198808-198910

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L..LH8#198508-199505

11305RETAINER, OIL SEAL, NO.2

main11382-54010i2L..LH85198808-198910

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i2L..LH8#198910-199102

main90311-32017i2L..LH8#199102-199505

main90311-42003i2L..LH8#198508-198808

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2i2L..LH8#198508-198804

main90253-11021×2i2L..LH80198808-198910

11312GASKET, FRONT END PLATE

main11312-54013i2L..LH8#198508-198808

main11312-54021i2L..LH80198808-198910

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54010i2L..LH85198808-198910

main11328-54020i2L..LH80198808-198904

main11328-54021i2L..LH80198904-198910

11329GASKET, TIMING GEAR REAR COVER

main11329-54011i2L..LH85198808-198910

main11329-54020i2L..LH80198808-198904

main11329-54021i2L..LH80198904-198910

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LH8#198508-199505

11355PLATE, REAR END

main11355-54030i2L..LH80..5H198508-199505

main11355-54040i2L..LH80..4HC198708-199505

main11355-54080i2L..LH85198711-199505

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2L..LH80..4HC198708-199505

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54010i2L..LH8#198508-198808

main11381-54020i2L..LH8#198808-199505

11381ASEAL, ENGINE REAR OIL

main90311-85003i2L..LH80..5H198508-198608

HTC 85 105 10

main90311-85004i2L..LH8#198608-198804

HTC 85 105 10

main90311-85006i2L..LH8#199102-199209

main90311-85007i2L..LH8#199209-199505

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54010i2L..LH8#198508-198808

main11383-54020i2L..LH8#198808-199107

main11383-54030i2L..LH8#199107-199505

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010i2L..LH8#198508-198808

main11384-54020i2L..LH80198808-198910

main11384-54030i2L..LH8#199107-199505

11391POINTER, TIMING

main11391-54010i2L..LH8#198508-198808

main11391-54020i2L..LH80198808-198910

11492APLATE, WATER SEAL

main11492-54010i2L..LH8#198508-198904

9010508175

main90105-08175

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

91611G1020

main91611-G1020

9671119015

main96711-19015

31 parts on this diagram · 2 diagrams in section
