CYLINDER HEAD

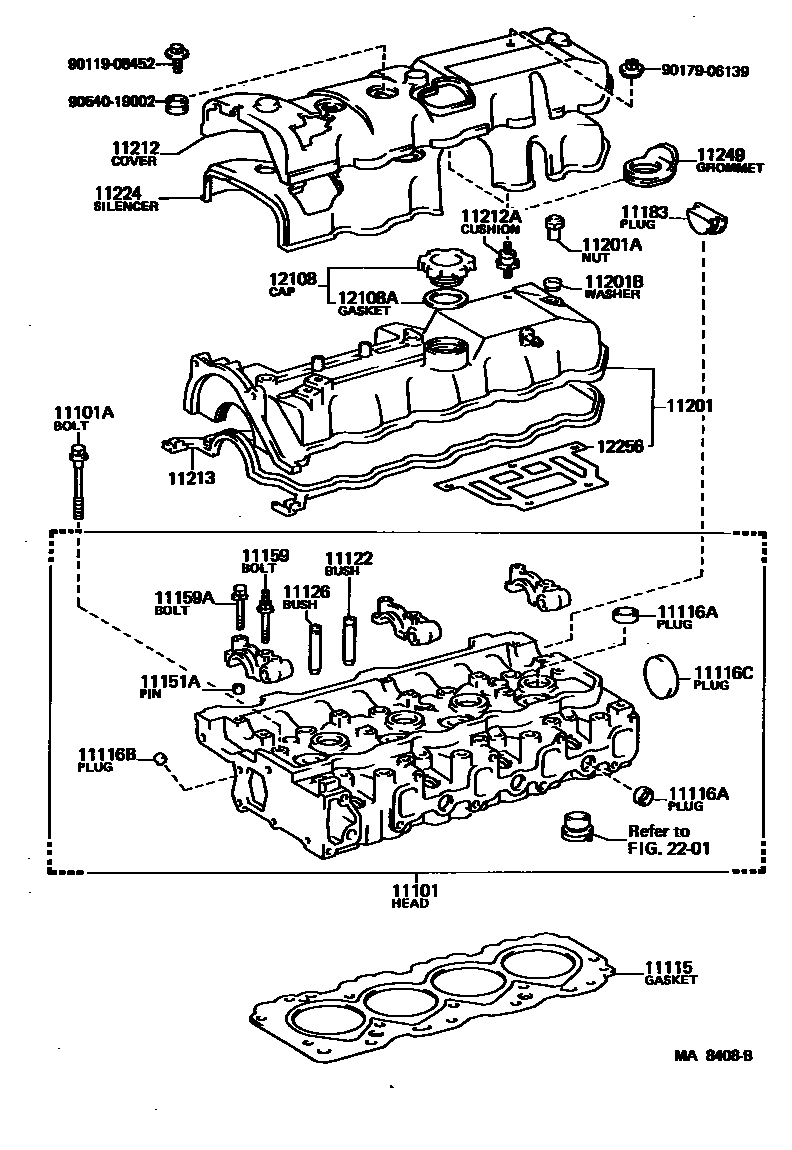

Parts diagram

11101HEAD SUB-ASSY, CYLINDER

main11101-54050i198808-198910

main11101-54110i198808-198910

main11101-54111i199206-199505

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02060×18i198508-198804

*12-1.25PX112-24

main90910-02080×14i198910-199505

main90910-02081×4i198910-199505

main90910-02090×18i198807-198808

11115GASKET, CYLINDER HEAD

main11115-54020i198808-198910

main11115-54080-B0i198808-198908

MARK B

main11115-54080-D0i198808-198908

MARK D

main11115-54080-F0i198808-198908

MARK F

main11115-54081-B0i198908-198910

MARK B

main11115-54081-D0i198910-199111

MARK D

main11115-54081-F0i198908-198910

MARK F

main11115-54082-B0i199111-199204

MARK B

main11115-54082-D0i199111-199204

MARK D

main11115-54082-F0i199111-199204

MARK F

main11115-54083-B0i199204-199302

MARK B

main11115-54083-D0i199305-199505

MARK D

main11115-54083-F0i199204-199302

MARK F

11116APLUG, TIGHT, NO.1

main90331-08004×8i198808-198907

main96411-42500×7i198804-198808

11116BPLUG, TIGHT, NO.2

main96411-41200×4i198508-198804

OD=12

main96411-42500×7i199501-199505

main96411-62500×7i199305-199501

11116CPLUG, TIGHT, NO.3

main96411-43000i199501-199505

main96411-45000i198804-198808

main96411-63000i199305-199501

11122BUSH, INTAKE VALVE GUIDE

main11122-54011×4i198508-198804

main11122-54020×4i198910-199505

main11123-54011×4i198804-198808

main11123-54020×4i198808-198910

11126BUSH, EXHAUST VALVE GUIDE

main11122-54011×4i198508-198804

main11122-54020×4i198808-198910

main11123-54011×4i198508-198804

main11123-54020×4i198910-199505

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001×6i198508-198804

main90253-11021×10i198808-198910

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08137×3i198508-198804

L=76.6,S=13&15

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166×10i198808-198910

main90119-08191×3i198808-198910

11183PLUG, SEMICIRCULAR

main11183-54011i198508-198808

main11183-54020i198808-198910

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-54050i198508-198801

main11201-54080i198801-198808

main11210-54030i198808-198910

main11210-54031i199203-199505

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08014×3i198508-198808

main90179-06171×2i198808-198910

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-13001×3i198508-198808

11212COVER, CYLINDER HEAD, NO.2

main11212-54020i198508-198808

main11212-54030i198808-198910

11212ACUSHION, CYLINDER HEAD COVER

main11228-54010i198508-198808

11213GASKET, CYLINDER HEAD COVER

main11213-54030i198508-198808

main11213-54050i198808-198910

11224SILENCER, CYLINDER HEAD COVER

main11224-54020i198508-198808

main11224-54030i198808-198910

11249GROMMET, CYLINDER HEAD COVER

main11249-54010i198508-198808

main11249-54020i198910-199309

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i198510-198808

main12180-70010i198508-198510

main12180-70020i198910-199505

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i198808-198910

main90430-37140i198508-198808

12256GASKET, VENTILATION BAFFLE

main12256-54020i198804-198808

2201INJECTION NOZZLE

→ Go to FIG 22-01

9011908452

main90119-08452

9017906139

main90179-06139

9054019002

main90540-19002

27 parts on this diagram · 2 diagrams in section
