721120
›

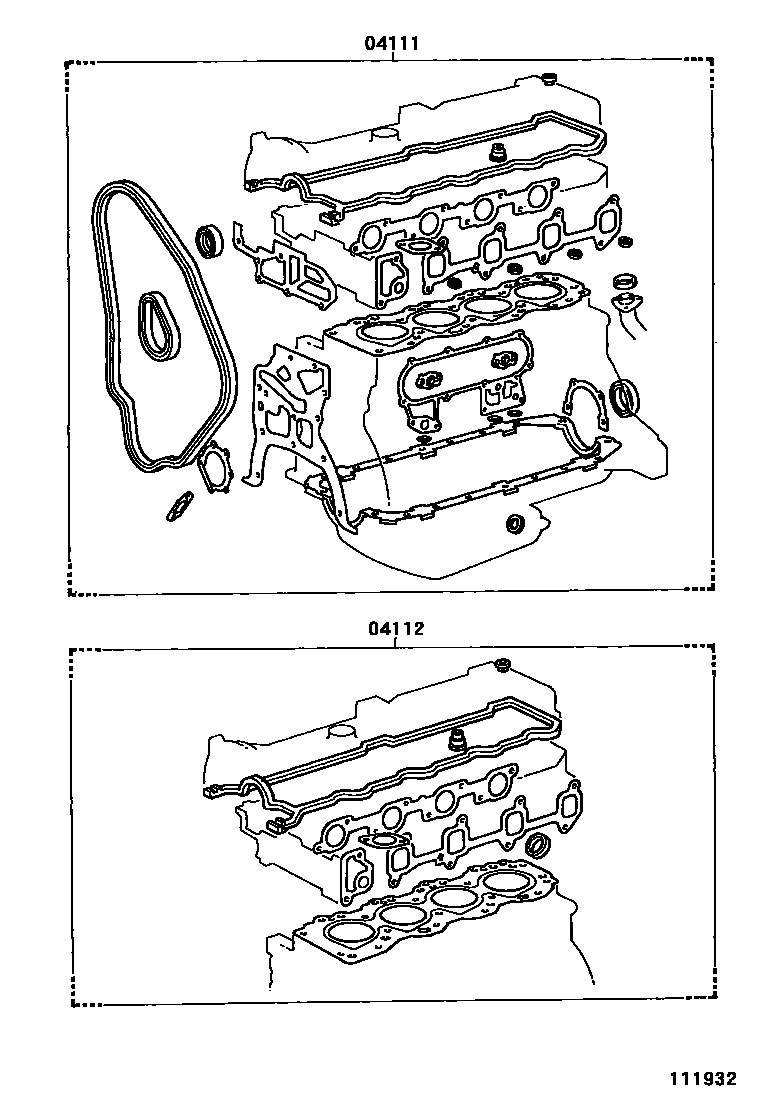

ENGINE OVERHAUL GASKET KIT
ENGINE OVERHAUL GASKET KIT
0001 1
0002 1
04111
GASKET KIT, ENGINE OVERHAUL
main
04111-54051
i
2L..LH8#
198508-198806
main
04111-54052
i
2L..LH8#
198806-198808
main
04111-54080
i
2L..LH80
198808-198904
main
04111-54081
i
2L..LH80
198904-198908
main
04111-54082
i
2L..LH8#
198910-199108
main
04111-54083
i
2L..LH8#
199108-199505
04112
GASKET KIT, ENGINE VALVE GRIND
main
04112-54041
i
2L..LH8#
198508-198808
main
04112-54070
i
2L..LH80
198808-198910
main
04112-54071
i
2L..LH8#
199108-199505
2 parts on this diagram · 2 diagrams in section
