Toyota HIACE QUICK DELIVERY721 — SHORT BLOCK ASSEMBLY

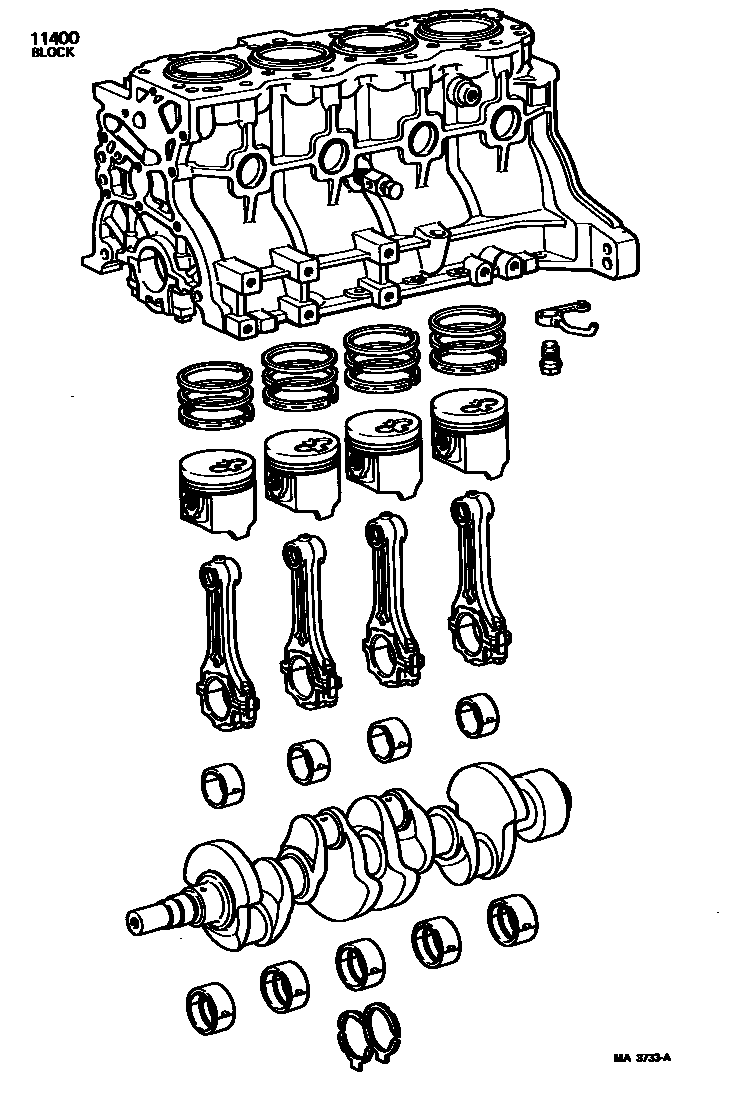

Parts diagram
11400BLOCK ASSY, SHORT
11400-54061
11400-54062
11400-54063
11400-54100

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota HIACE QUICK DELIVERY721

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota HIACE QUICK DELIVERY721. Key components include: BLOCK ASSY, SHORT.
