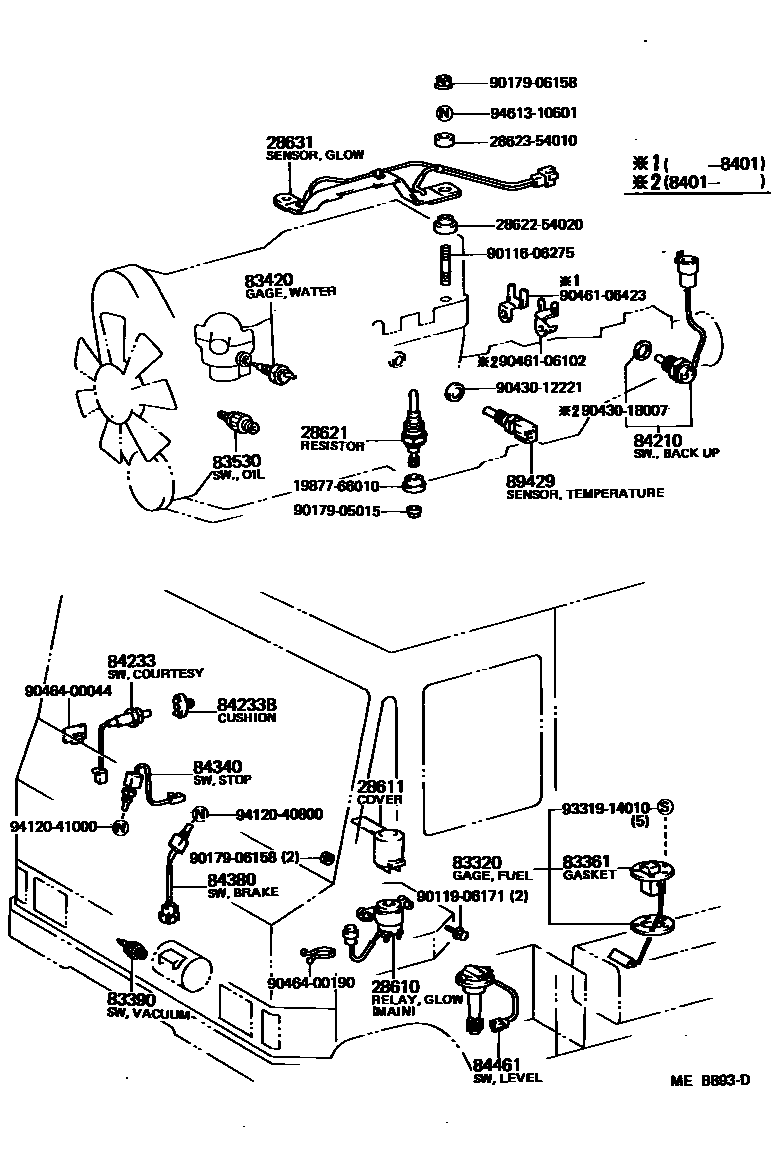

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54150iL..LH24198205-198507

SUB

main28610-54190iL..LH24198205-198507

MAIN

28611COVER, GLOW PLUG RELAY

main28611-54020iL..LH24198205-198507

28621RESISTOR, GLOW PLUG

main28621-54031iL..LH24198205-198507

28631SENSOR, GLOW PLUG CURRENT

main28631-54040iL..LH24198205-198507

83320GAGE ASSY, FUEL SENDER

main83320-29345iLH24198205-198507

83361GASKET, FUEL SENDER GAGE

main83361-20030iLH24198205-198507

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLH24198205-198507

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLH24198205-198507

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-36011iLH24198205-198507

84210SWITCH ASSY, BACK-UP LAMP

main84210-35010iLH24198205-198211

main84210-35020iLH24198211-198401

main84210-60021iLH24198401-198507

84233SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

main84230-22051×2iLH24198205-198507

84233BCUSHION, COURTESY SWITCH (FOR FRONT DOOR)

main84234-24010×2iLH24198205-198507

84340SWITCH ASSY, STOP LAMP

main84340-22072iLH24198205-198507

84380SWITCH ASSY, BRAKE WARNING TEST

main84380-35010iLH24198205-198507

84461SWITCH, LEVEL WARNING

main84461-30040iLH24198205-198507

89429SENSOR, OIL TEMPERATURE

main89422-30020iLH24198205-198507

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9011606275

main90116-06275

9011906171

main90119-06171

9017905015

main90179-05015

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9046106102

main90461-06102

9046106423

main90461-06423

9046400044

main90464-00044

9046400190

main90464-00190

9331914010

main93319-14010

9412040800

main94120-40800

9412041000

main94120-41000

9461310601

main94613-10601

33 parts on this diagram · 3 diagrams in section
