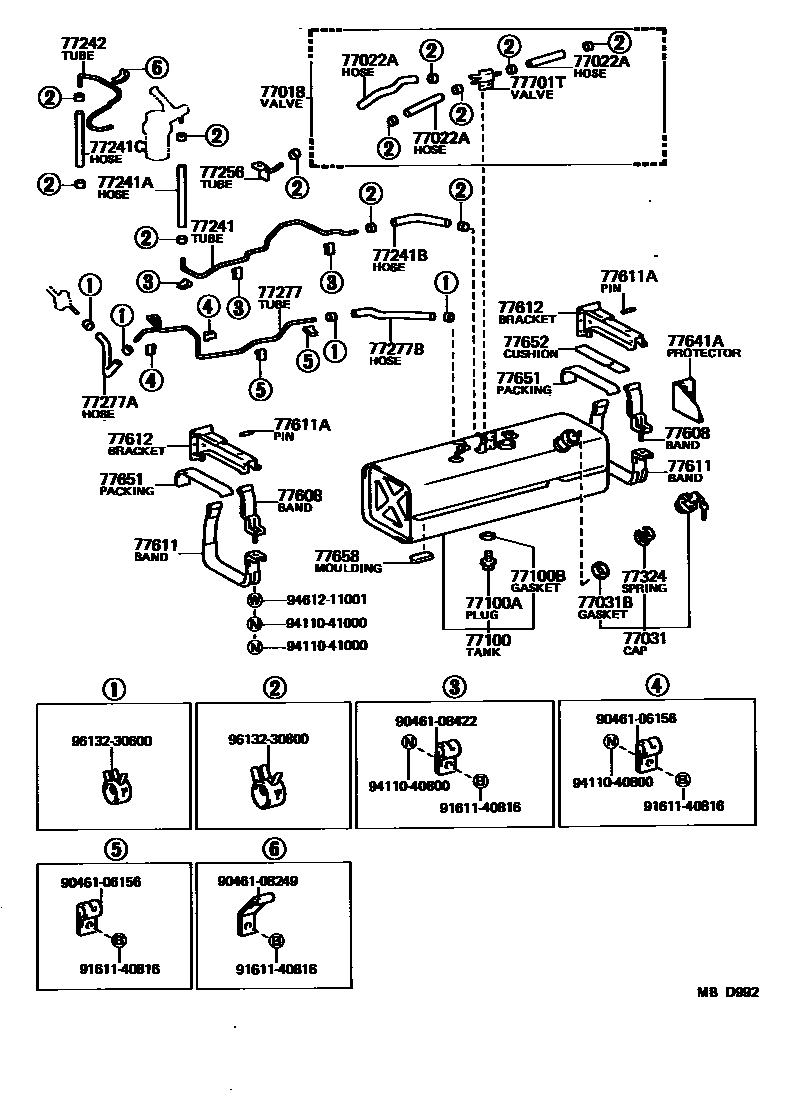

FUEL TANK & TUBE
77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77031BGASKET (FOR FUEL TANK CAP)
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77241TUBE, FUEL MAIN, NO.1
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
sub95333-08020
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
sub95333-08030
77241CHOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
77242TUBE, FUEL MAIN, NO.2
77256TUBE, FUEL EMISSION, NO.3
77277TUBE, FUEL RETURN, NO.1
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
sub95333-06020
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
sub95333-06030
77324SPRING, FUEL TANK CAP
77608BAND SUB-ASSY, FUEL TANK, NO.2
77611BAND, FUEL TANK
77611APIN (FOR FUEL TANK BAND)
77612BRACKET SUB-ASSY, FUEL TANK
FR
RR
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77658MOULDING, FUEL TANK EDGE
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
9046106156
main90461-06156
9046108249
main90461-08249
9046108422
main90461-08422
9161140816
main91611-40816
9411040800
main94110-40800
9411041000
main94110-41000
9461211001
main94612-11001
9613230600
main96132-30600
9613230800
main96132-30800
35 parts on this diagram · 1 diagram in section
