SIDE MEMBER
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
61032APILLAR SUB-ASSY, NO.1 INNER, RH
61034APILLAR SUB-ASSY, NO.3 INNER, RH
61042APILLAR SUB-ASSY, NO.1 INNER, LH
61044APILLAR SUB-ASSY, NO.3 INNER, LH
61075FRAME SUB-ASSY, BACK SIDE INNER, RH
W/ROPE HOOK
61076FRAME SUB-ASSY, BACK SIDE INNER, LH
W/ROPE HOOK
61105PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61117AGUSSET, SIDE PANEL RELIEF, NO.1
61118AGUSSET, SIDE PANEL RELIEF, NO.2
61119GUSSET, SIDE PANEL RELIEF, NO.3
61127AGUSSET, SIDE PANEL RELIEF, NO.4
61128BGUSSET, SIDE PANEL RELIEF, NO.5
W/RR WINDOW
61151CUSHION, SIDE PANEL STIFFENER, NO.1
61152CUSHION, SIDE PANEL STIFFENER, NO.2
61163PILLAR, FRONT BODY, INNER RH
61164PILLAR, FRONT BODY, INNER LH
61165PILLAR, FRONT BODY LOWER INNER, RH
61166PILLAR, FRONT BODY LOWER INNER, LH
61167ASTIFFENER, SIDE PANEL, LOWER RH
61168ASTIFFENER, SIDE PANEL, LOWER LH
61263APILLAR, NO.2 INNER, LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61332ARAIL, NO.1 UPPER INNER, REAR RH
61333PLATE, CENTER PILLAR, RH
61334PLATE, CENTER PILLAR, LH
61342ARAIL, NO.1 UPPER INNER, REAR LH
61353BRAIL, NO.3 CENTER OUTER, RH
W/RR DOOR
61373RAIL, NO.3 CENTER, INNER
RH
W/RR DOOR
LH
61374ARAIL, NO.4 CENTER INNER
W/RR DOOR
61408REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE
RH
RH,FR,W/RR DOOR
RH,RR,W/DOOR
LH
61452PANEL, ROCKER INNER, FRONT RH
61453APANEL, ROCKER INNER, REAR RH
61462PANEL, ROCKER, INNER FRONT LH
61463APANEL, ROCKER, INNER REAR LH
61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH
61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH
61627AEXTENSION, QUARTER PANEL, LOWER RH
61628AEXTENSION, QUARTER PANEL, LOWER LH
61705HBRACKET, BACK CORNER, INNER RH
61706HBRACKET, BACK CORNER, INNER LH
61721APANEL, QUARTER INNER CORNER, RH
W/STOPPER
61722APANEL, QUARTER INNER CORNER, LH
W/STOPPER
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61773APATCH, BACK DOOR OPENING, LOWER RH
61774APATCH, BACK DOOR OPENING, LOWER LH
65028FRAME SUB-ASSY, SIDE PANEL, RH
FR,W/RR DOOR
RR,W/RR DOOR
FR,W/RR DOOR,ROPE HOOK
RR,W/RR DOOR,ROPE HOOK
65057REINFORCEMENT SUB-ASSY, SIDE PANEL, C RH
W/ROPE HOOK
65538PATCH, SIDE PANEL FLAME
7851ACCELERATOR LINK
7471695A00SPRING, JACK HANDLE SUPPORT
main74716-95A00
9354024008
main93540-24008

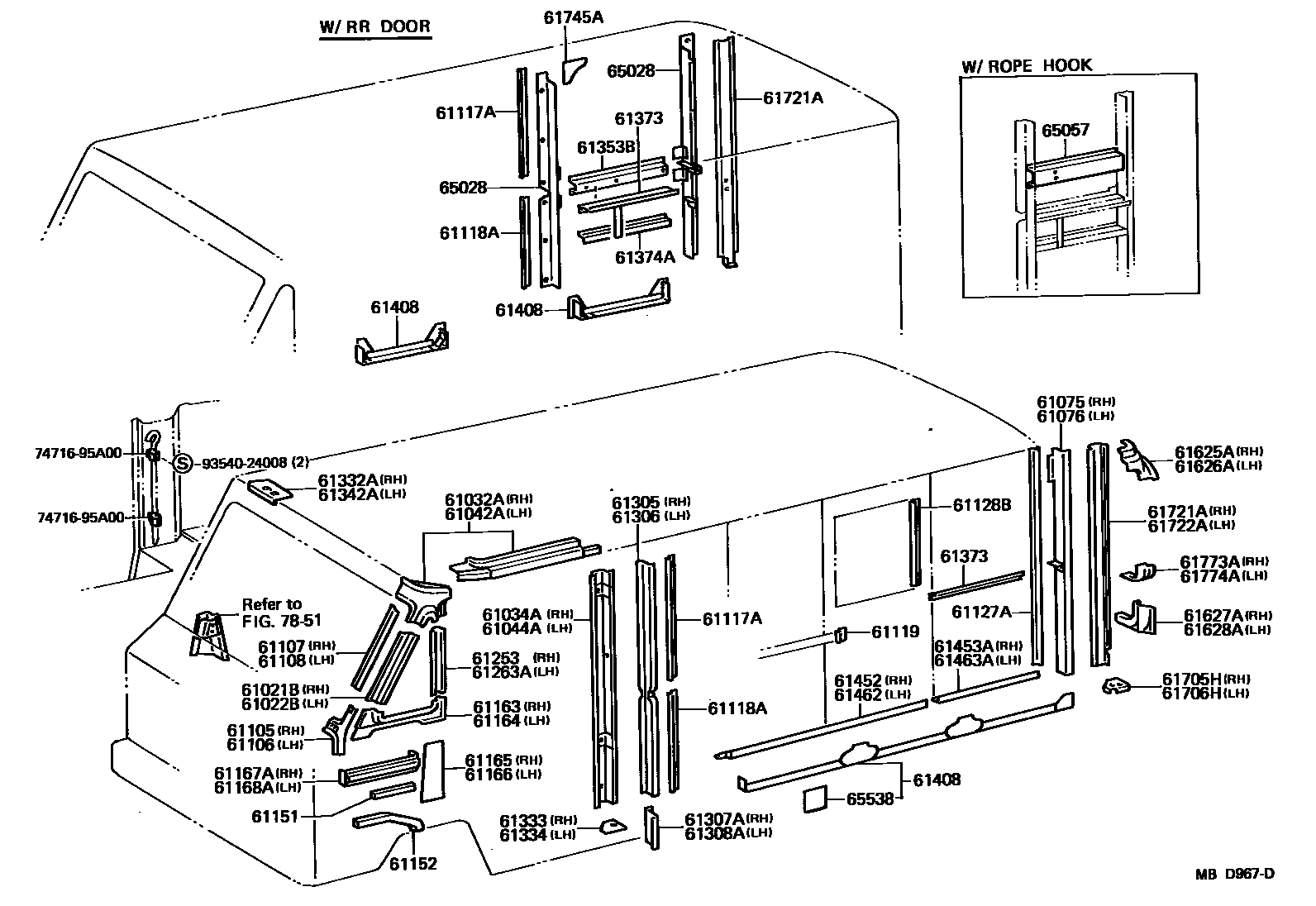

60 parts on this diagram · 2 diagrams in section
