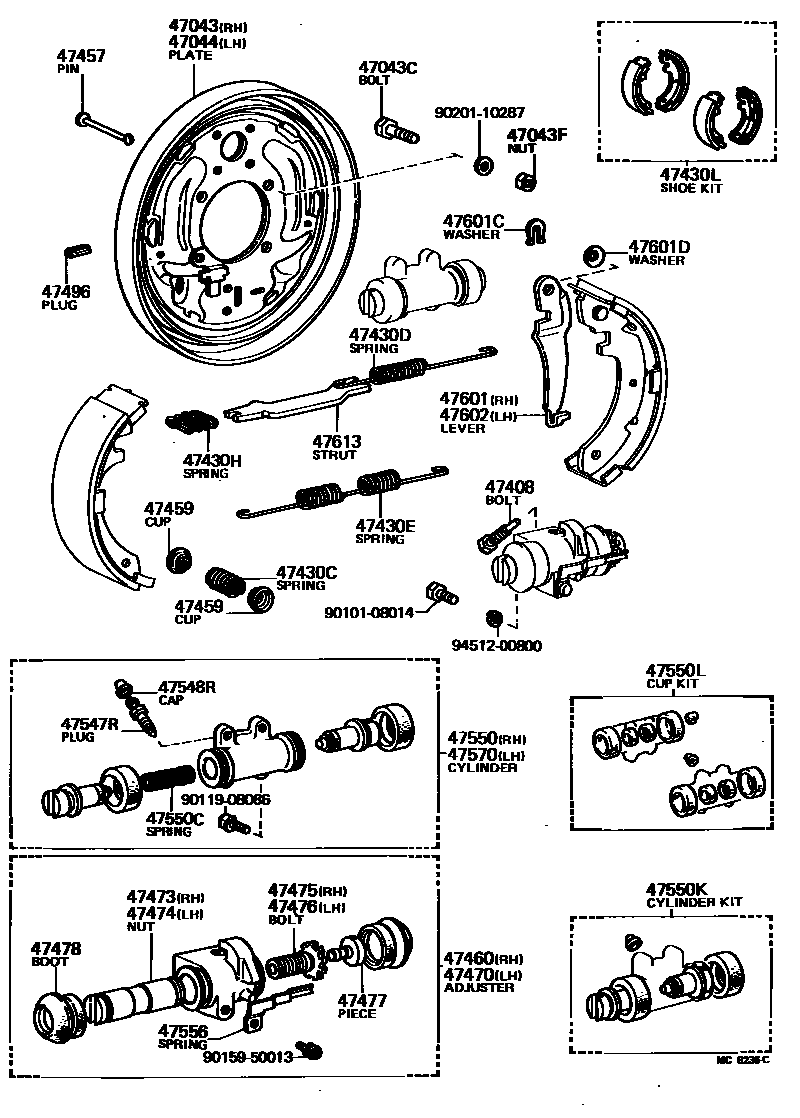

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26030iLH24198205-198507

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-10028×8iLH24198205-198507

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94110-71000×8iLH24198205-198507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26030iLH24198205-198507

47408BOLT SUB-ASSY, RETRACTING SPRING CLAMP

main47408-30020×2iLH24198205-198507

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756×4iLH24198205-198507

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23010×2iLH24198205-198507

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26159×2iLH24198205-198507

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-14003×2iLH24198205-198507

47430LSHOE KIT, REAR BRAKE

main04495-26030iLH24198205-198507

main04497-26040iLH24198205-198507

REBUILT

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLH24198205-198507

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLH24198205-198507

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47460-28010iLH24198205-198507

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47470-28010iLH24198205-198507

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47473-28010iLH24198205-198507

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47474-28010iLH24198205-198507

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47475-28010iLH24198205-198507

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47476-28010iLH24198205-198507

47477PIECE, SHOE SUPPORT (FOR REAR BRAKE)

main47477-28010×2iLH24198205-198507

47478BOOT, ADJUSTER CYLINDER(FOR REAR BRAKE)

main47478-28010×4iLH24198205-198507

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×2iLH24198205-198507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iLH24198205-198301

main47547-26010×2iLH24198301-198507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLH24198205-198507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29235iLH24198205-198301

main47550-29285iLH24198301-198507

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iLH24198205-198507

47550KCYLINDER KIT, REAR WHEEL

main04474-26010iLH24198205-198507

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-26030iLH24198205-198507

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-28010iLH24198205-198507

RH

main47556-28010iLH24198205-198507

LH

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29235iLH24198205-198301

main47550-29285iLH24198301-198507

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-26020iLH24198205-198507

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLH24198205-198507

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iLH24198205-198507

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-26020iLH24198205-198507

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-26010×2iLH24198205-198507

9010108014

main90101-08014

9011908086

main90119-08086

9015950013

main90159-50013

9020110287

main90201-10287

9451200800

main94512-00800
