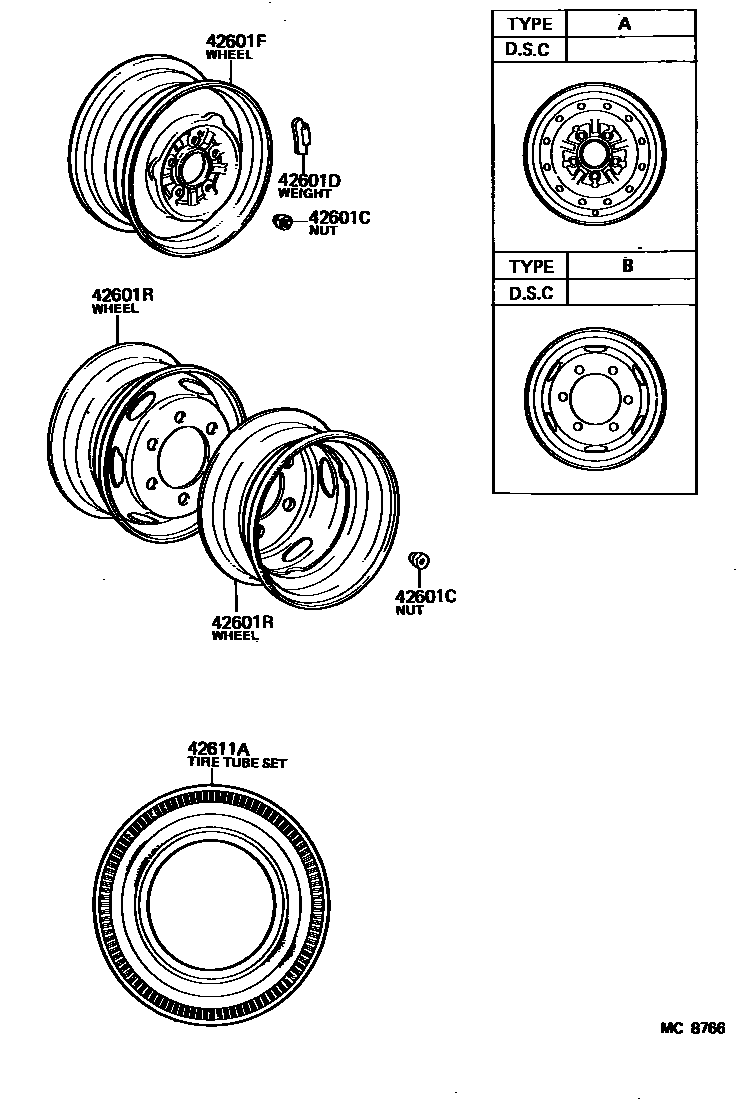

DISC WHEEL & WHEEL CAP

42601CNUT, HUB (FOR AXLE)

main90942-01004×6iLH24198205-198507

RR,RH

main90942-01009×6iLH24198205-198507

RR,LH

main90942-01027×10iLH24198205-198507

FR

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iLH24198205-198507

main90942-03020iLH24198205-198507

main90942-03022iLH24198205-198507

main90942-03025iLH24198205-198507

main90942-03027iLH24198205-198507

main90942-03029iLH24198205-198507

main90942-03031iLH24198205-198507

main90942-03041iLH24198205-198507

42601FWHEEL, DISC (FOR FRONT)

main42601-26090×3iLH24198209-198211

4.5J-14,TYPE A

main42601-26150×3iLH24198205-198209

5.5J-14,TYPE A

main42601-26170×3iLH24198211-198507

4.5J-14,TYPE A

42601RWHEEL, DISC (FOR REAR)

main42601-25081×5iLH24198205-198507

4J-12,TYPE B

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-25110×5iLH24198209-198507

155R12-8,RR

main42605-26080×3iLH24198205-198209

185R14-6,FR

main42605-26090×3iLH24198209-198507

175R14-6,FR

main42605-26120×5iLH24198205-198209

155R12-6,RR

5 parts on this diagram · 1 diagram in section
