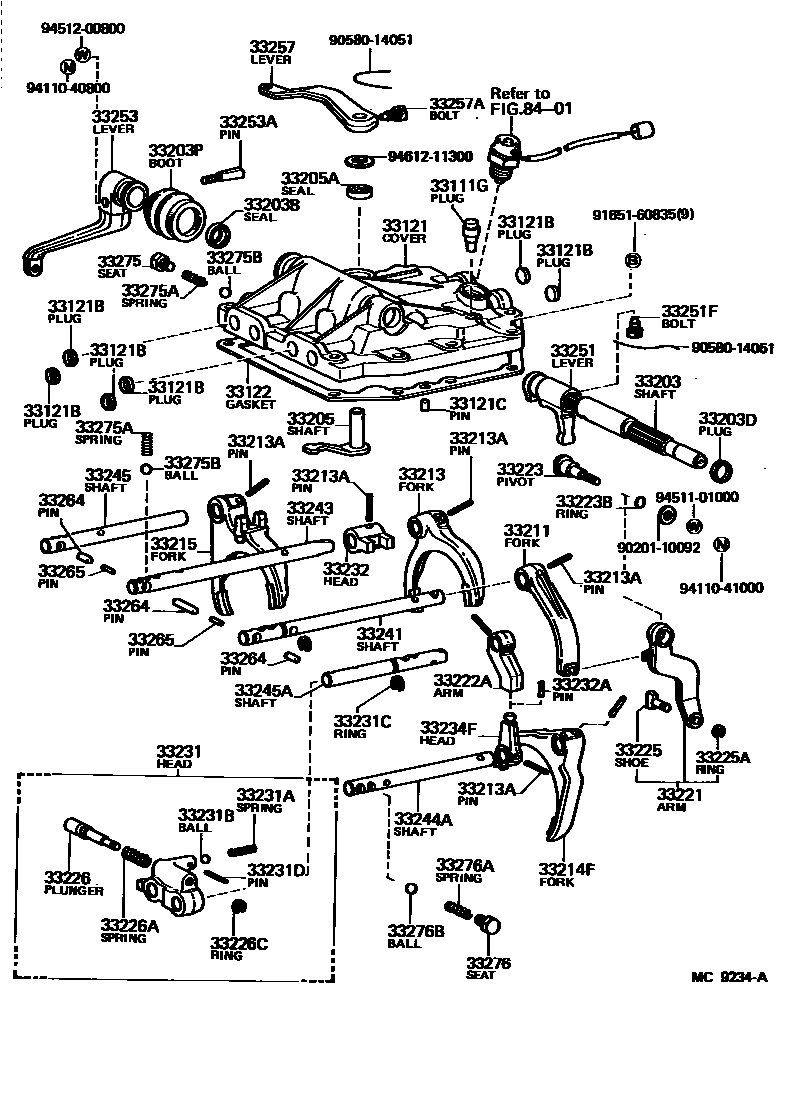

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33121COVER, MANUAL TRANSMISSION CASE
33121CPIN(FOR TRANSMISSION CASE COVER)
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)
33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
L=22
L=25.5
33214FFORK, 5TH SHIFT
33215FORK, 3RD & 4TH SHIFT
33222AARM, 5TH SHIFT
33223PIVOT, SHIFT ARM
33223BRING, O(FOR SHIFT ARM PIVOT)
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33226PLUNGER, REVERSE SHIFT RETURN
33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)
33226CRING, SHAFT SNAP(FOR REVERSE SHIFT RETURN PLUNGER)
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33231DPIN(FOR REVERSE SHIFT HEAD)
33232HEAD, 1ST & 2ND SHIFT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33234FHEAD, REVERSE & 5TH SHIFT
33241SHAFT, REVERSE SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33245ASHAFT, 5TH SHIFT ARM
33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257ABOLT, SELECT OUTER LEVER LOCK
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=32.9,OD=9.53
L=14.9,OD=9.53
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
sub90501-14123
sub90501-14123
sub90501-14132
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33276BBALL, SHIFT DETENT, NO.2
8401
9020110092
main90201-10092
9058014051
main90580-14051
9165160835
main91651-60835
9411040800
main94110-40800
9411041000
main94110-41000
9451101000
main94511-01000
9451200800
main94512-00800
9461211300
main94612-11300
61 parts on this diagram · 2 diagrams in section
