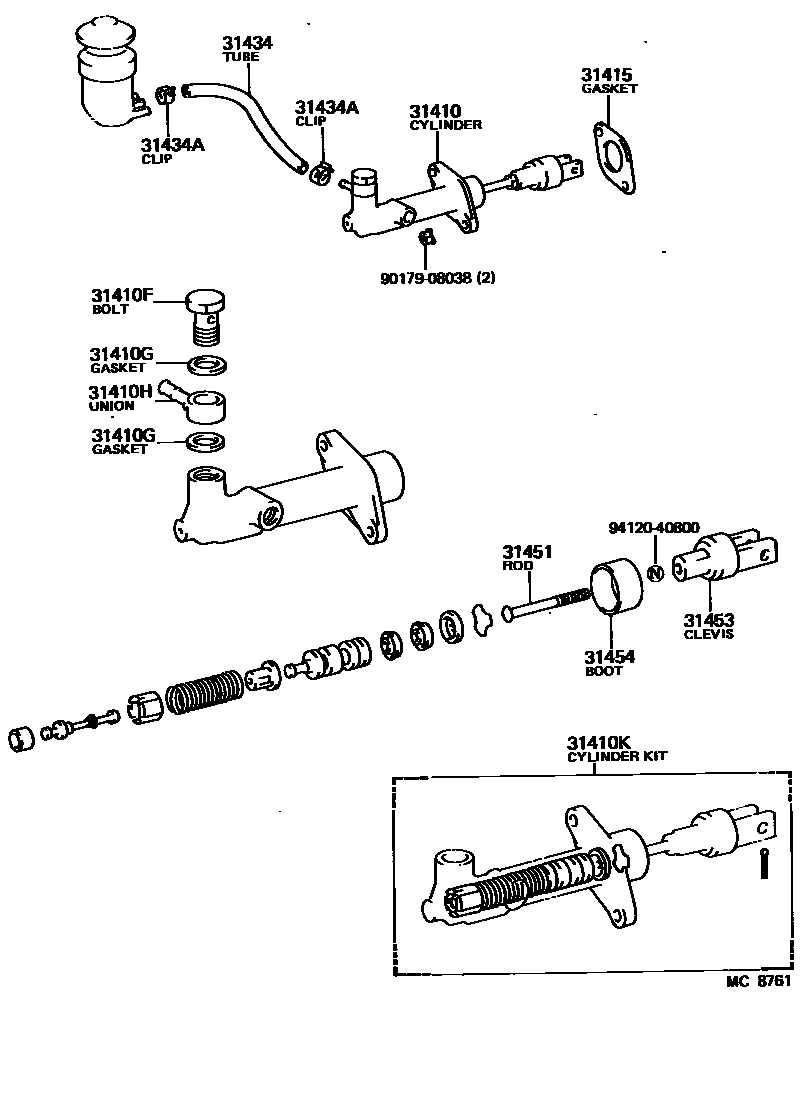

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26080iLH24198205-198401

main31420-26130iLH24198401-198507

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH24198205-198507

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242×2iLH24198205-198507

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH24198205-198507

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iLH24198401-198507

main04311-30080iLH24198205-198401

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iLH24198205-198507

31434TUBE, CLUTCH RESERVOIR

main31434-26090iLH24198205-198507

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800×2iLH24198205-198507

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30060iLH24198205-198507

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iLH24198205-198405

main31404-30041iLH24198405-198507

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iLH24198205-198507

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
