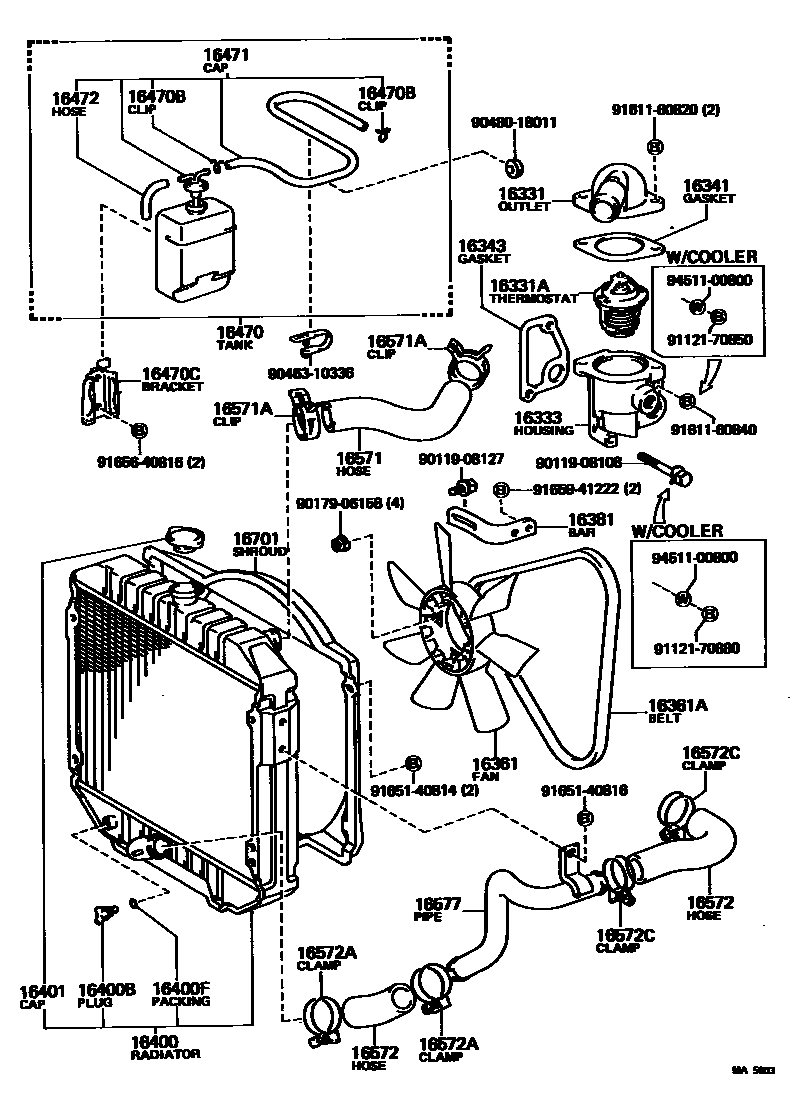

RADIATOR & WATER OUTLET
16331ATHERMOSTAT
*WAX 82-95
16341GASKET, WATER OUTLET
16343GASKET, WATER OUTLET HOUSING
16361FAN
16361ABELT, V(FOR FAN & ALTERNATOR)
DOUBLE V BELTS
L=985
L=1000
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
WATER PUMP SIDE
RADIATOR SIDE
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
PIPE SIDE,ID=46
PUMP SIDE,ID=50
16701SHROUD SUB-ASSY, FAN
9011908108
main90119-08108
9011908127
main90119-08127
9017906158
main90179-06158
9046310336
main90463-10336
9048018011
main90480-18011
9112170850
main91121-70850
9112170880
main91121-70880
9161160820
main91611-60820
9161160840
main91611-60840
9165140814
main91651-40814
9165140816
main91651-40816
9165640816
main91656-40816
9165941222
main91659-41222
9451100800
main94511-00800
38 parts on this diagram · 2 diagrams in section
