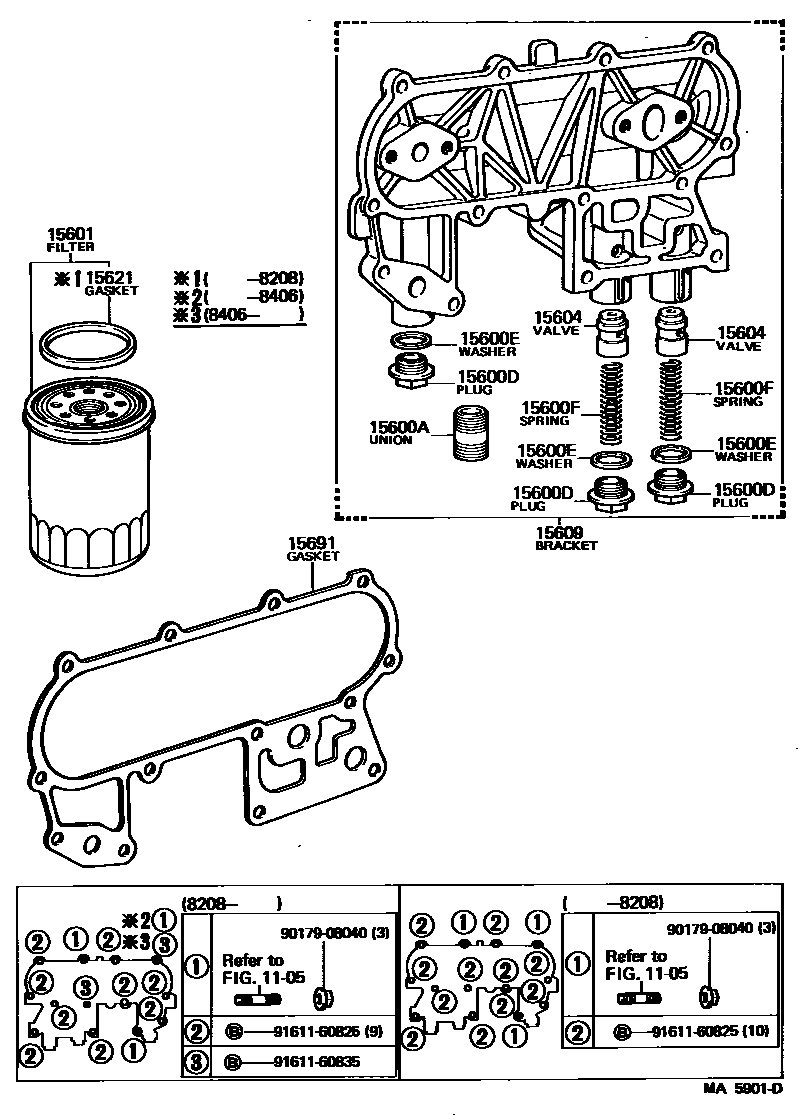

OIL FILTER

1105CYLINDER BLOCK

→ Go to FIG 11-05

15600AUNION(FOR OIL FILTER)

main15116-54010iL..LH24198205-198507

15600DPLUG(FOR OIL FILTER)

main90341-18001×3iL..LH24198205-198206

main90341-18015×3iL..LH24198206-198507

15600EWASHER(FOR OIL FILTER)

main90430-18001×3iL..LH24198205-198411

main90430-18011×3iL..LH24198411-198507

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026×2iL..LH24198205-198507

15601FILTER SUB-ASSY, OIL

main15600-41010iL..LH24198205-198507

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010×2iL..LH24198205-198507

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54011iL..LH24198205-198406

main15609-54012iL..LH24198406-198507

15621GASKET, OIL FILTER BODY

main15621-41010iL..LH24198205-198208

15691GASKET, OIL FILTER

main15691-54012iL..LH24198205-198507

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

13 parts on this diagram · 1 diagram in section
