Toyota HIACE QUICK DELIVERY721 — CRANKSHAFT & PISTON

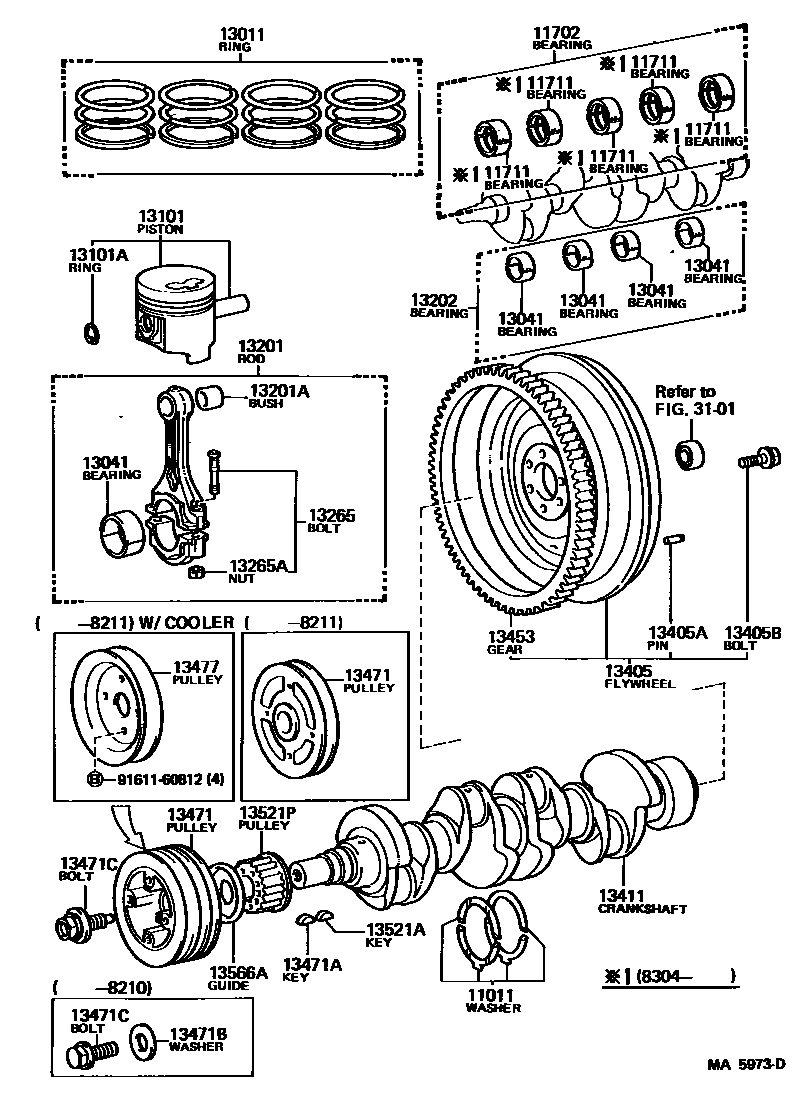

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

11702BEARING SET, CRANKSHAFT

11711BEARING, CRANKSHAFT

13011RING SET, PISTON

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

13201ABUSH(FOR CONNECTING ROD SMALL END)

13202BEARING SET, CONNECTING ROD

13265BOLT, CONNECTING ROD

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

13453GEAR, FLYWHEEL RING

13471PULLEY, CRANKSHAFT

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13477PULLEY, CRANKSHAFT, NO.2

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

13521PPULLEY, CRANKSHAFT TIMING

13566AGUIDE, TIMING BELT

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

9161160812

27 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota HIACE QUICK DELIVERY721

This section contains 27 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota HIACE QUICK DELIVERY721. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
