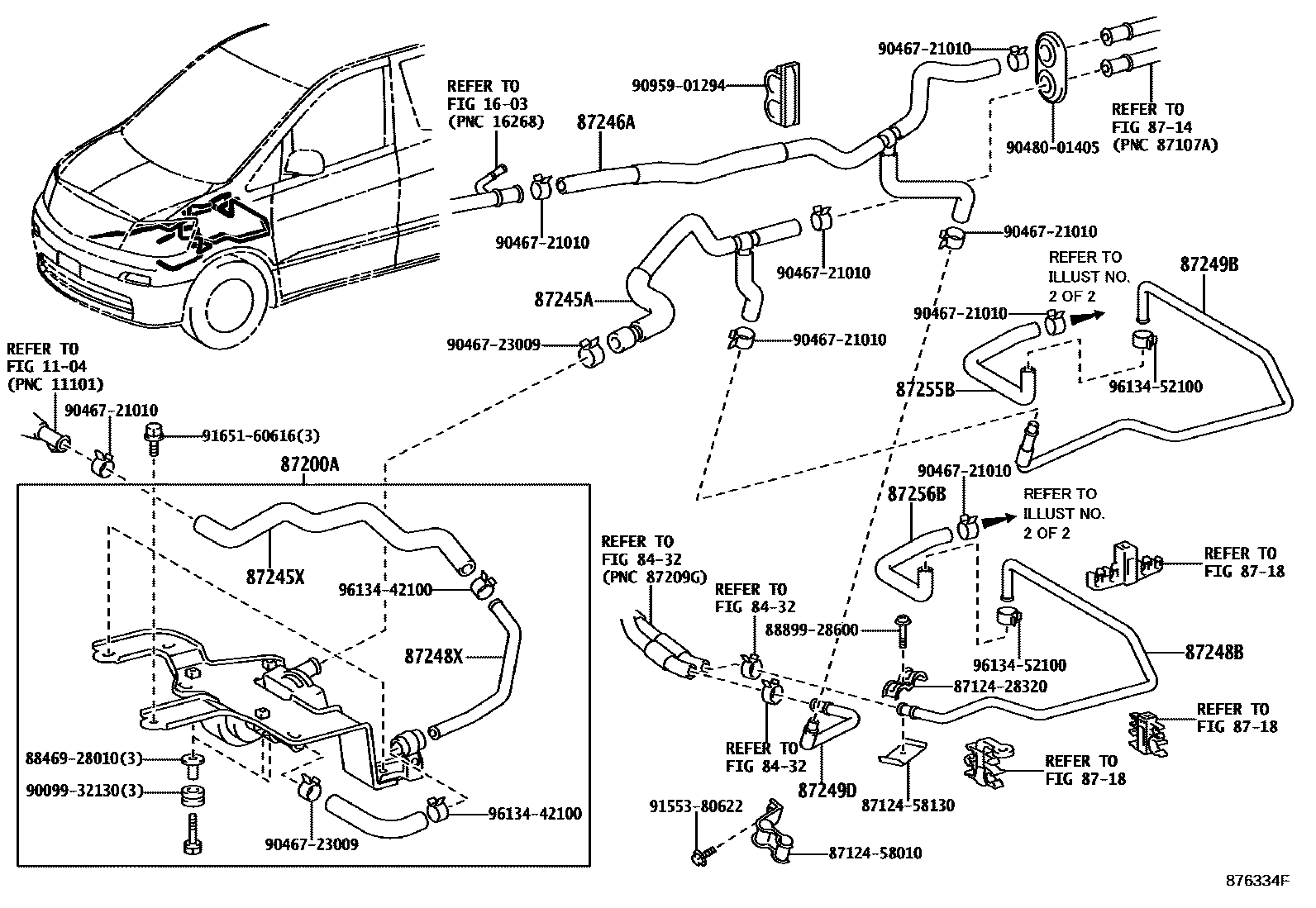

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

87200APUMP ASSY, WATER(FOR HEATER)

main87200-58010iATH10200307-200804

87245AHOSE, HEATER WATER, INLET A

main87209-58060iATH10200307

87245XHOSE, HEATER WATER

main87245-58160iATH10200307

87246AHOSE, HEATER WATER, OUTLET A

main87209-58070iATH10200307

87248BPIPE, HEATER WATER INLET, B

main87248-58100iATH10200307-200804

87248XPIPE, HEATER WATER

main87248-58070iATH10200307

87249BPIPE, HEATER WATER OUTLET, B

main87248-58080iATH10200307

87249DPIPE, HEATER WATER OUTLET, D

main87248-58090iATH10200307-200804

87255BHOSE, REAR HEATER WATER INLET, B

main87245-58010iATH10200307

87256BHOSE, REAR HEATER WATER OUTLET, B

main87245-58020iATH10200307

8712428320CLAMP, HEATER

main87124-28320

8712458010CLAMP, HEATER

main87124-58010

8712458130CLAMP, HEATER

main87124-58130

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8889928600COVER, EVAPORATOR

main88899-28600

9009932130

main90099-32130

9046721010

main90467-21010

9046723009

main90467-23009

9048001405

main90480-01405

9095901294

main90959-01294

9155380622

main91553-80622

9165160616

main91651-60616

9613442100

main96134-42100

9613452100

main96134-52100

29 parts on this diagram · 2 diagrams in section
