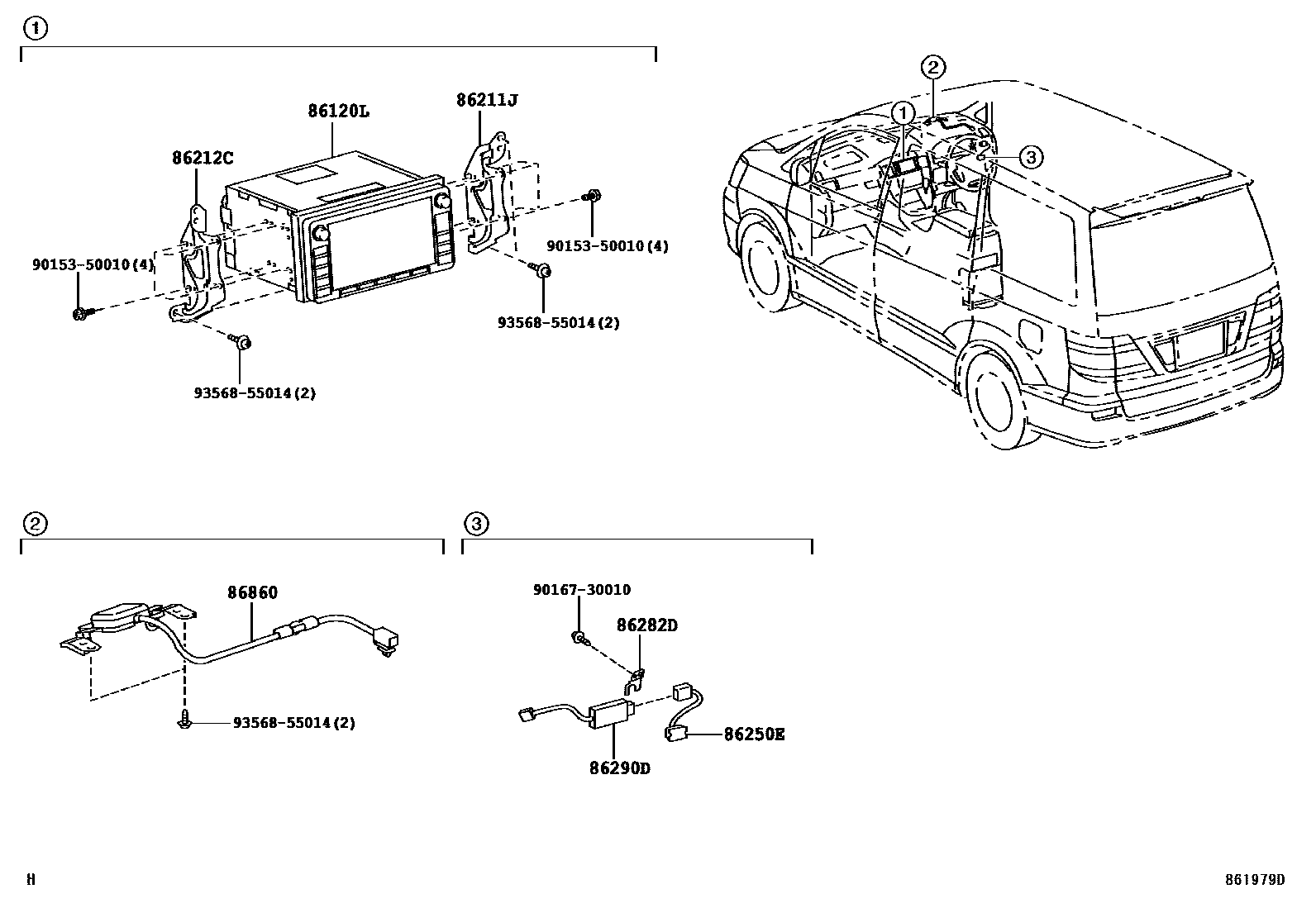

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

86120LRECEIVER ASSY, NAVIGATION

main86120-58050iATH10200307-200804

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-58020iATH10200307-200804

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-58020iATH10200307-200804

86250EMICROPHONE ASSY, AMPLIFIER

86282DBRACKET, MICROPHONE

86290DAMPLIFIER ASSY, MICROPHONE

86860ANTENNA ASSY, NAVIGATION

main86860-58020

main86860-58021

9015350010

main90153-50010

9016730010

main90167-30010

9356855014

main93568-55014

10 parts on this diagram · 4 diagrams in section
