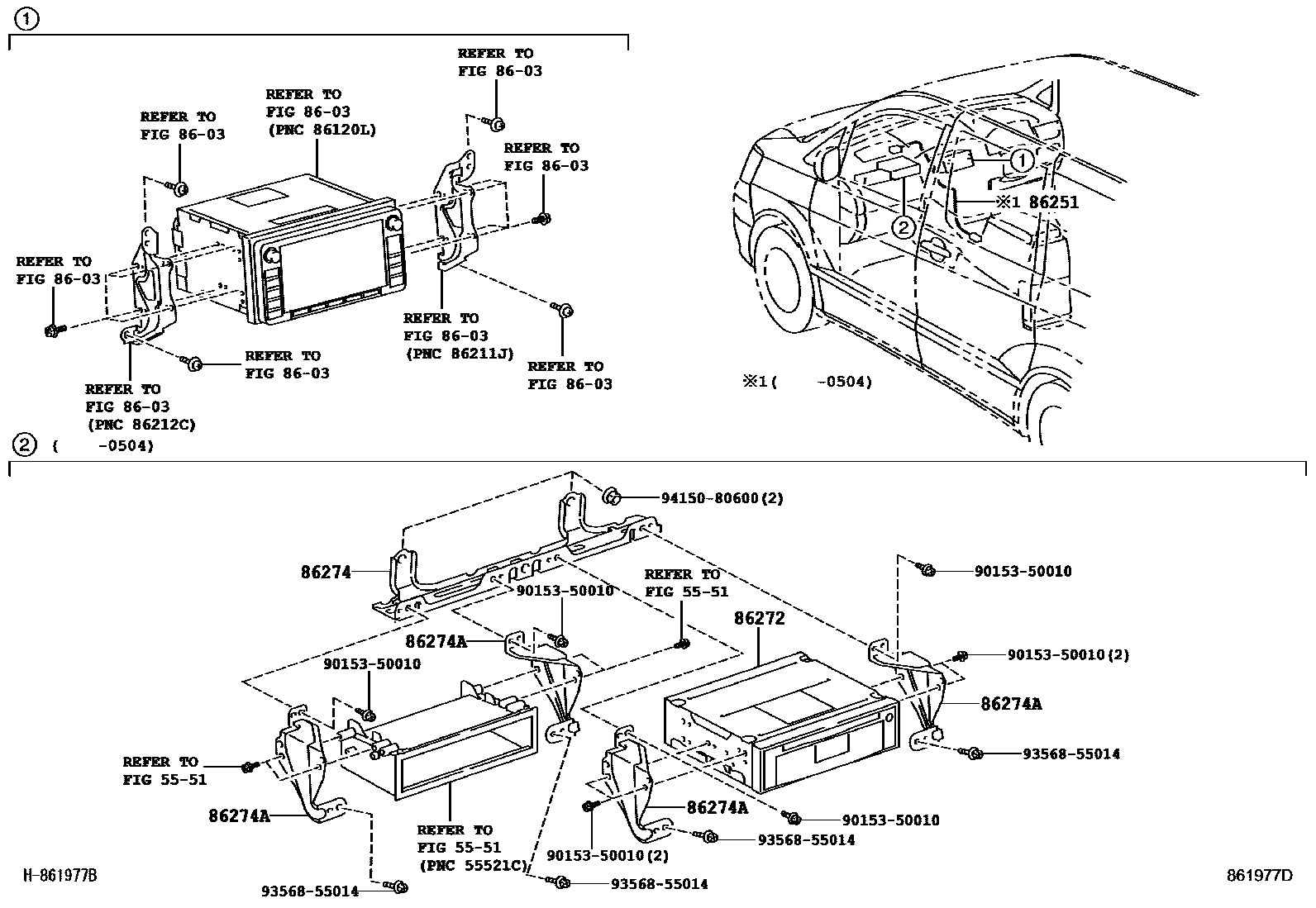

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1�������� 0003 1������- & ��������-

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86251WIRING, AMPLIFIER MICROPHONE

main86251-58020iATH10200307-200504

86272CONTROLLER, DISC PLAYER

main86272-58020iATH10200307-200504

86274BRACKET, DISC PLAYER

main86274-58010iATH10200307-200504

86274ABRACKET, DISC PLAYER

main86274-58020×2iATH10200307-200504

main86274-58030×2iATH10200307-200504

9015350010

main90153-50010

9356855014

main93568-55014

9415080600

main94150-80600

9 parts on this diagram · 3 diagrams in section
