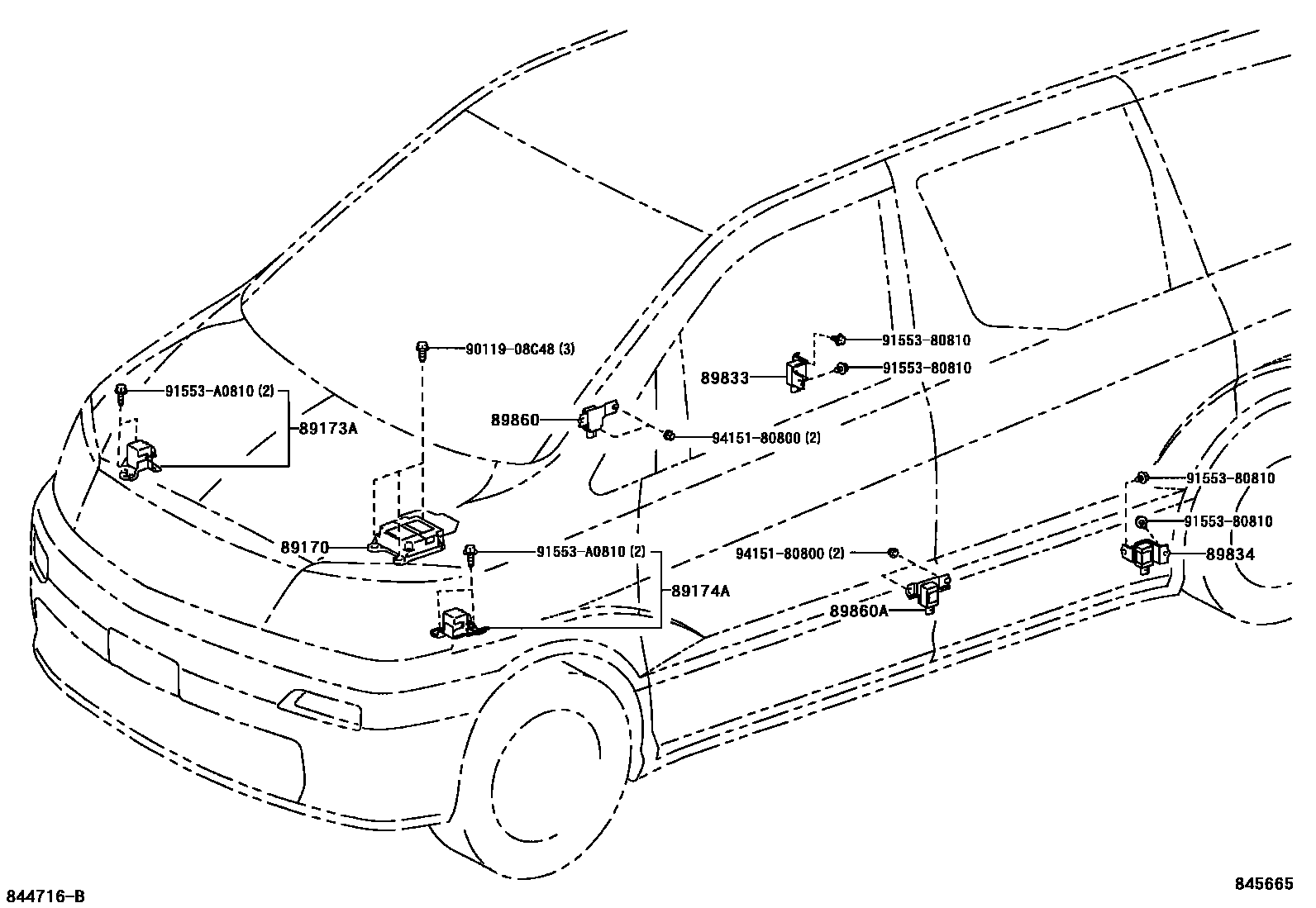

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-58020supersedes 89170-58030iATH10200307-200503

main89170-58050supersedes 89170-58040iATH10200504

89173ASENSOR, AIRBAG, FRONT RH

main89173-59205iATH10200307

89174ASENSOR, AIRBAG, FRONT LH

main89174-59135iATH10200307

89833SENSOR, AIRBAG, REAR RH

main89833-58010iATH10200307

89834SENSOR, AIRBAG, REAR LH

main89834-58010iATH10200307

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-58010iATH10200307

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-58010iATH10200307

9011908C48

main90119-08C48

9155380810

main91553-80810

91553A0810

main91553-A0810

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
