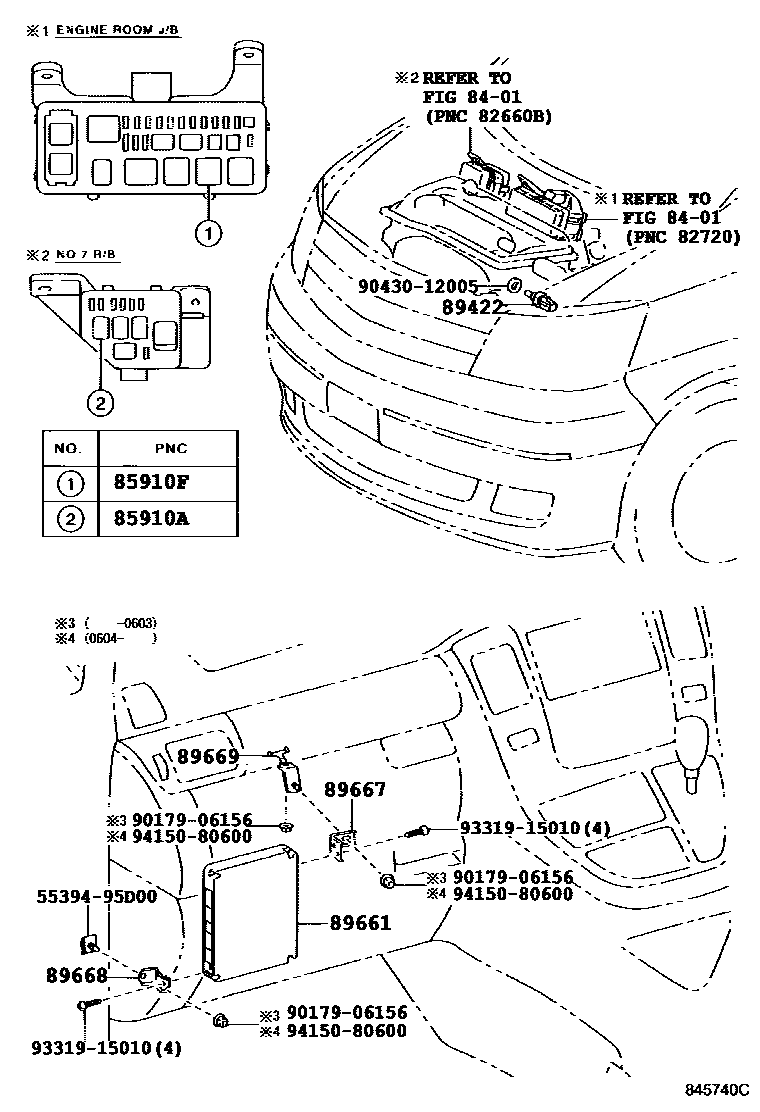

Toyota ALPHARD HV — ELECTRONIC FUEL INJECTION SYSTEM
8401SWITCH & RELAY & COMPUTER
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
5539495D00BRACKET, INSTRUMENT PANEL TO PEDAL
9017906156
9043012005
9331915010
9415080600
13 parts on this diagram · 1 diagram in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota ALPHARD HV
This section contains 13 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota ALPHARD HV. Key components include: SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL.
