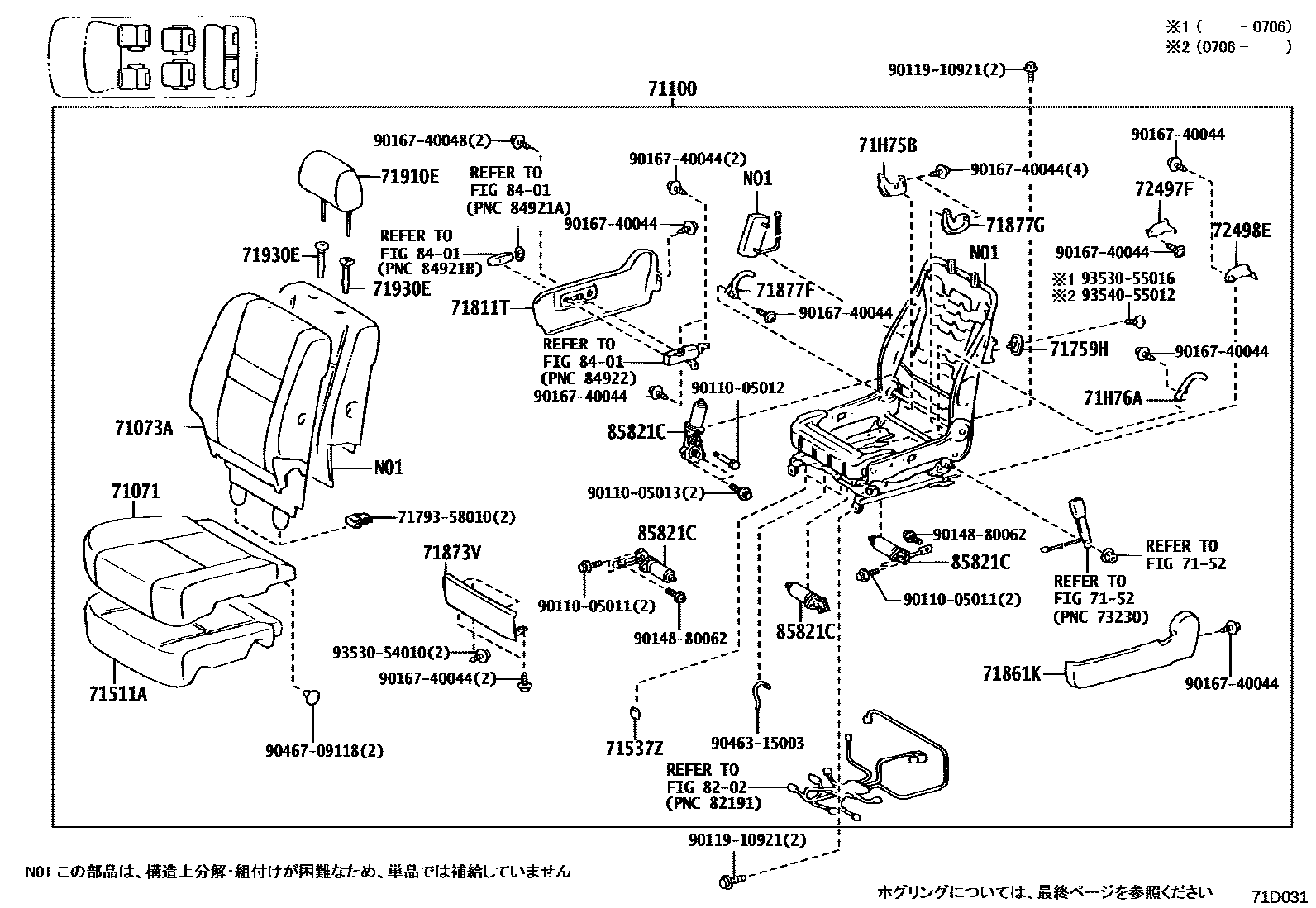

FRONT SEAT & SEAT TRACK

0001 1������-��(SRS����������� & ��0002 1������-��(�������) 0003 1��������-��(SRS�����������) 0004 1�������� 0005 1�������-��(SRS�����������) 0006 1������� 0007 1������ & ������� ������� 0008 1�������

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-58060-A0iATH10200307-200504

IVORY,TRIM0#

main71071-58100-A1iATH10200504-200804

IVORY,TRIM0#

main71071-58050-A0iATH10..07S200307-200504

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71073-58090-A1supersedes 71073-58080-A1iATH10; ATH10..07S200307-200504

main71073-58120-A2iATH10..07S200307-200504

main71073-58121-A2supersedes 71073-58231-A0iATH10200706-200804

main71073-58130-A2iATH10..07S200307-200504

main71073-58131-A2supersedes 71073-58231-A0iATH10200706-200804

main71073-58240-A0supersedes 71073-58230-A0iATH10200504-200706

main71073-58241-A0supersedes 71073-58231-A0iATH10200706-200804

71100SEAT ASSY, FRONT RH

main71100-58100-A2iATH10; ATH10..07S200307-200403

main71100-58100-A3iATH10; ATH10..07S200403-200504

main71100-58140-A3iATH10; ATH10..07S200307-200504

main71100-58270-A0iATH10200504-200706

main71100-58271-A0iATH10200706-200804

main71100-58280-A0iATH10200504-200706

main71100-58281-A0iATH10200706-200804

71511APAD, FRONT SEAT CUSHION, RH

main71511-58010iATH10..07S200307-200504

7152SEAT BELT

→ Go to FIG 71-52

71537ZPROTECTOR, FRONT SEAT CUSHION

main71537-26010×4iATH10200307-200804

71759HHOOK, FRONT SEATBACK

main71759-28040-A0iATH10200307-200706

IVORY,TRIM0#

main71759-28050-A0iATH10200706-200804

IVORY,TRIM0#

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-58030-A0iATH10..07S200307-200504

main71811-58040iATH10200504-200804

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-58030-A0iATH10..07S200307-200504

main71861-58040iATH10200504-200804

71873VSHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-58020iATH10200307-200804

main71873-58010-A0iATH10..07S200307-200504

71877FCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

main71875-58030-A0supersedes 71875-58040-A0iATH10200307-200804

main71875-58040iATH10200504-200804

71877GCOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

main71876-58050iATH10..07S200307-200504

71910EHEADREST ASSY, FRONT SEAT, RH

main71910-58050-A2iATH10200307-200504

IVORY,TRIM0#

main71910-58080-A0iATH10200504-200804

IVORY,TRIM0#

main71910-58060-A3iATH10..07S200307-200504

71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH

main71930-42020-A0iATH10200307-200706

main71930-52030-A0iATH10200706-200804

main71931-42020-A0iATH10200307-200804

71H75BCOVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEATBACK FRAME)

main71875-58050iATH10..07S200307-200504

71H76ACOVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEATBACK FRAME)

main71876-58030-A0iATH10..07S200307-200504

main71876-58040iATH10200504-200804

72497FCOVER, VERTICAL ADJUSTER BRACKET, OUTER

main72497-58010iATH10..07S200307-200504

72498ECOVER, VERTICAL ADJUSTER BRACKET

main72498-58010iATH10..07S200307-200504

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85821CMOTOR ASSY, POWER SEAT

main85801-58020iATH10..07S200307-200504

main85801-58030iATH10..07S200307-200504

main85801-58040iATH10..07S200307-200504

7179358010PLATE, REAR SEAT UNDER BOARD SET, REAR CENTER RH

main71793-58010

9011005011

main90110-05011

9011005012

main90110-05012

9011005013

main90110-05013

9011910921

main90119-10921

9014880062

main90148-80062

9016740044

main90167-40044

9016740048

main90167-40048

9046315003

main90463-15003

9046709118

main90467-09118

9353054010

main93530-54010

9353055016

main93530-55016

9354055012

main93540-55012

34 parts on this diagram · 8 diagrams in section
