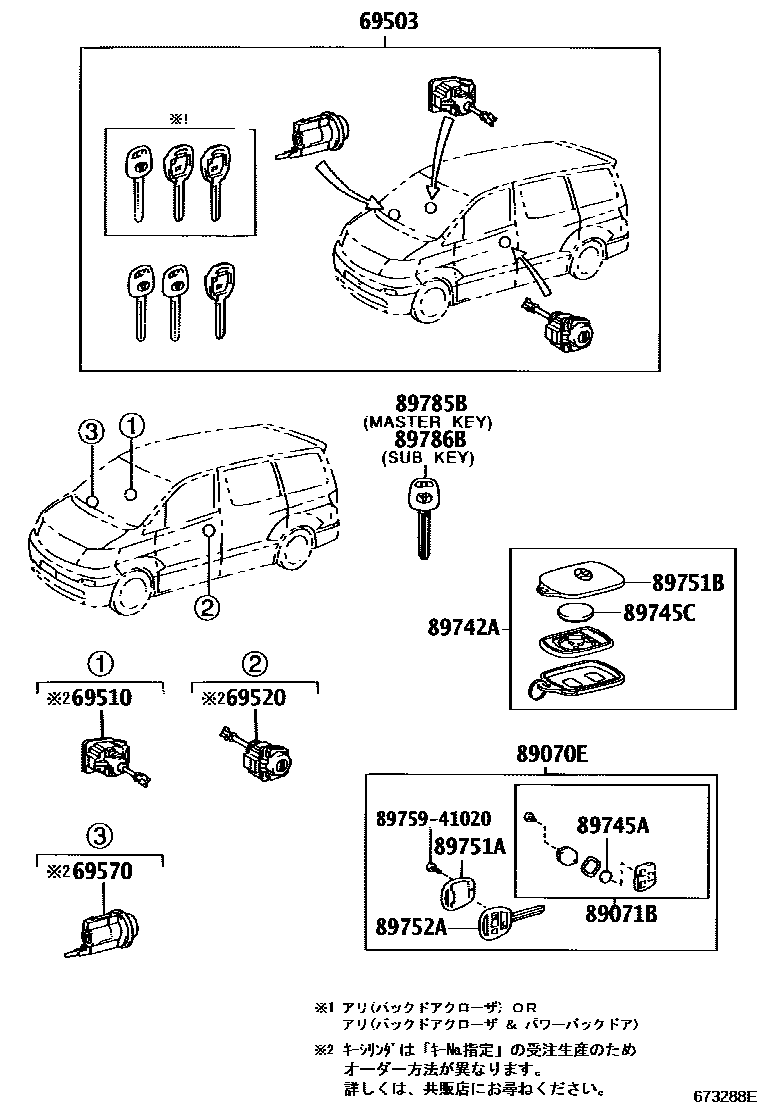

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-58090supersedes 69005-58070iATH10200307-200504

main69005-58110supersedes 69005-58070iATH10200311-200504

main69005-58160supersedes 69005-58140iATH10200504-200701

main69005-58161supersedes 69005-58141iATH10200702-200803

main69005-58170supersedes 69005-58140iATH10200504-200701

main69005-58171supersedes 69005-58141iATH10200702-200803

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-58010iATH10200307

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-58010iATH10200307

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-33120iATH10200307-200804

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-44210supersedes 89070-58260iATH10200504-200702

main89070-58130supersedes 89070-58080iATH10200307-200504

main89070-58330supersedes 89070-58310iATH10200702

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-44010×2supersedes 89071-26020iATH10200504

main89071-58030supersedes 89071-58060iATH10200307-200504

89742ATRANSMITTER, DOOR CONTROL

main89742-28120×2iATH10200307-200504

main89742-58030×2iATH10200504-200701

89745ABATTERY, TRANSMITTER

main89745-48030×2iATH10200307-200504

89745CBATTERY, TRANSMITTER

main89745-48030iATH10200307-200504

main89745-50010×2iATH10200307-200504

main89745-50020×2iATH10200504-200804

89751ACOVER, TRANSMITTER HOUSING

main89751-26010×2iATH10200504-200702

main89751-28070×2iATH10200702

main89751-50010×2iATH10200307-200504

89751BCOVER, TRANSMITTER HOUSING

main89751-44050×2iATH10200307-200504

main89751-58010×2iATH10200504-200804

89752ACASE, TRANSMITTER HOUSING

main89752-28070supersedes 89752-28050iATH10200702-200711

main89752-28071supersedes 89752-28050iATH10200711-200803

main89752-33020supersedes 89752-28050iATH10200307-200504

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iATH10200307

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iATH10200307

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

15 parts on this diagram · 2 diagrams in section
