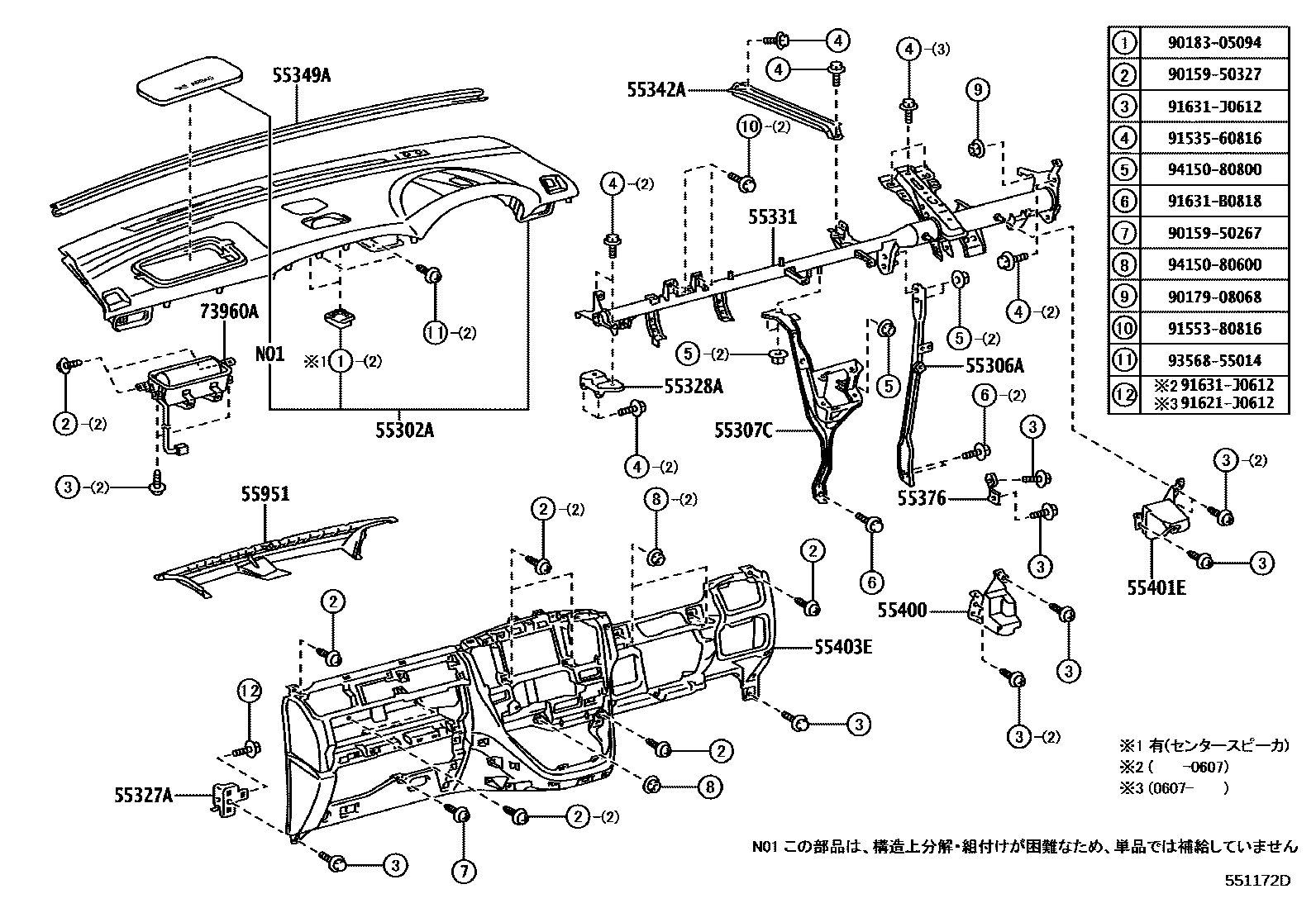

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
ORCHID BROWN,TRIM0#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55327ASTAY, INSTRUMENT PANEL, NO.2
55328ASTAY, INSTRUMENT PANEL, NO.3
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55349ACUSHION, INSTRUMENT PANEL
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55400PAD ASSY, INSTRUMENT PANEL SAFETY
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
55951NOZZLE, DEFROSTER, FRONT
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9015950267
main90159-50267
9015950327
main90159-50327
9017908068
main90179-08068
9018305094
main90183-05094
9153560816
main91535-60816
9155380816
main91553-80816
91621J0612
main91621-J0612
91631B0818
main91631-B0818
91631J0612
main91631-J0612
9356855014
main93568-55014
9415080600
main94150-80600
9415080800
main94150-80800
26 parts on this diagram · 5 diagrams in section
