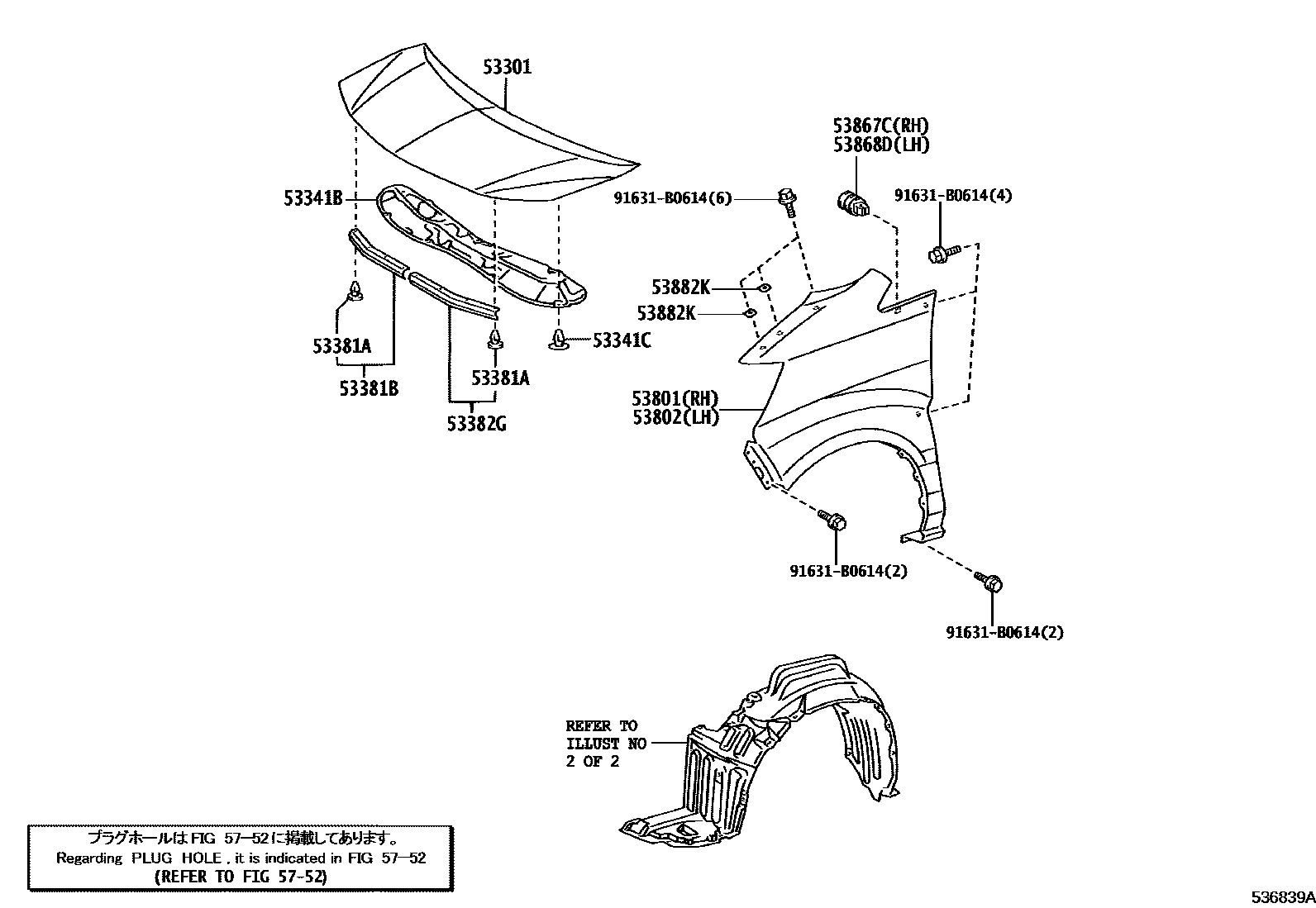

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-58010iATH10200307-200804

53341BINSULATOR, HOOD

main53341-58020iATH10200307

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×7iATH10200307

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iATH10200307

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-58010iATH10200307

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53381-58020iATH10200307

53801FENDER SUB-ASSY, FRONT RH

main53811-58010iATH10200307

53802FENDER SUB-ASSY, FRONT LH

main53802-58010iATH10200504

main53812-58010iATH10200307-200504

53867CRETAINER, FRONT SIDE PANEL, RH

main53867-58030iATH10200307

53868DRETAINER, FRONT SIDE PANEL, LH

main53867-58030iATH10200307

53882KSEAL, FRONT FENDER

main53882-26010×4iATH10200307

5752HOLE PLUG

→ Go to FIG 57-52

91631B0614

main91631-B0614

13 parts on this diagram · 2 diagrams in section
