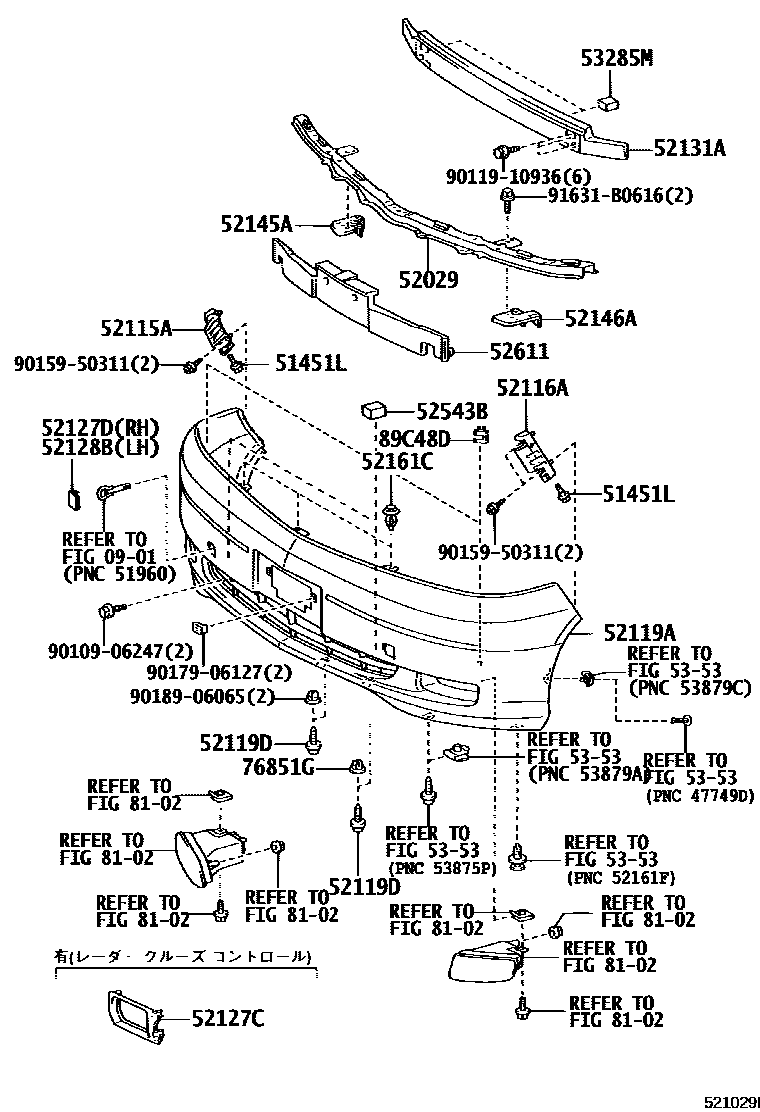

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

51451LBOLT, NO.1

main90109-06189×2iATH10200307-200804

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-58020iATH10200307-200804

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-58010iATH10200307-200804

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-58010iATH10200307-200804

52119ACOVER, FRONT BUMPER

main52119-58080-B0iATH10200307-200504

SILVER ME.,1C0

main52119-58080-B1iATH10200504-200804

SILVER ME.,1F7

main52119-58080-G0iATH10200504-200804

LT.OLIVE M.M.,6T1

main52119-58080-K0iATH10200307-200504

LT.PURPLE ME.,942

main52119-58100-A0iATH10200307-200504

main52119-58100-A1supersedes 52119-58080-A1iATH10200706-200804

main52119-58100-B0iATH10200307-200504

main52119-58100-B1iATH10200504-200804

main52119-58100-C0supersedes 52119-58080-C0iATH10200504-200804

main52119-58100-G0iATH10200504-200804

main52119-58100-J0supersedes 52119-58080-J0iATH10200504-200804

main52119-58100-K0iATH10200307-200504

52119DSCREW, NO.1

main90159-60383×4iATH10200307-200804

52127CCOVER, FRONT BUMPER HOLE

main52127-58050iATH10200504-200804

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-58040-A0iATH10200307-200706

WHITE PM.,042

main52127-58040-A1iATH10200706-200804

WHITE PEARL CS.,070

main52127-58040-B0iATH10200307-200504

SILVER ME.,1C0

main52127-58040-B1iATH10200504-200804

SILVER ME.,1F7

main52127-58040-C0iATH10200307-200804

BLACK MC.,209

main52127-58040-G0iATH10200504-200804

LT.OLIVE M.M.,6T1

main52127-58040-J0iATH10200307-200804

PALE BLUE M.M.,8R0

main52127-58040-K0iATH10200307-200504

LT.PURPLE ME.,942

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-58030-A0iATH10200307-200706

WHITE PM.,042

main52128-58030-A1iATH10200706-200804

WHITE PEARL CS.,070

main52128-58030-B0iATH10200307-200504

SILVER ME.,1C0

main52128-58030-B1iATH10200504-200804

SILVER ME.,1F7

main52128-58030-C0iATH10200307-200804

BLACK MC.,209

main52128-58030-G0iATH10200504-200804

LT.OLIVE M.M.,6T1

main52128-58030-J0iATH10200307-200804

PALE BLUE M.M.,8R0

main52128-58030-K0iATH10200307-200504

LT.PURPLE ME.,942

52131AREINFORCEMENT, FRONT BUMPER

main52131-58010iATH10200307-200804

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-58010iATH10200307-200804

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-58010iATH10200307-200804

52161CPIECE, FRONT BUMPER

main52161-16010×3iATH10200307-200804

52543BSEAL, FRONT BUMPER

main52543-58010×2iATH10200307-200804

52611ABSORBER, FRONT BUMPER ENERGY

main52601-58010iATH10200307

53285MSEAL, RADIATOR SIDE AIR, RH

main53285-58020×2iATH10200307

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

76851GGROMMET, SCREW, NO.1

main90189-06006×2iATH10200307-200804

8102FOG LAMP

→ Go to FIG 81-02

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-44010×2iATH10200307-200804

9010906247

main90109-06247

9011910936

main90119-10936

9015950311

main90159-50311

9017906127

main90179-06127

9018906065

main90189-06065

91631B0616

main91631-B0616

27 parts on this diagram · 1 diagram in section
