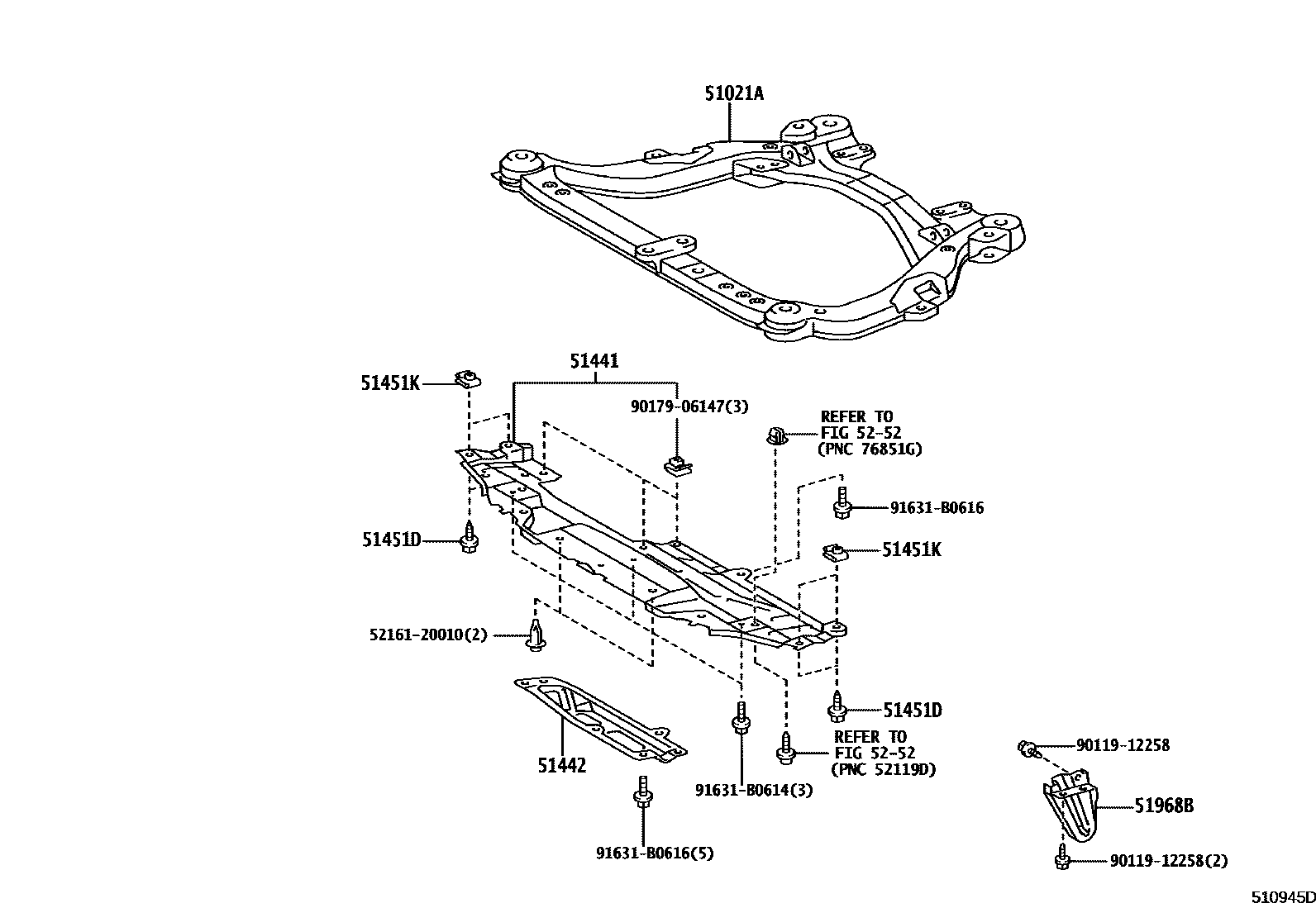

SUSPENSION CROSSMEMBER & UNDER COVER

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51100-58030iATH10200307

51441COVER, ENGINE UNDER, NO.1

main51440-58010iATH10200307

51442COVER, ENGINE UNDER, NO.2

main51442-28100iATH10200307

51451DSCREW, NO.1

main90159-60477×4iATH10200307-200804

51451KGROMMET, SCREW, NO.1

main90189-06131×4iATH10200307-200804

51968BHOOK, TRANSPORT, REAR LH

main51096-44010iATH10200307

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

5216120010CUSHION, REAR BUMPER GUARD, NO.1

main52161-20010

9011912258

main90119-12258

9017906147

main90179-06147

91631B0614

main91631-B0614

91631B0616

main91631-B0616

12 parts on this diagram · 1 diagram in section
