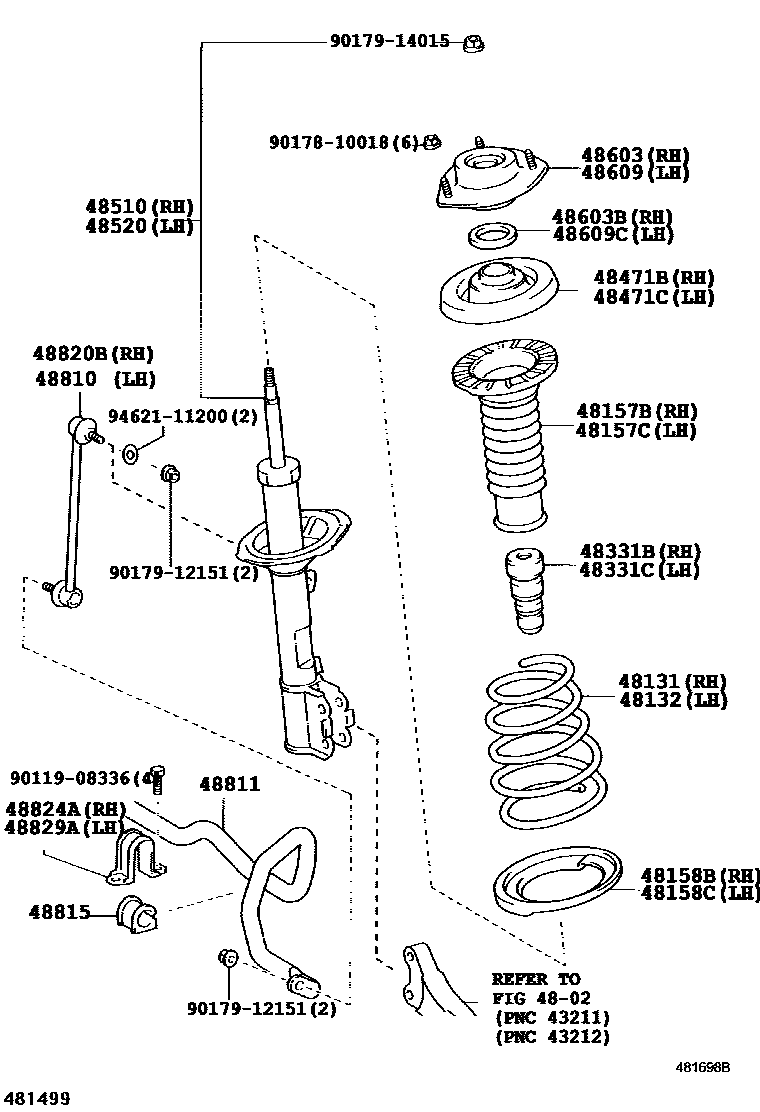

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-58090iATH10200307-200502

main48131-58170iATH10200502

48132SPRING, FRONT COIL, LH

main48131-58090iATH10200307-200502

main48131-58170iATH10200502

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-28020iATH10200307

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-28020iATH10200307

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-48020iATH10200307

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-48020iATH10200307

48331BBUMPER, FRONT SPRING, RH

main48331-28040iATH10200307

48331CBUMPER, FRONT SPRING, LH

main48331-28040iATH10200307

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-41010iATH10200307

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-41010iATH10200307

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59825iATH10200307-200504

main48510-80276iATH10200504-200804

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-59095iATH10200307-200504

main48520-80066iATH10200504-200804

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-58010iATH10200307

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iATH10200307

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-58010iATH10200307

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iATH10200307

48810LINK ASSY, FRONT STABILIZER, LH

main48820-58010iATH10200307

48811BAR, STABILIZER, FRONT

main48811-28210iATH10200307

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-28150×2iATH10200307

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-58010iATH10200307

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-28190iATH10200307

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-28190iATH10200307

9011908336

main90119-08336

9017810018

main90178-10018

9017912151

main90179-12151

9017914015

main90179-14015

9462111200

main94621-11200

28 parts on this diagram · 1 diagram in section
