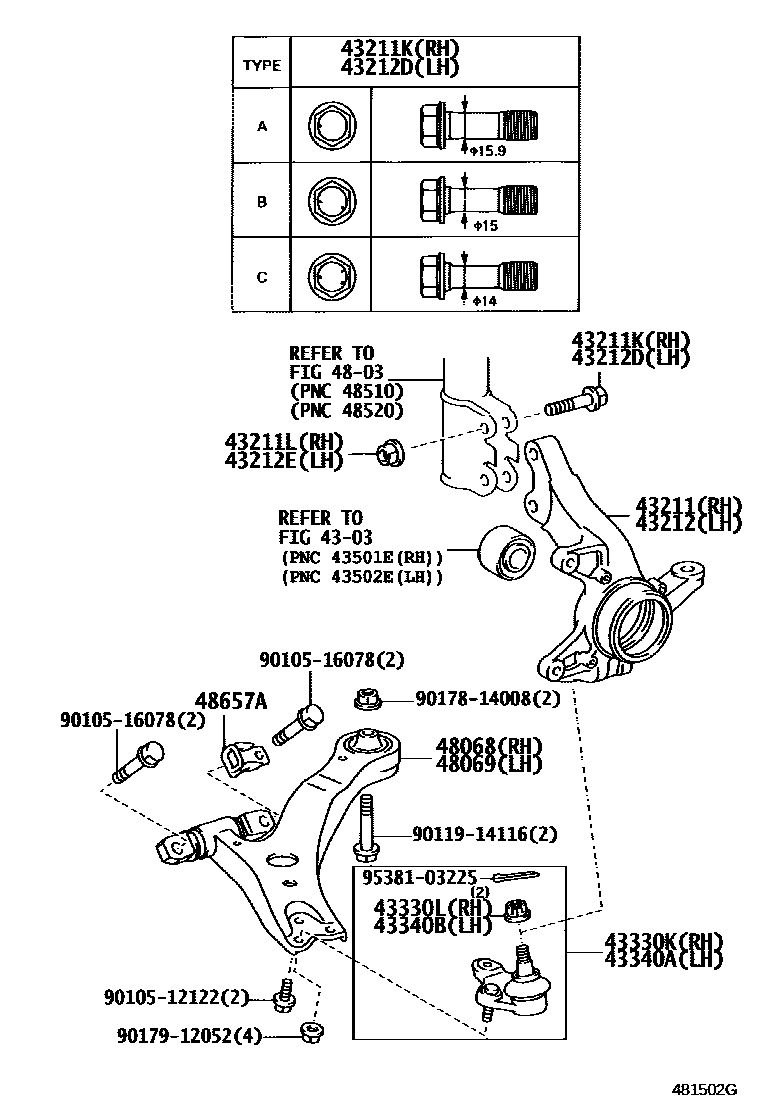

FRONT AXLE ARM & STEERING KNUCKLE

4303FRONT AXLE HUB

→ Go to FIG 43-03

43211KNUCKLE, STEERING, RH

main43211-58010iATH10200307-200804

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009×2iATH10200307

main90105-17010iATH10200307

main90105-17011iATH10200307

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iATH10200307

43212KNUCKLE, STEERING, LH

main43212-58010iATH10200307-200804

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009×2iATH10200307

main90105-17010iATH10200307

main90105-17011iATH10200307

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iATH10200307

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iATH10200307-200804

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iATH10200307

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iATH10200307

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iATH10200307

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-58010iATH10200307

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-58010iATH10200307

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iATH10200307

9010512122

main90105-12122

9010516078

main90105-16078

9011914116

main90119-14116

9017814008

main90178-14008

9017912052

main90179-12052

9538103225

main95381-03225

21 parts on this diagram · 1 diagram in section
