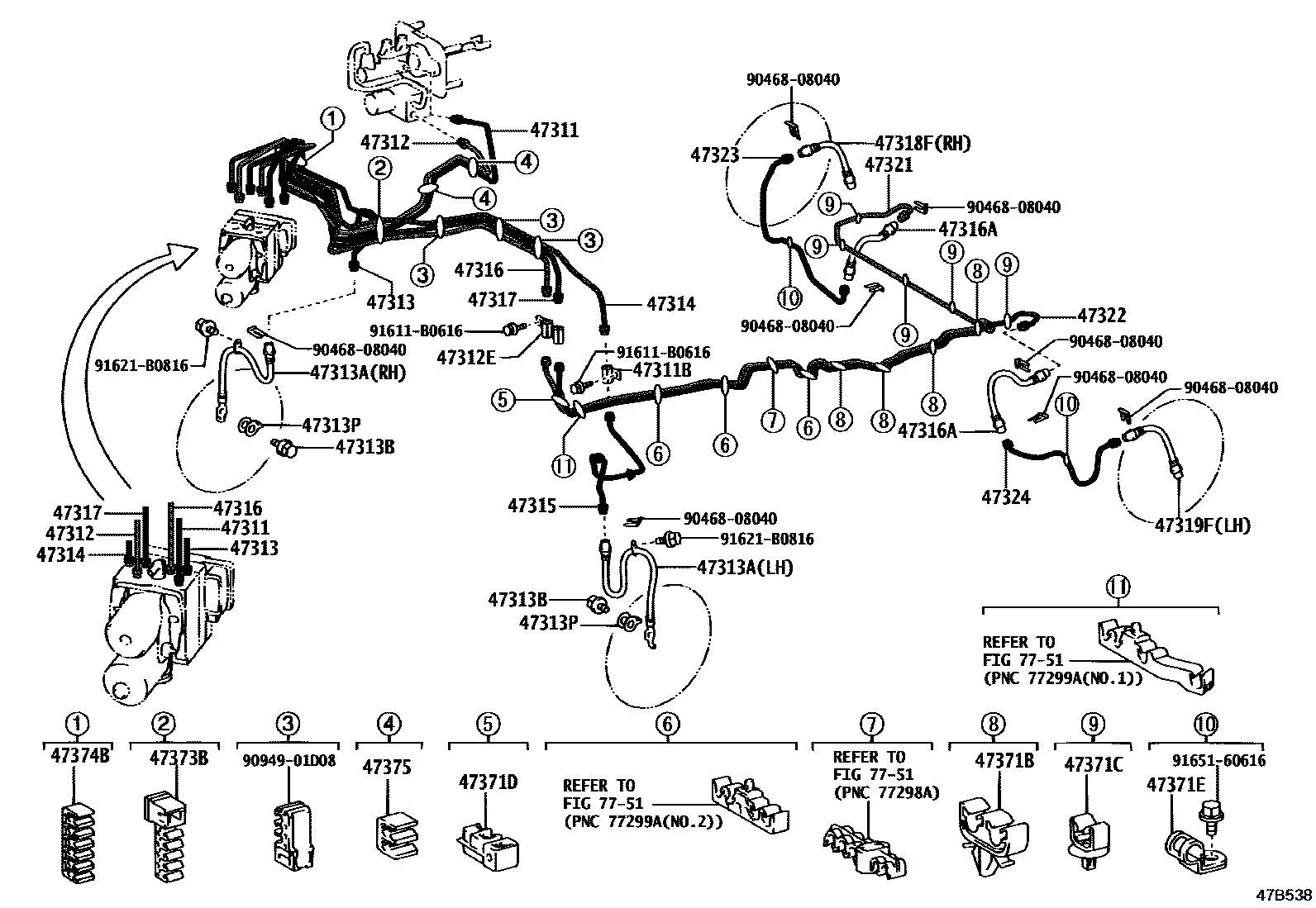

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-58030iATH10200307-200706

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10144iATH10200307

47312TUBE, FRONT BRAKE, NO.2

main47312-58030iATH10200307-200706

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10158iATH10200307

47313TUBE, FRONT BRAKE, NO.3

main47313-58020iATH10200307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D28iATH10200307

main90947-02D29iATH10200307

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iATH10200307

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iATH10200307

47314TUBE, FRONT BRAKE, NO.4

main47314-58030iATH10200307

47315TUBE, FRONT BRAKE, NO.5

main47315-58010iATH10200307

47316TUBE, FRONT BRAKE, NO.6

main47316-58030iATH10200307-200706

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02D30×2iATH10200307

47317TUBE, FRONT BRAKE, NO.7

main47317-58030iATH10200307-200706

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02D24iATH10200307

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02D24iATH10200307

47321TUBE, REAR BRAKE, NO.1

main47321-58010iATH10200307-200804

47322TUBE, REAR BRAKE, NO.2

main47322-58010iATH10200307-200804

47323TUBE, REAR BRAKE, NO.3

main47323-28340iATH10200307

47324TUBE, REAR BRAKE, NO.4

main47324-28240iATH10200307

47371BCLAMP, BRAKE TUBE, NO.6

main90469-07012×4iATH10200307-200804

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01A84×5iATH10200307

47371DCLAMP, BRAKE TUBE, NO.8

main77299-32030iATH10200307-200804

47371ECLAMP, BRAKE TUBE, NO.9

main90461-08715×2iATH10200307

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D06iATH10200307-200706

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01B10iATH10200307-200706

47375CLAMP, BRAKE TUBE, NO.5

main90949-01972×2iATH10200307-200706

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046808040

main90468-08040

9094901D08

main90949-01D08

91611B0616

main91611-B0616

91621B0816

main91621-B0816

9165160616

main91651-60616

32 parts on this diagram · 2 diagrams in section
