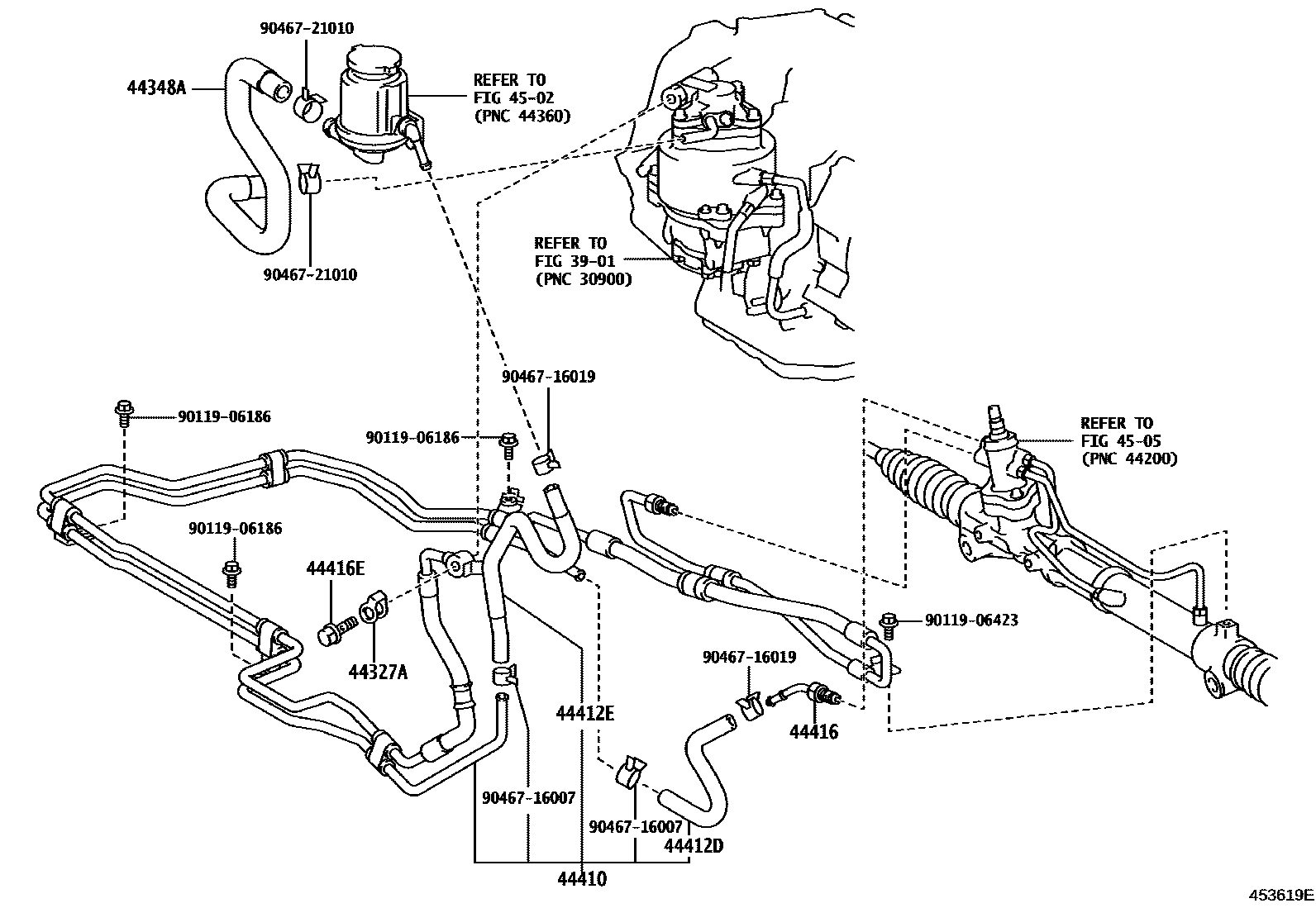

POWER STEERING TUBE

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iATH10200307-200804

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-58010iATH10200307-200804

44410TUBE ASSY, PRESSURE FEED

main44410-58040iATH10200307-200501

main44410-58041iATH10200502-200804

44412DHOSE, RETURN, NO.1

main44412-58030iATH10200307-200804

44412EHOSE, RETURN, NO.2

main44412-58040iATH10200307-200804

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28370iATH10200307

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iATH10200307

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906186

main90119-06186

9011906423

main90119-06423

9046716007

main90467-16007

9046716019

main90467-16019

9046721010

main90467-21010

15 parts on this diagram · 1 diagram in section
