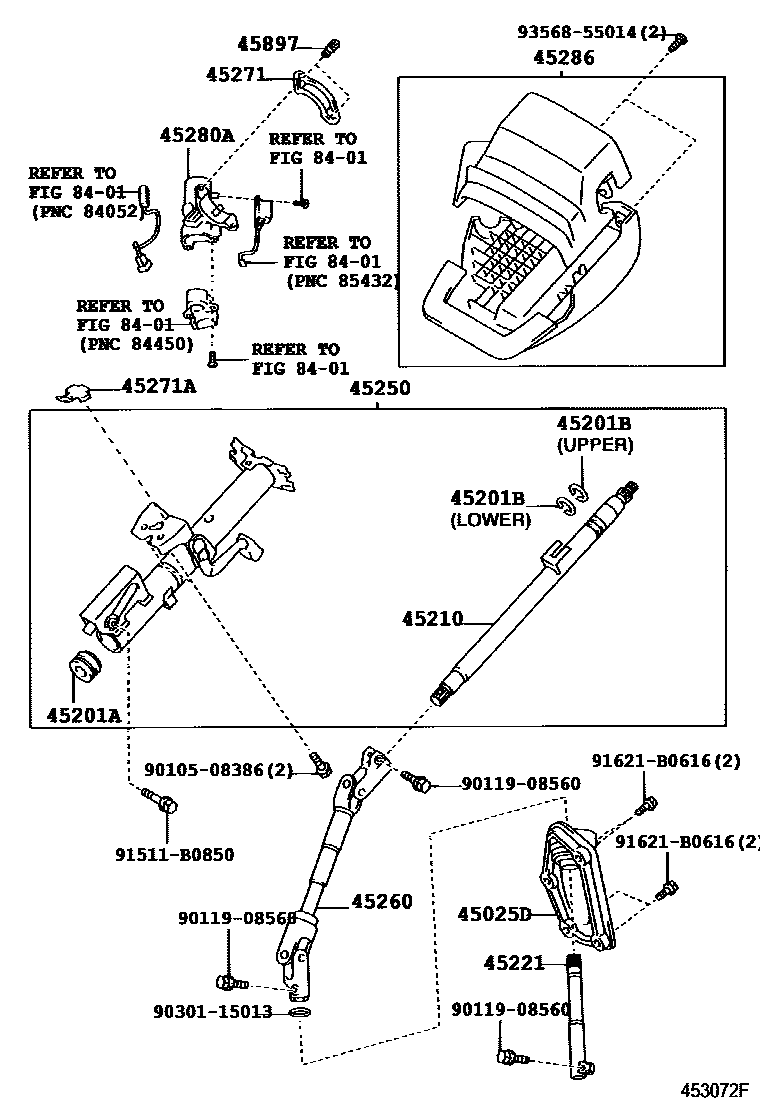

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-58010iATH10200307

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-28010iATH10200307

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iATH10200307

main90520-17269iATH10200307

45210SHAFT ASSY, STEERING MAIN

main45210-28130iATH10200307

45221SHAFT, STEERING INTERMEDIATE

main45221-58010iATH10200307

45250COLUMN ASSY, STEERING

main45250-58010iATH10200307

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-58010iATH10200307-200507

main45260-58011iATH10200508

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iATH10200307

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-52010iATH10200307

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-58010iATH10200307-200804

45286COVER, STEERING COLUMN

main45286-33921-E1iATH10200307

ORCHID BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iATH10200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508386

main90105-08386

9011908560

main90119-08560

9030115013

main90301-15013

91511B0850

main91511-B0850

91621B0616

main91621-B0616

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section
