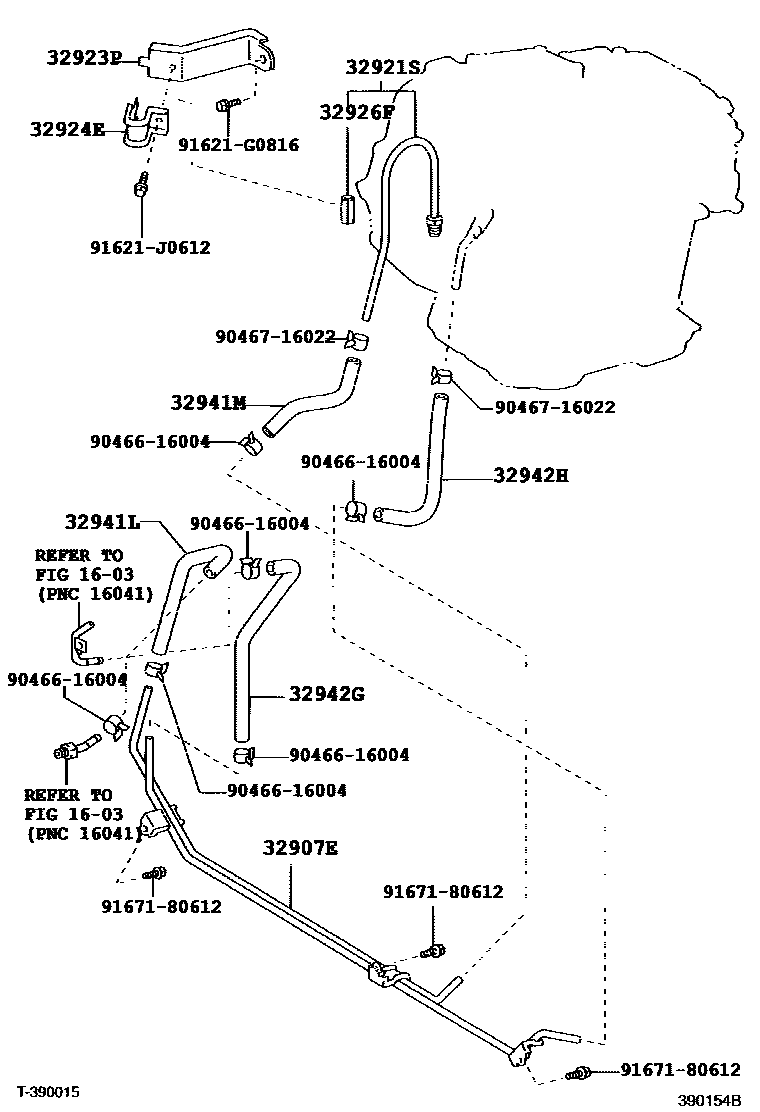

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-58010iATH10200307-200606

main32907-58011iATH10200607

32921STUBE, OIL COOLER INLET

main32921-28290iATH10200307-200804

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-28120iATH10200307

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-20080iATH10200307

32926FCUSHION, OIL COOLER TUBE

main32926-30020iATH10200307

32941LHOSE, OIL COOLER INLET, NO.1

main32941-58010iATH10200307-200504

main32941-58020iATH10200504

32941MHOSE, OIL COOLER INLET, NO.2

main90445-17110iATH10200307

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-58010iATH10200307

32942HHOSE, OIL COOLER OUTLET, NO.2

main90445-17117iATH10200307

9046616004

main90466-16004

9046716022

main90467-16022

91621G0816

main91621-G0816

91621J0612

main91621-J0612

9167180612

main91671-80612

15 parts on this diagram · 1 diagram in section
