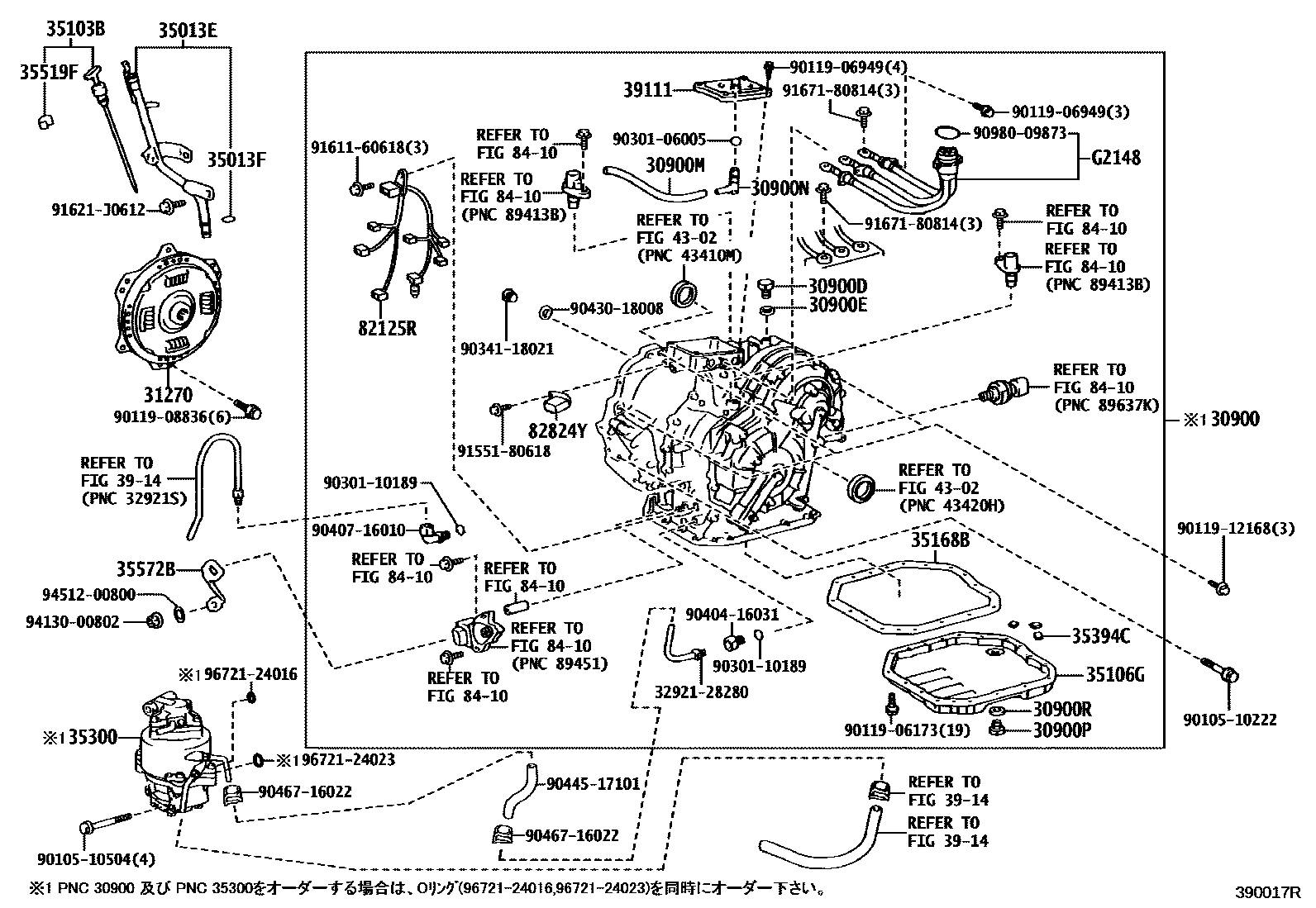

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1���� ���� ���� 0002 1�� ���� ����

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-58030iATH10200307-200804

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18006iATH10200307-200511

main90341-18061iATH10200511-200804

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iATH10200307-200804

30900MHOSE(FOR TRANSAXLE)

main35121-58010iATH10200307

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03164iATH10200307

30900PPLUG, DRAIN(HEV)

main90341-18016iATH10200307-200804

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iATH10200307-200804

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28010iATH10200307

35013ETUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28160iATH10200307

35013FRING, O(FOR TRANSEAXLE GAGE)

main90301-09173iATH10200307

35103BGAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-28180iATH10200307

35106GPAN SUB-ASSY, TRANSAXLE OIL

main35106-63010iATH10200307

35168BGASKET, TRANSAXLE OIL PAN

main35168-63010iATH10200307

35300PUMP ASSY, OIL W/MOTOR

main35300-28012iATH10200307

35394CMAGNET, OIL CLEANER

main35394-30011×3iATH10200307

35519FLABEL, AUTOMATIC TRANS INFORMATION

main35519-63010iATH10200307

35572BLEVER, TRANSMISSION, OUTER

main35572-28110iATH10200307-200804

39111COVER, POWER CABLE

main39111-28010×2iATH10200307

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82125RWIRE, TRANSMISSION

main82125-28190iATH10200307-200804

82824YCONNECTOR, WIRING HARNESS(FOR GENERATOR)

main82824-47110×2iATH10200307

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

G2148CABLE, GENERATOR

mainG114828011×2iATH10200307

3292128280TUBE, OIL COOLER INLET, NO.1

main32921-28280

9010510222

main90105-10222

9010510504

main90105-10504

9011906173

main90119-06173

9011906949

main90119-06949

9011908836

main90119-08836

9011912168

main90119-12168

9030106005

main90301-06005

9030110189

main90301-10189

9034118021

main90341-18021

9040416031

main90404-16031

9040716010

main90407-16010

9043018008

main90430-18008

9044517101

main90445-17101

9046716022

main90467-16022

9098009873

main90980-09873

9155180618

main91551-80618

9161160618

main91611-60618

91621J0612

main91621-J0612

9167180814

main91671-80814

9413000802

main94130-00802

9451200800

main94512-00800

9672124016

main96721-24016

9672124023

main96721-24023

48 parts on this diagram · 2 diagrams in section
