Toyota ALPHARD HV — ALTERNATOR
G1280MOTOR ASSY, HYBRID VEHICLE STARTER GENERATOR
2819128021STAY, STARTER
827152J270BRACKET,WIRING HARNESS CLAMP
827152J280BRACKET,WIRING HARNESS CLAMP
827152J290BRACKET,WIRING HARNESS CLAMP
8271533140BRACKET,WIRING HARNESS CLAMP
9010510361
9010510381
9011906872
9011910906
9014880037
9098011939
9151261065
91621J0612
91641H0820

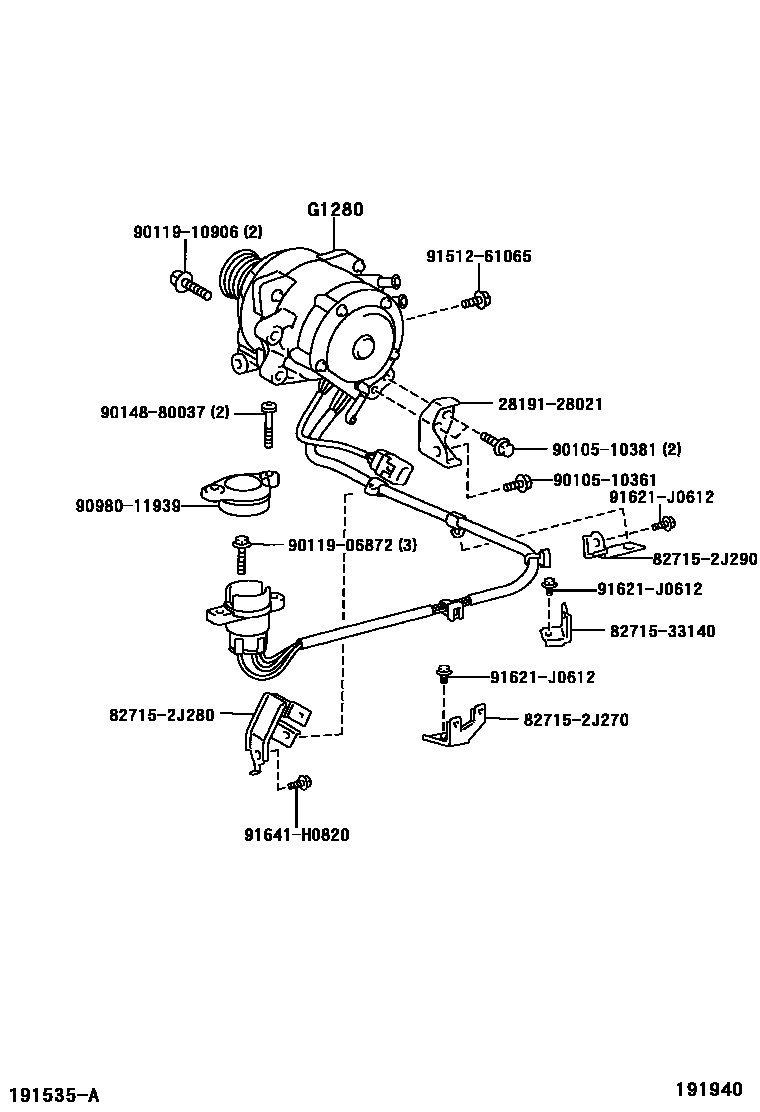

15 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota ALPHARD HV
This section contains 15 genuine Toyota parts for the ALTERNATOR system of the Toyota ALPHARD HV. Key components include: MOTOR ASSY, HYBRID VEHICLE STARTER GENERATOR, STAY, STARTER, BRACKET,WIRING HARNESS CLAMP.
