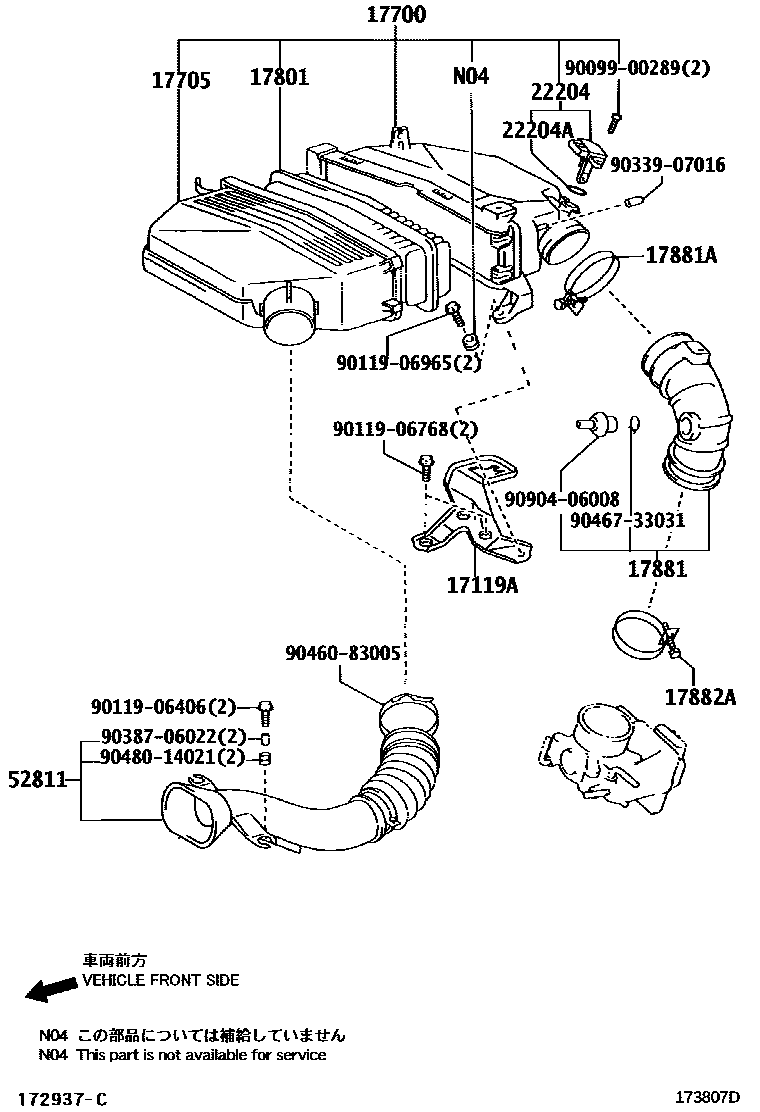

AIR CLEANER

17119ABRACKET, AIR CLEANER

main17119-28010i2AZFXE..ATH10200307

17700CLEANER ASSY, AIR

main17700-28091i2AZFXE..ATH10200307-200412

sub17700-28092

main17700-28092i2AZFXE..ATH10200501

17705CAP SUB-ASSY, AIR CLEANER

main17705-28050i2AZFXE..ATH10200307-200412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-28010i2AZFXE..ATH10200307-200412

17881HOSE, AIR CLEANER, NO.1

main17881-28110i2AZFXE..ATH10200307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830i2AZFXE..ATH10200307

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i2AZFXE..ATH10200307

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i2AZFXE..ATH10200307-200412

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i2AZFXE..ATH10200307

52811DUCT, COOL AIR INTAKE, NO.1

main52810-58020iATH10200307

9009900289

main90099-00289

9011906406

main90119-06406

9011906768

main90119-06768

9011906965

main90119-06965

9033907016

main90339-07016

9038706022

main90387-06022

9046083005

main90460-83005

9046733031

main90467-33031

9048014021

main90480-14021

9090406008

main90904-06008

20 parts on this diagram · 1 diagram in section
