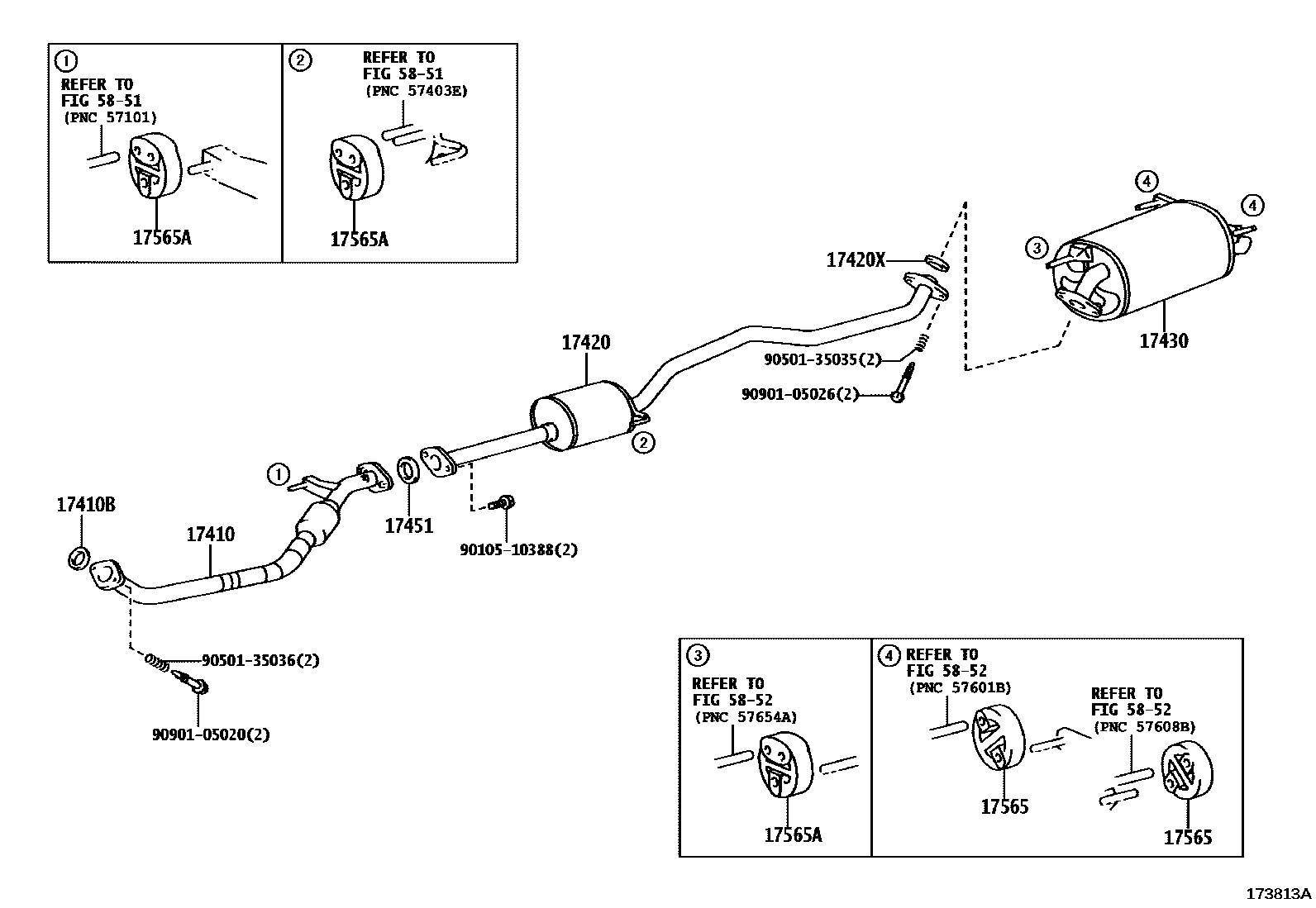

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-28470i2AZFXE..ATH10200307

17410BGASKET, EXHAUST PIPE

main17451-22070i2AZFXE..ATH10200307

17420PIPE ASSY, EXHAUST, CENTER

main17420-28390i2AZFXE..ATH10200307

17420XGASKET, EXHAUST PIPE, CENTER

main17451-21010i2AZFXE..ATH10200609

main17451-54010i2AZFXE..ATH10200307-200608

17430PIPE ASSY, EXHAUST, TAIL

main17405-20030i2AZFXE..ATH10200307-200705

main17405-20031i2AZFXE..ATH10200706

17451GASKET, EXHAUST PIPE

main90917-06047i2AZFXE..ATH10200307

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-15140×2i2AZFXE..ATH10200307

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-74320×3i2AZFXE..ATH10200307

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9010510388

main90105-10388

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 1 diagram in section
