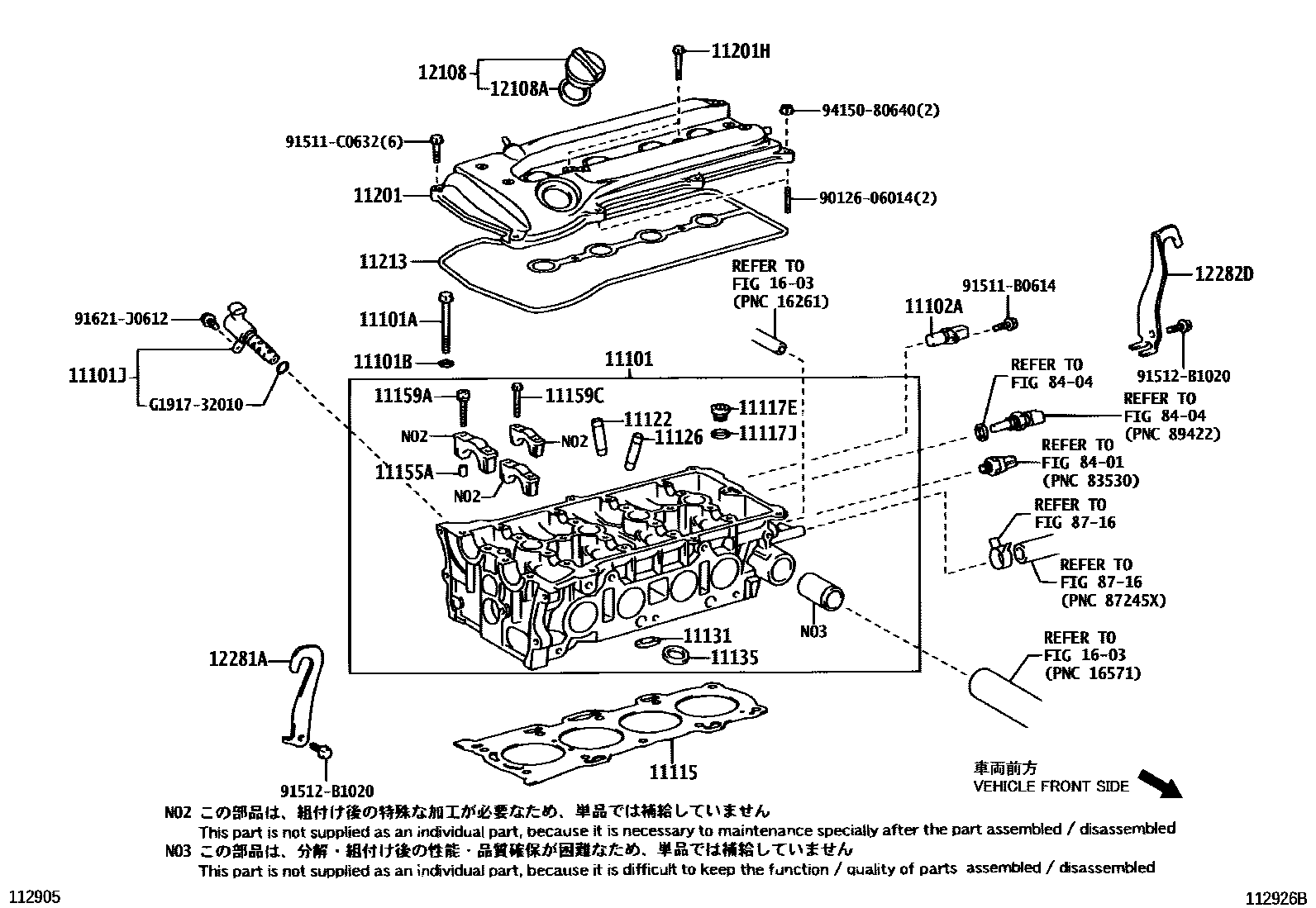

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
11101ABOLT(FOR CYLINDER HEAD SET)
sub90910-02184
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-28010
11102ASENSOR, CAMSHAFT POSITION
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
1603
8401
8404
8716
9012606014
main90126-06014
91511B0614
main91511-B0614
91511C0632
main91511-C0632
91512B1020
main91512-B1020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010
33 parts on this diagram · 1 diagram in section
