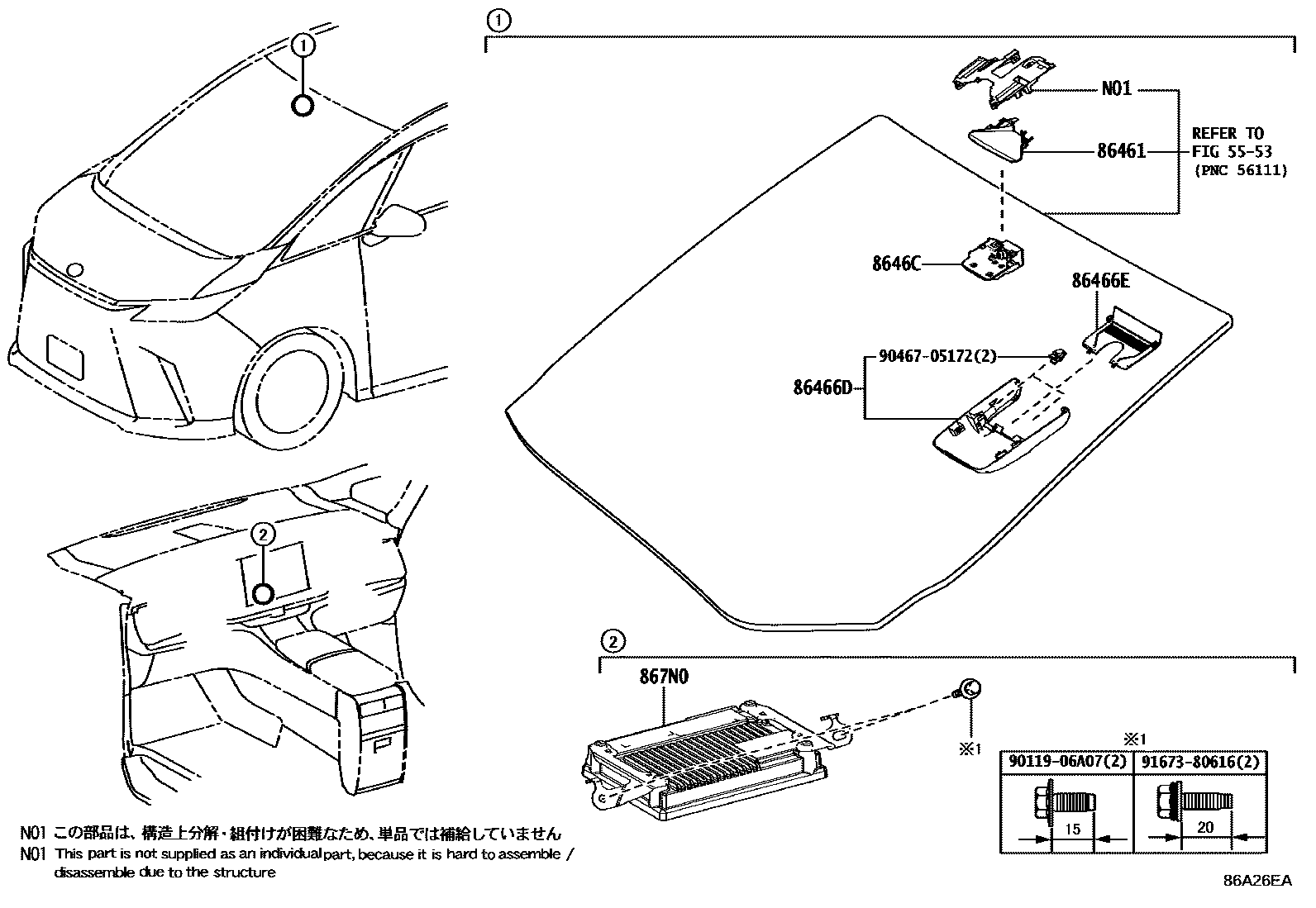

PRE-COLLISION SYSTEM

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

86461HOOD, FORWARD RECOGNITION

main86461-V2010iAAWH1#,TAWH15202311

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-V2010iAAWH1#,TAWH15202311

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-V2020iAAWH1#,TAWH15202311

8646CCAMERA, FORWARD RECOGNITION

main8646C-V2141supersedes 8646C-V2131iAAWH1#,TAWH15202311-202508

867N0COMPUTER ASSY, DRIVE RECORDER

main867N0-58020iAAWH1#,TAWH15202311

9011906A07

main90119-06A07

9046705172

main90467-05172

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
