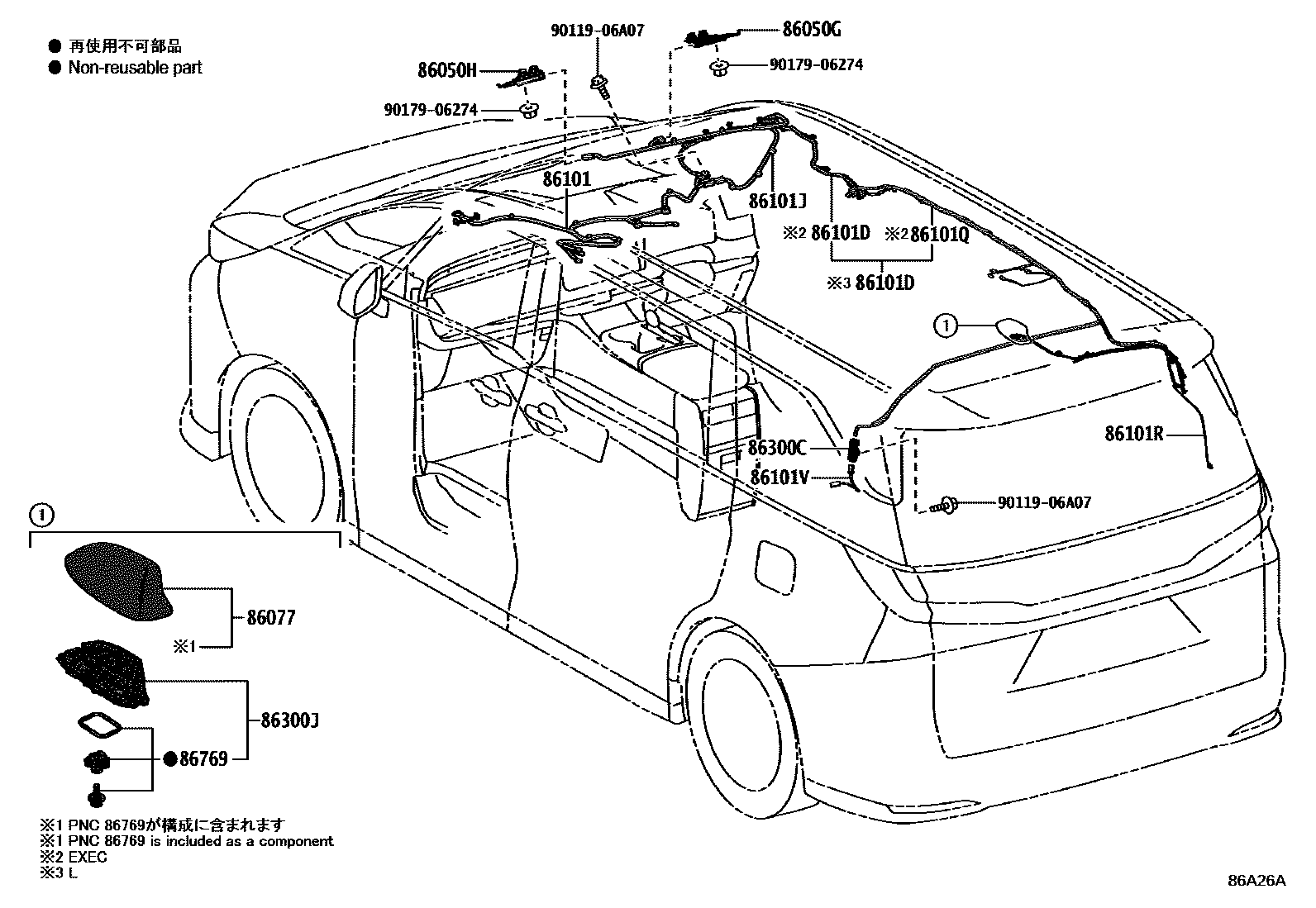

ANTENNA

86050GANTENNA ASSY, TELEVISION, NO.1 RH

main86050-53180iAAWH1#,TAWH15202311

86050HANTENNA ASSY, TELEVISION, NO.1 LH

main86050-53190iAAWH1#,TAWH15202311

86077COVER KIT, ANTENNA

main86077-48060-A1iAAWH1#,TAWH15202311

SONIC QUARTZ,085

main86077-48060-B0iAAWH1#,TAWH15202311

SONIC TITANIUM,1J7

main86077-48060-C0iAAWH1#,TAWH15202311

GRAPHITE BLACK GF.,223

main86077-48060-D1iAAWH1#,TAWH15202311

SONIC AGATE,3U3

86101CORD SUB-ASSY, ANTENNA

main86101-V2090iAAWH1#,TAWH15202311

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86159-V2060iAAWH1#,TAWH15..L202311

main86159-V2150iAAWH1#,TAWH15..EXEC202311

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86765-V2010iAAWH1#,TAWH15202311

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86159-V2160iAAWH1#,TAWH15..EXEC202311

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86808-V2030iAAWH1#,TAWH15202311

86101VCORD SUB-ASSY, ANTENNA, NO.6

main86101-53G30iAAWH1#,TAWH15202311

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-62040iAAWH1#,TAWH15202311

86300JANTENNA ASSY, ROOF

main86760-30260iAAWH1#,TAWH15202311

86769HOUSING, ROOF ANTENNA

main86769-K0010iAAWH1#,TAWH15202311

9011906A07

main90119-06A07

9017906274

main90179-06274

14 parts on this diagram · 1 diagram in section
