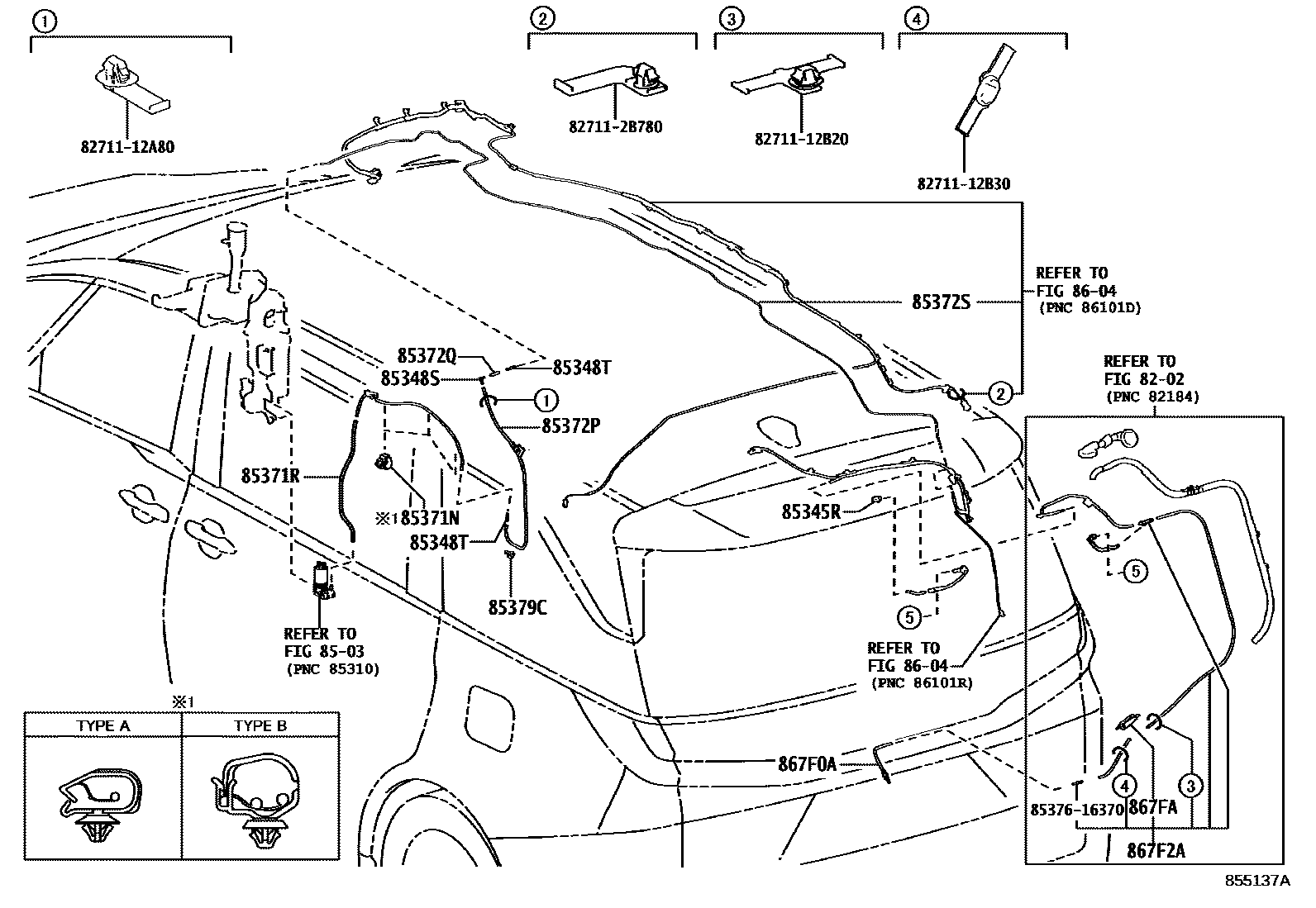

REAR WASHER

8202WIRING & CLAMP

8503WINDSHIELD WASHER

85345RNOZZLE, REAR WASHER

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

main85376-V2070×2i202311

85371NCLAMP, REAR WASHER HOSE

main82711-16790×3i202311

main82711-1E340×3i202311

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85379CGROMMET, REAR WASHER HOSE NO.1

8604ANTENNA

867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1

867F2AHOSE ASSY, CAMERA CLEANER

867FAFILTER, CLEANER HOSE

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8537616370PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

20 parts on this diagram · 2 diagrams in section
