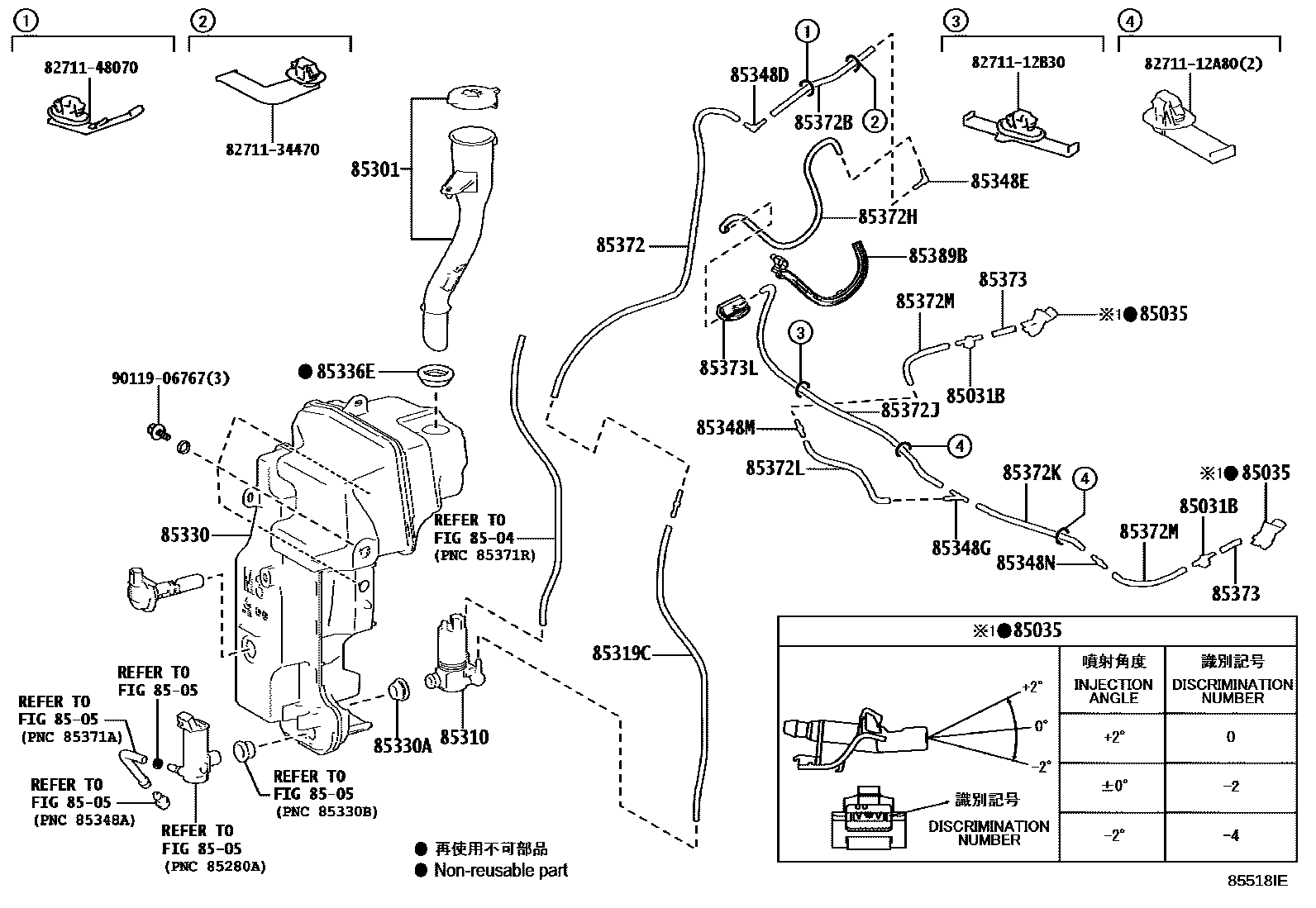

85031BVALVE SUB-ASSY, WASHER

main85321-26020×2i202311

85035NOZZLE SUB-ASSY, WASHER

main85381-20230×2i202311

main85381-20300×2i202311

main85381-20310×2i202311

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-V2030i202311

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-16200i202311

85319CHOSE, WASHER

main90069-46287i202311

85330JAR ASSY, WINDSHIELD WASHER

main85355-V2010i202311

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012×2i202311

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-16230×2i202311

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85376-16370i202311

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85376-16370i202311

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-V2010i202311

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85376-V2070i202311

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85376-V2070i202311

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46210i202311

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46210i202311

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-46210i202311

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90069-46210i202311

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90069-46210i202311

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90069-46210i202311

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90069-46323×2i202311

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46322×2i202311

85373LGROMMET, WASHER

main85373-02110i202311

85389BPROTECTOR, WINDSHIELD WASHER

main85389-V2090i202311

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34470

8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48070

9011906767

main90119-06767
