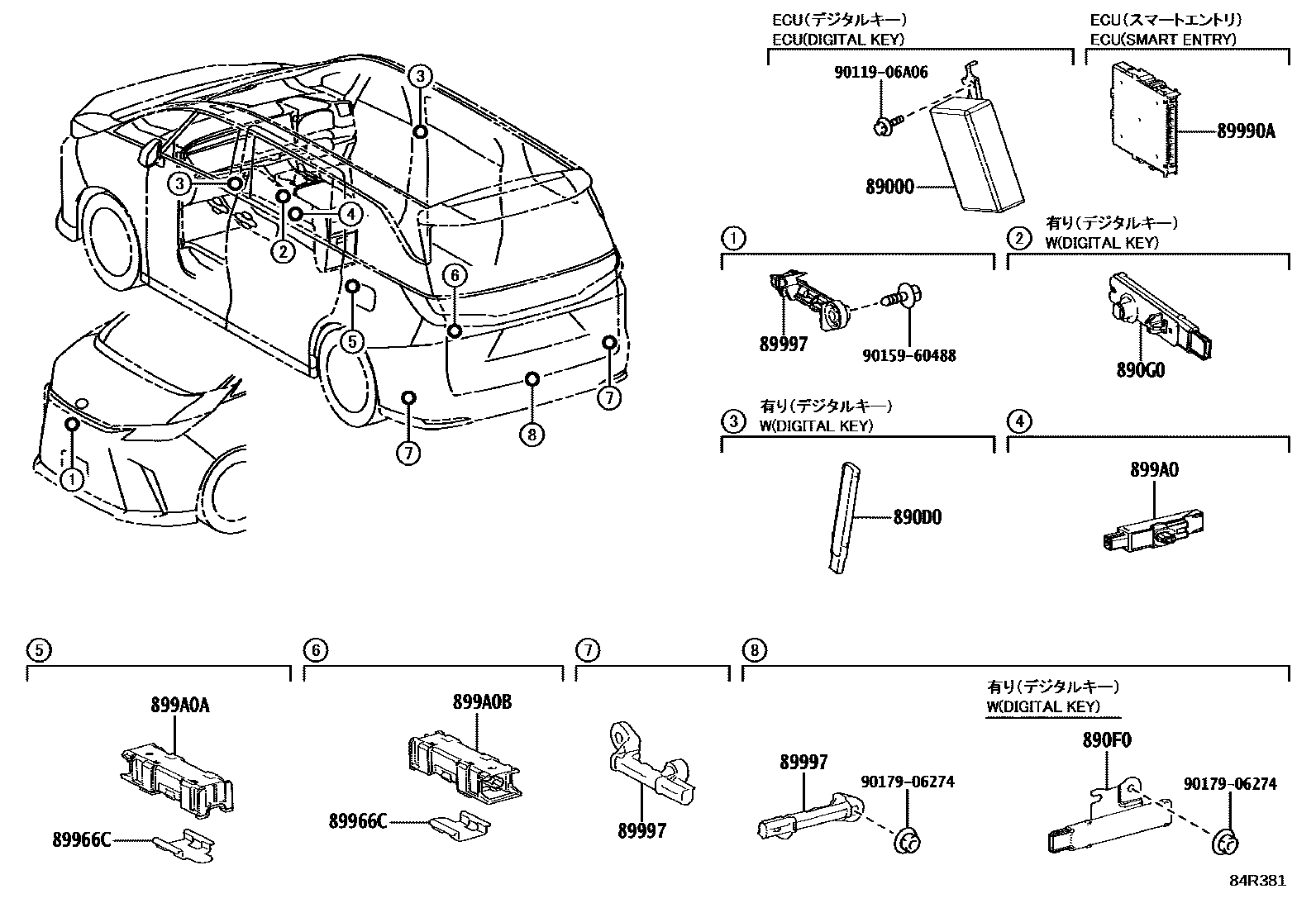

WIRELESS DOOR LOCK

0001 1 0002 1

89000COMPUTER ASSY, DIGITAL KEY

main89000-V2030iAAWH1#,TAWH15..EXEC202311-202312

main89000-V2031iAAWH1#,TAWH15..EXEC202312-202507

main89000-V2050iAAWH1#,TAWH15..L202311-202312

main89000-V2051iAAWH1#,TAWH15..L202312-202507

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-V2010×2iAAWH1#,TAWH15202311-202507

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-V2030iAAWH1#,TAWH15202311-202507

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-V2030iAAWH1#,TAWH15202311-202507

89966CBRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010×2iAAWH1#,TAWH15202311

89990ACOMPUTER ASSY, SMART KEY

main899H0-V2050supersedes 899H0-V2070iAAWH1#..L202311

main899H0-V2060supersedes 899H0-V2080iAAWH1#..EXEC202311

main899H0-V2090supersedes 899H0-V2110iTAWH15..L202311

main899H0-V2100supersedes 899H0-V2120iTAWH15..EXEC202311

89997ANTENNA, ELECTRICAL KEY

main89997-30100×3iAAWH1#,TAWH15202311

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iAAWH1#,TAWH15202311

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-V1010iAAWH1#,TAWH15202311

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-V1010iAAWH1#,TAWH15..L202311

main899A0-V1020iAAWH1#,TAWH15..EXEC202311

9011906A06

main90119-06A06

9015960488

main90159-60488

9017906274

main90179-06274

13 parts on this diagram · 2 diagrams in section
